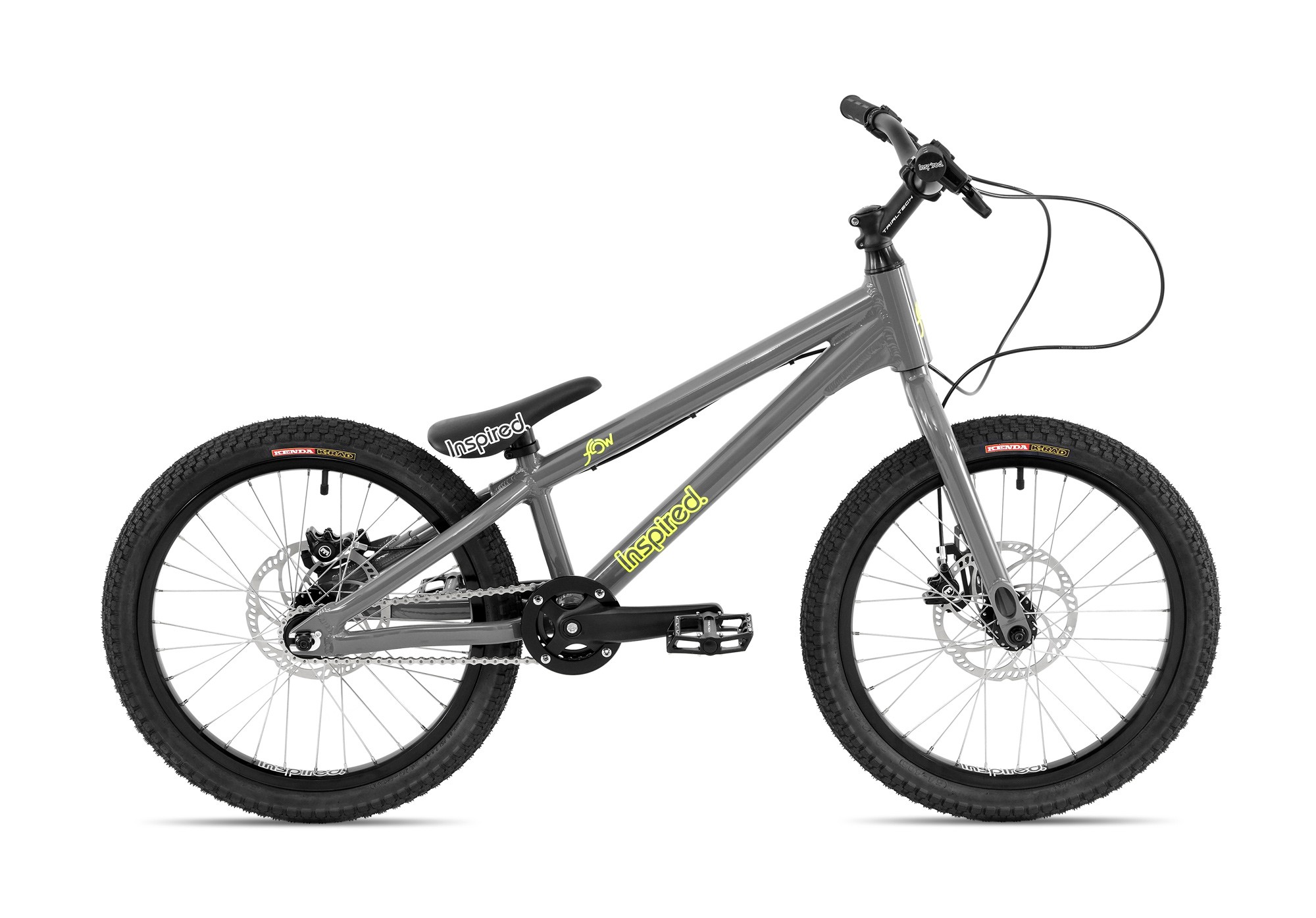

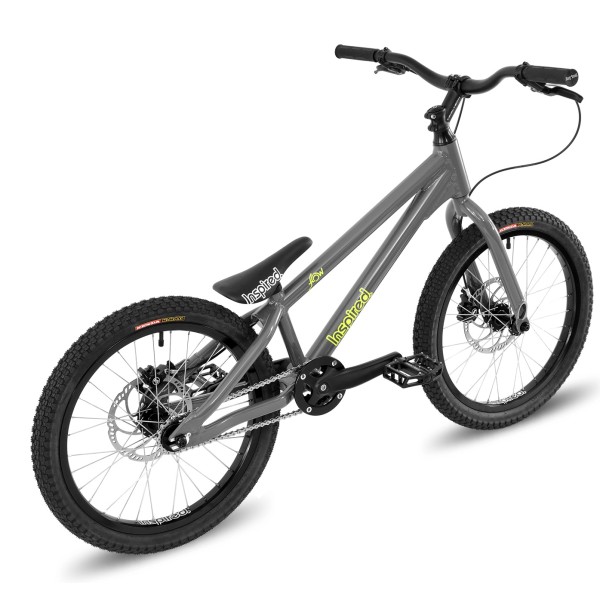

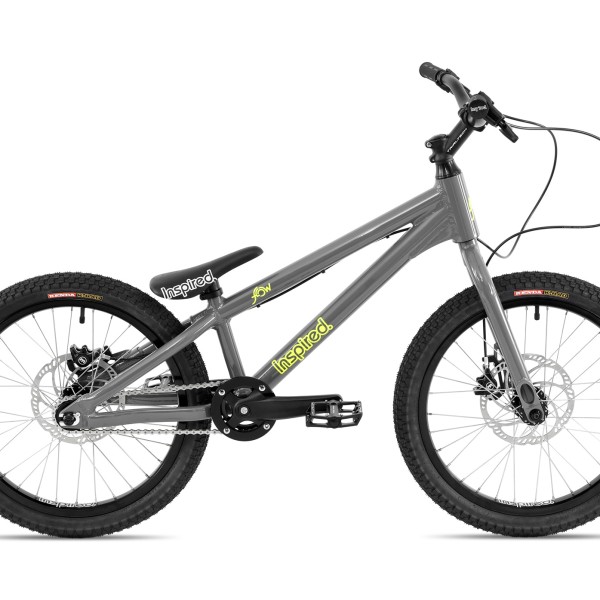

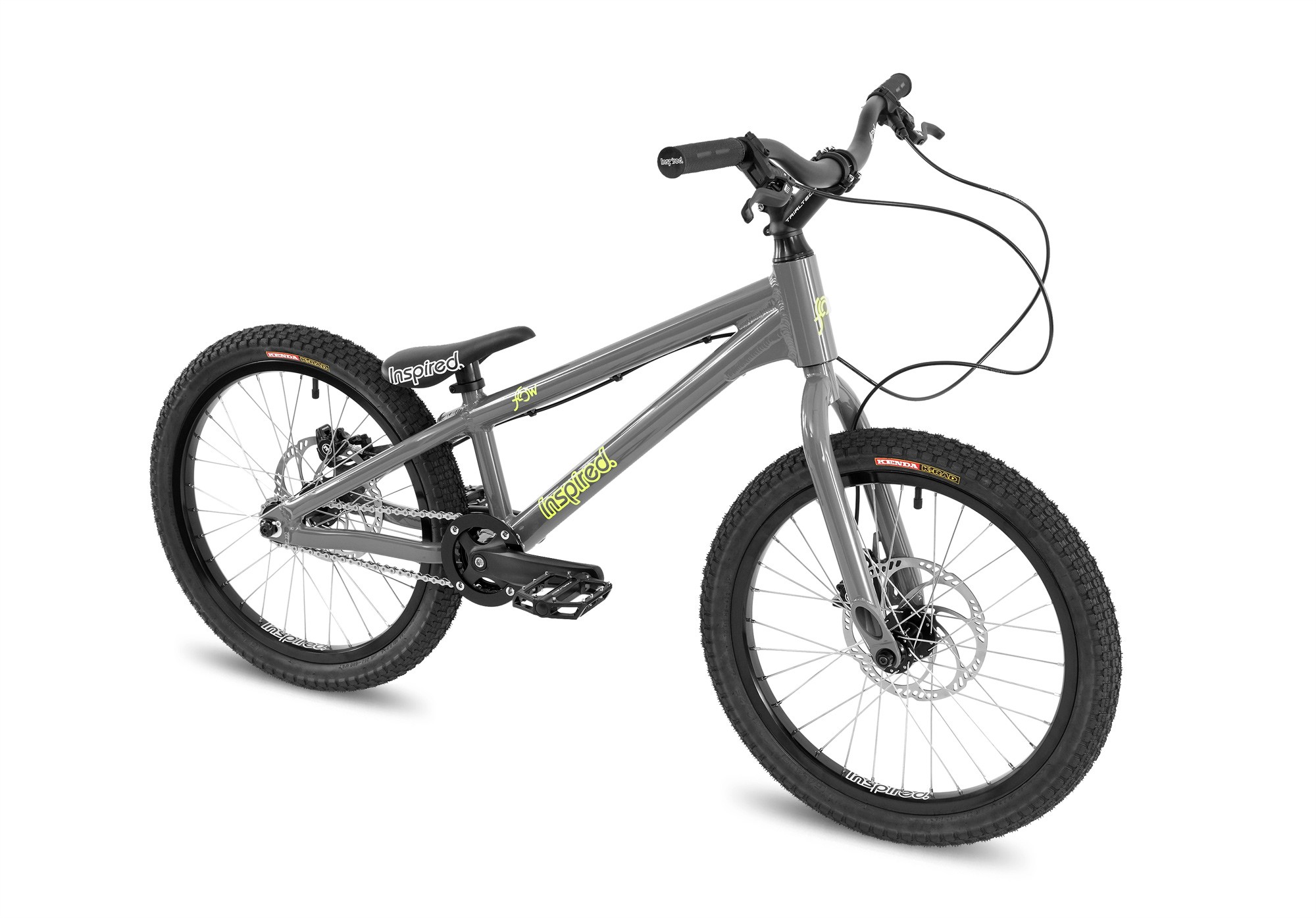

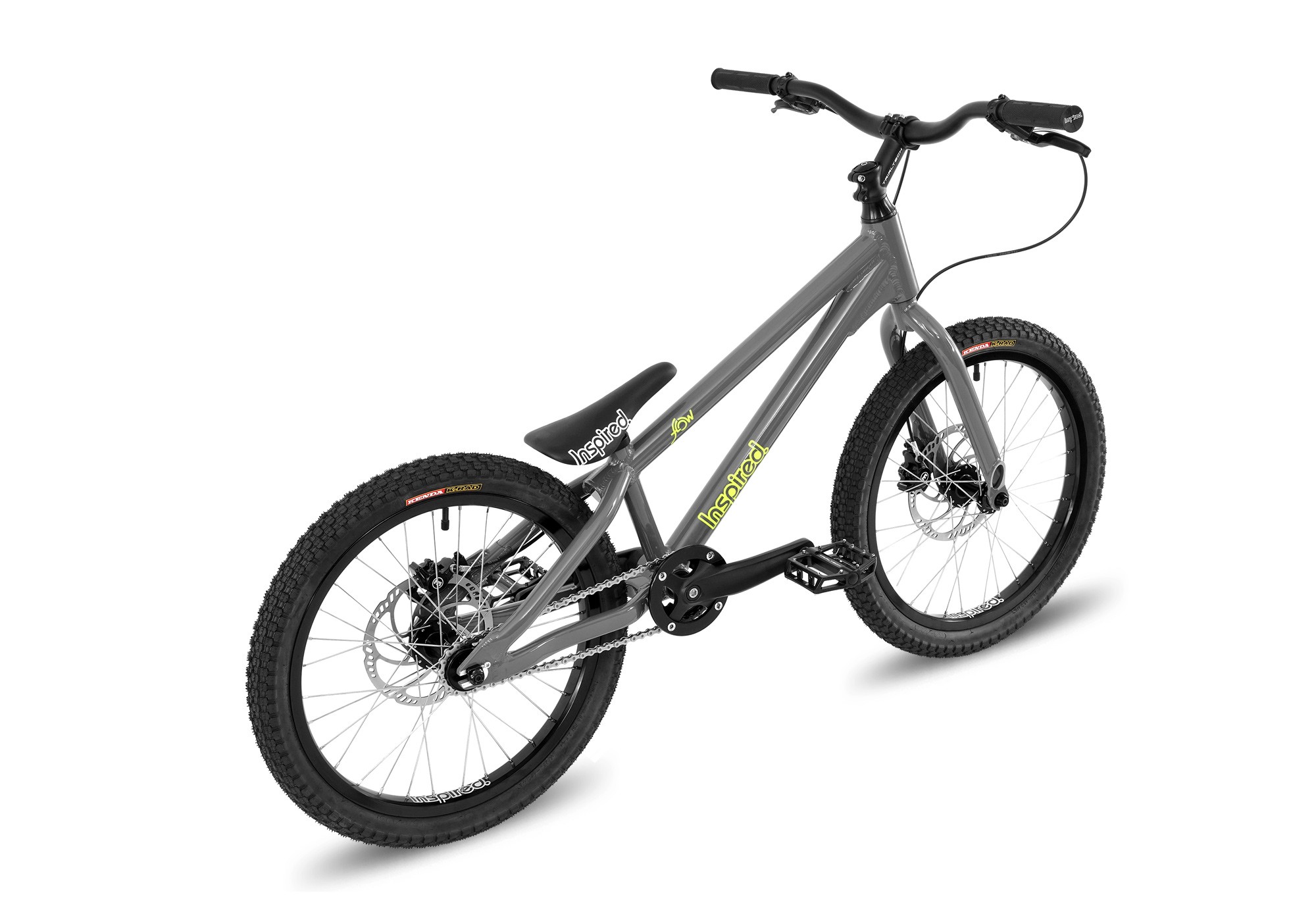

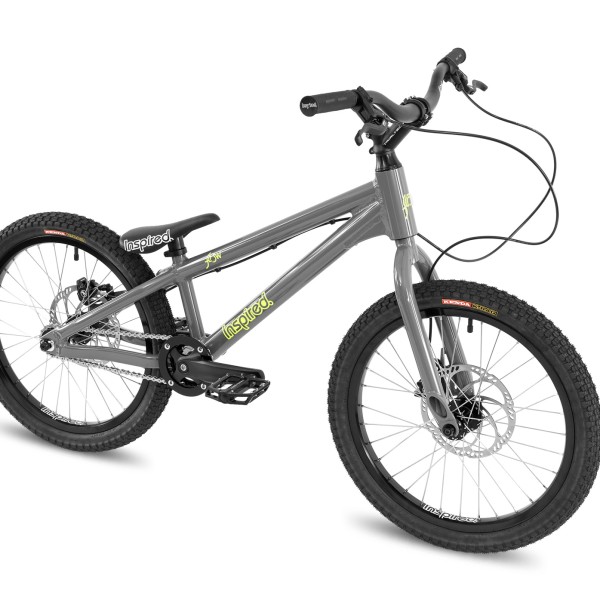

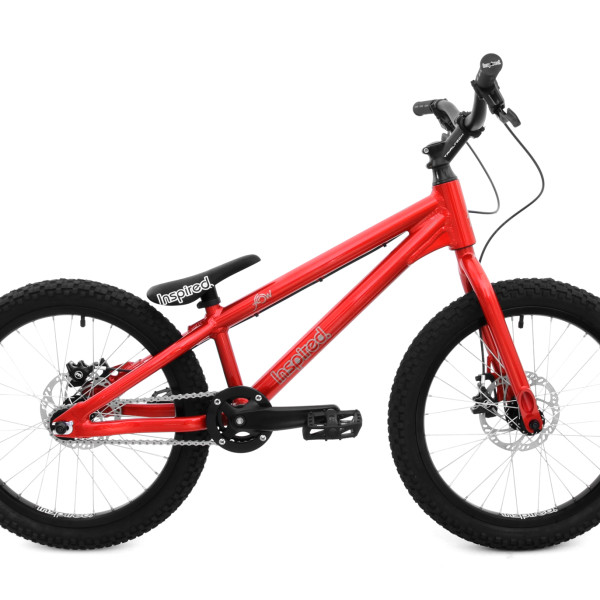

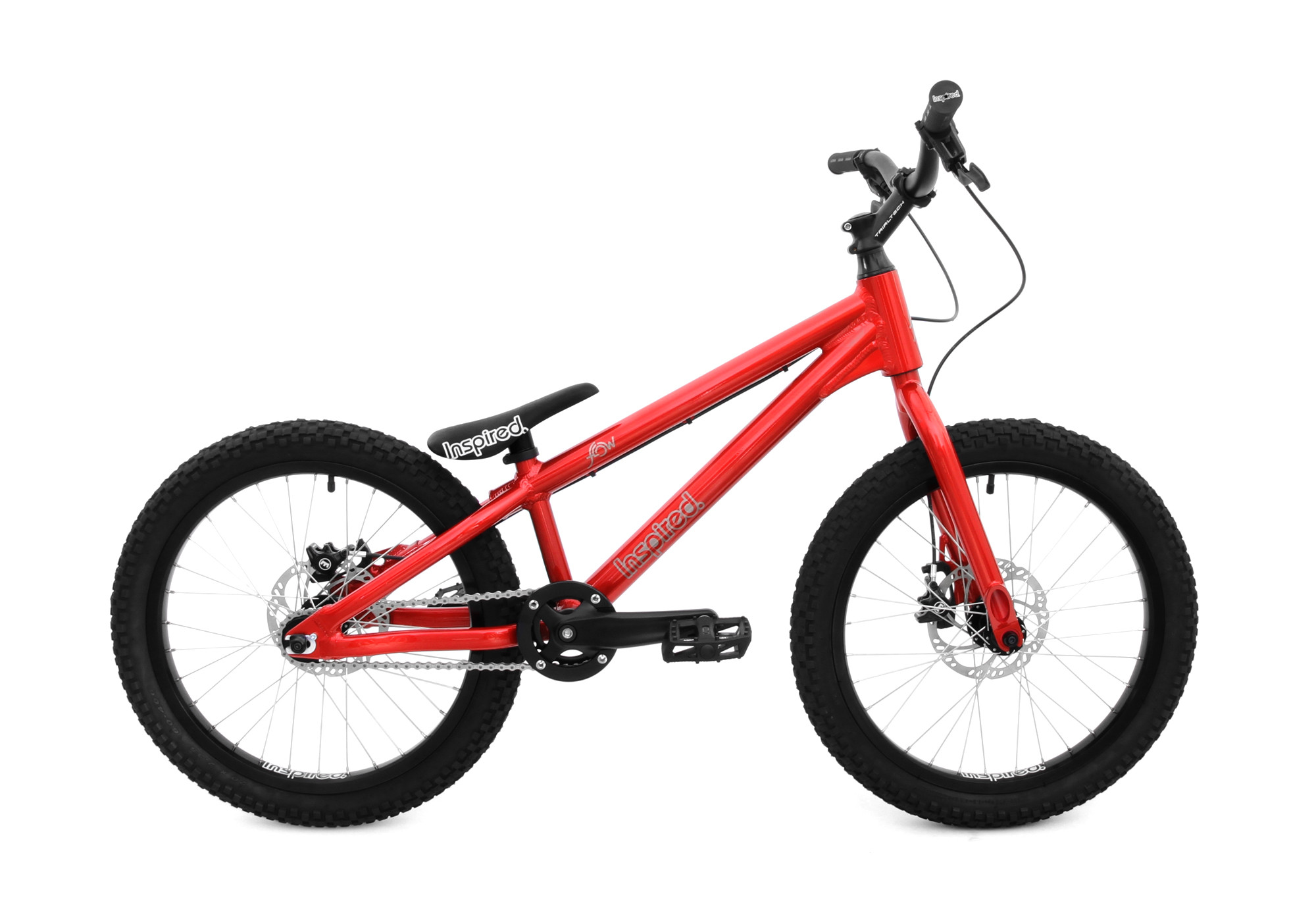

With many youngsters being inspired by our team riders’ amazing videos and wanting to be able to ride like them, the Flow 20" bike is designed to allow them to learn how to do just that. The 20" has the same great features as our 24" and 26" street bikes, but has been adapted to make it more suitable for all of the budding young street trials riders out there.

The geometry of the Flow 20" gives kids the opportunity to develop their riding ability and broaden their bike handling skills. As a first bike to learn the basics of street trials and get kids started on the way to becoming the next Danny MacAskill or Fabio Wibmer, the Flow 20" has it all. The combination of short chainstays and unique riding position means you get a bike that both bunnyhops and spins very well but the overall geometry offers plenty of stability when riding along on two wheels (or just one!). Up front, the 73 degree head angle and short offset forks give responsive handling and help with learning front wheel based tricks.

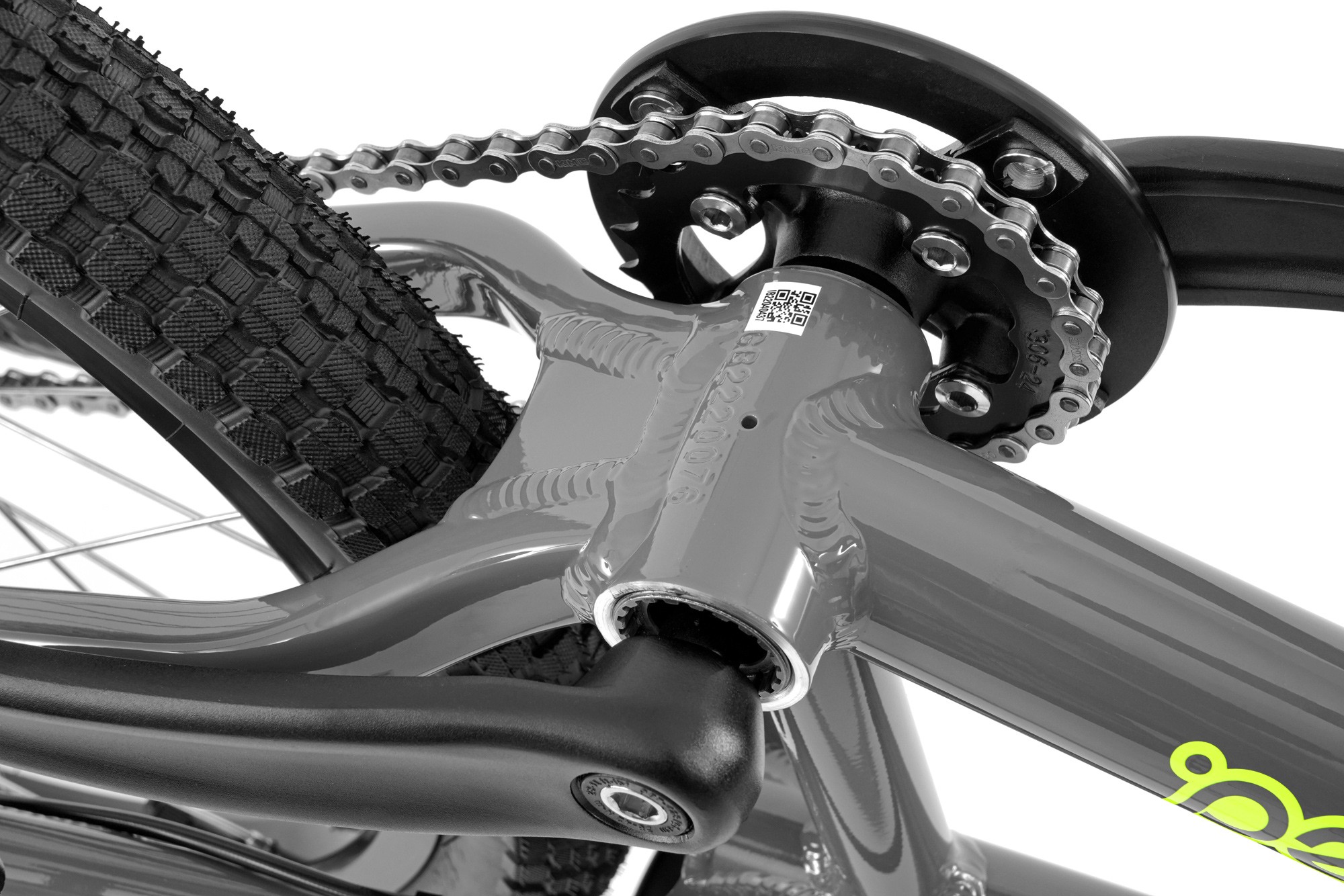

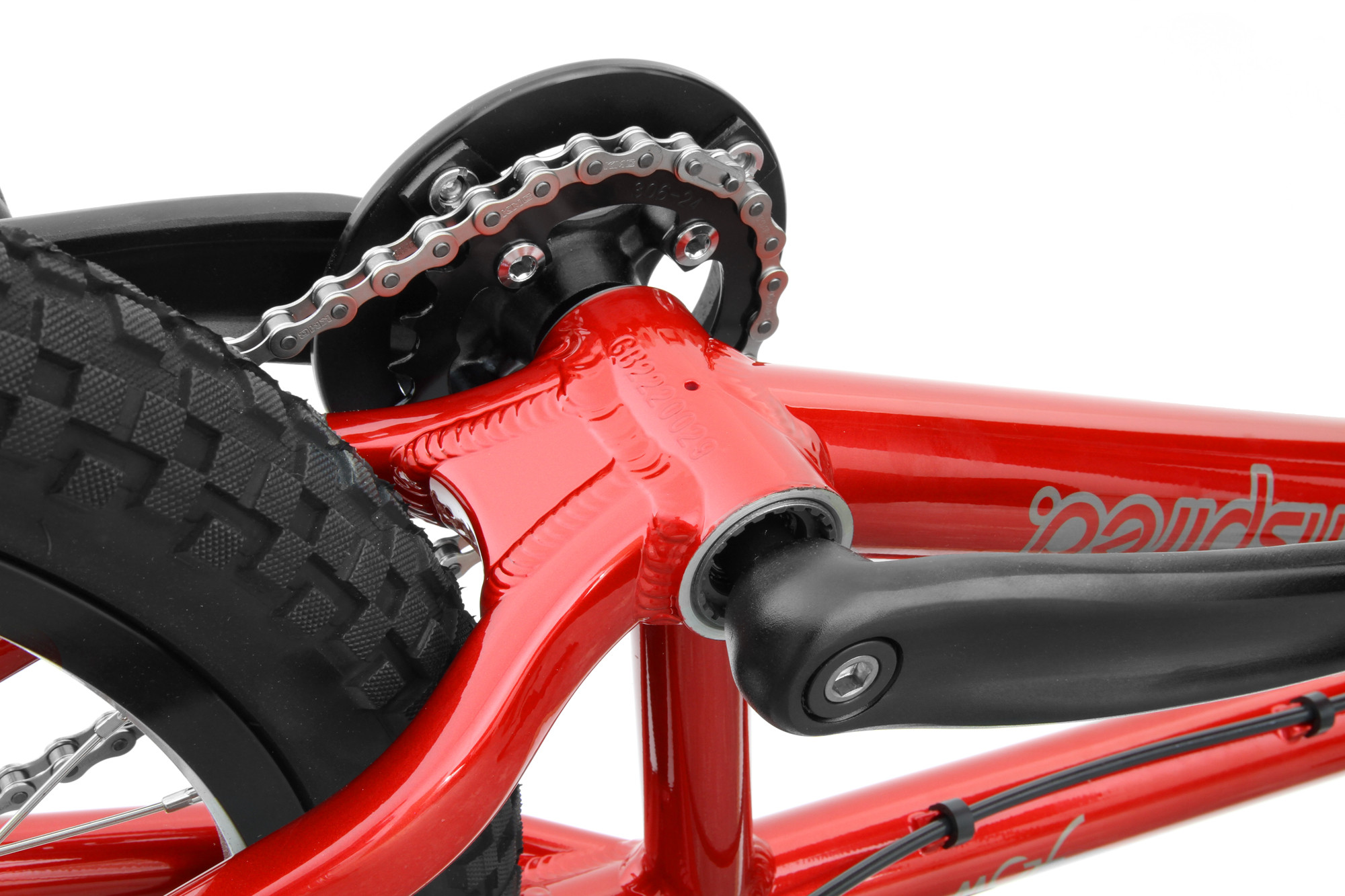

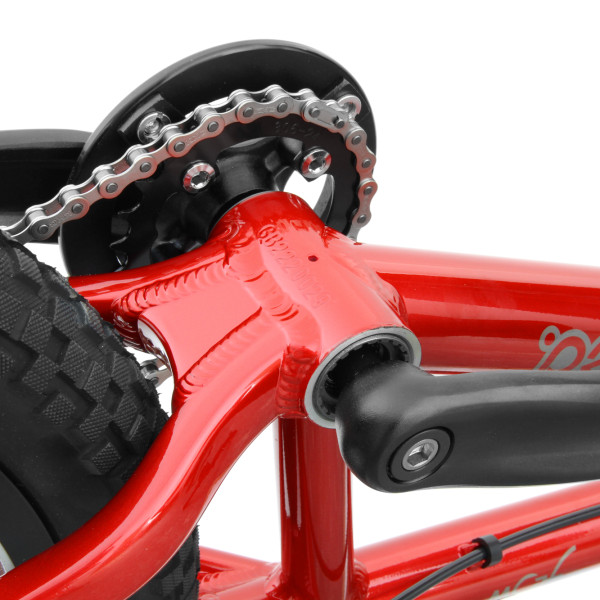

The Flow 20" frame is made from high quality 6061 aluminium and features a build quality and attention to detail normally associated with frames at a much higher price range. To ensure excellent strength and stiffness at the main contact areas, the frame features full size tubing, downtube gusset and custom BB yoke designed to clear a 24-tooth chainring. The steel Flow forks feature oversized legs and dropouts which also help to increase durability. The Flow frame and fork are light enough to allow kids to manoeuvre the bike effectively but durable enough that it will allow them to grow and develop their skills.

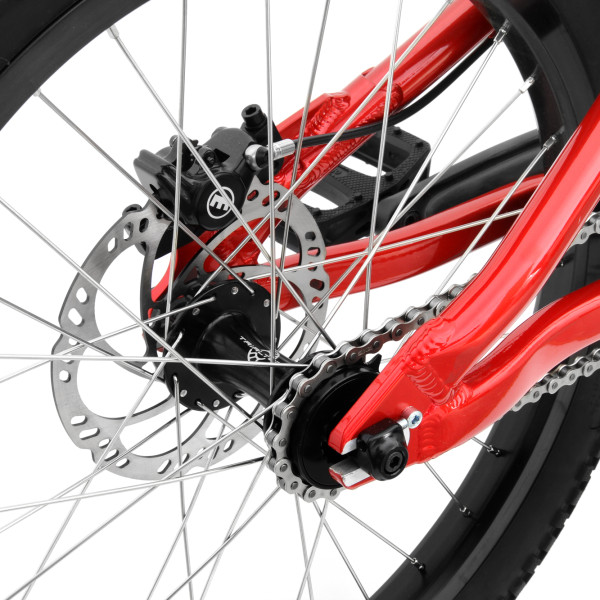

The rear of the frame has been designed to work specifically with a 24:16 (fitted as standard) gear ratio so we've been able to keep the neat horizontal dropouts as compact as possible and ensure they work perfectly with the custom CNC machined aluminium chain tugs. The frame and fork also feature CNC machined disc mounts to allow the bike to advance with your riding.

We believe that a value-for-money kids' bike should still offer excellent performance so we have carefully selected a group of suitable components. The steering section of the bike consists of an Inspired aluminium riser handlebar and Trialtech forged stem. Drivetrain components include a sealed BB and forged aluminium cranks, KMC chain, Wellgo nylon pedals and custom Flow chain tugs. Avid FR5 levers and BB5 Disc brakes make up a reliable and highly effective braking system (Magura MT4 brake upgrade shown in photos). The wheels feature tough Inspired rims built with super-smooth Trialtech sealed bearing hubs.

Also available with Magura MT4, Hope Tech 4 - Trial Zone or Magura MT7, HC3 Blade, disc brake upgrade options*.

Available in Gloss Grey only.

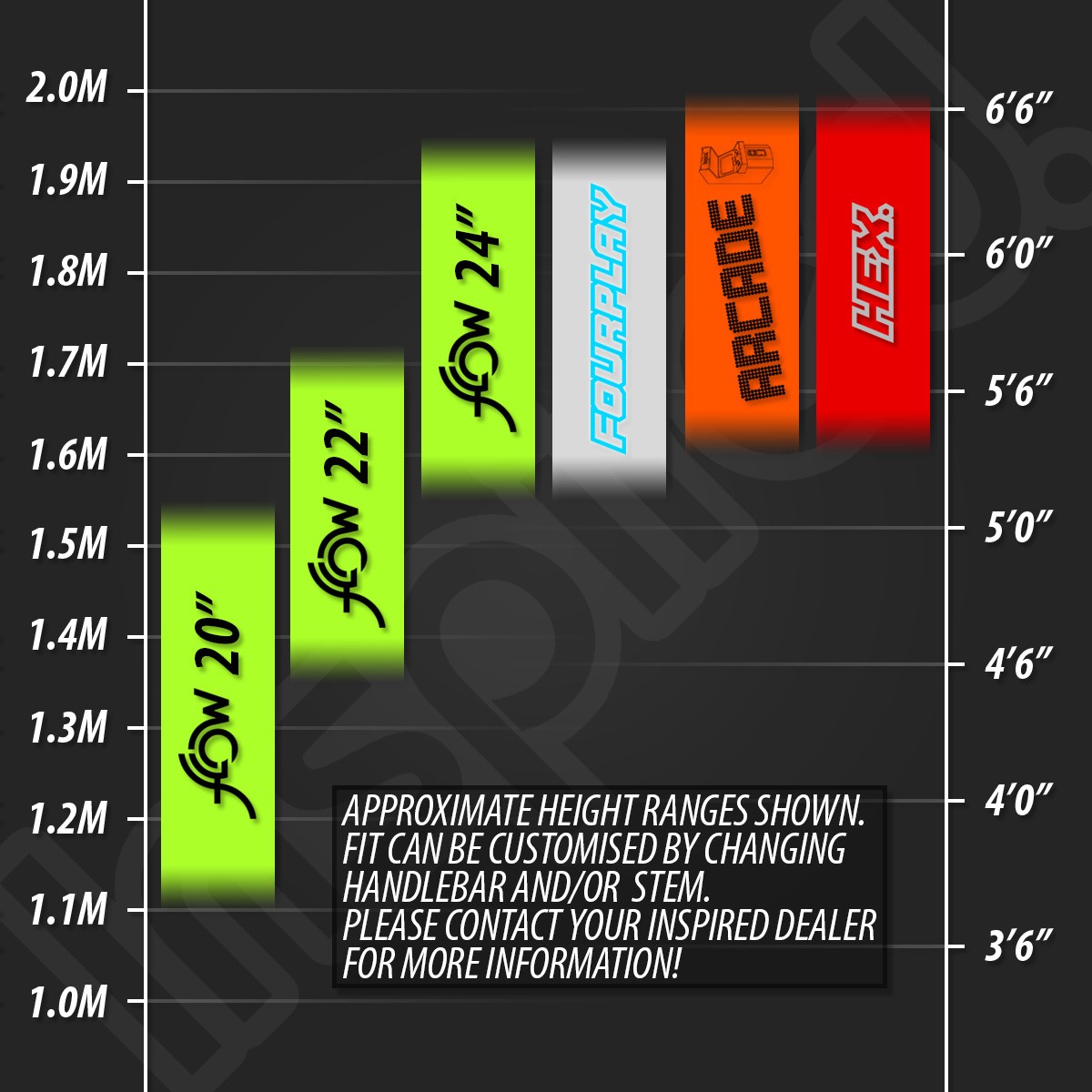

Suggested height: 1.10m/3ft 7in - 1.55m/5ft 1in

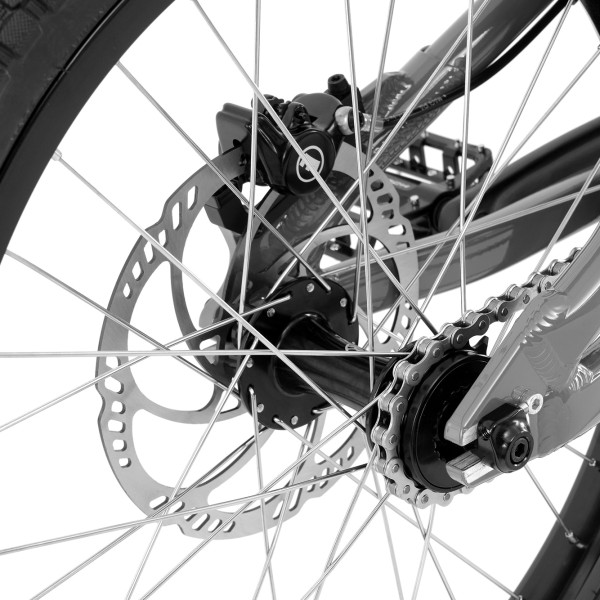

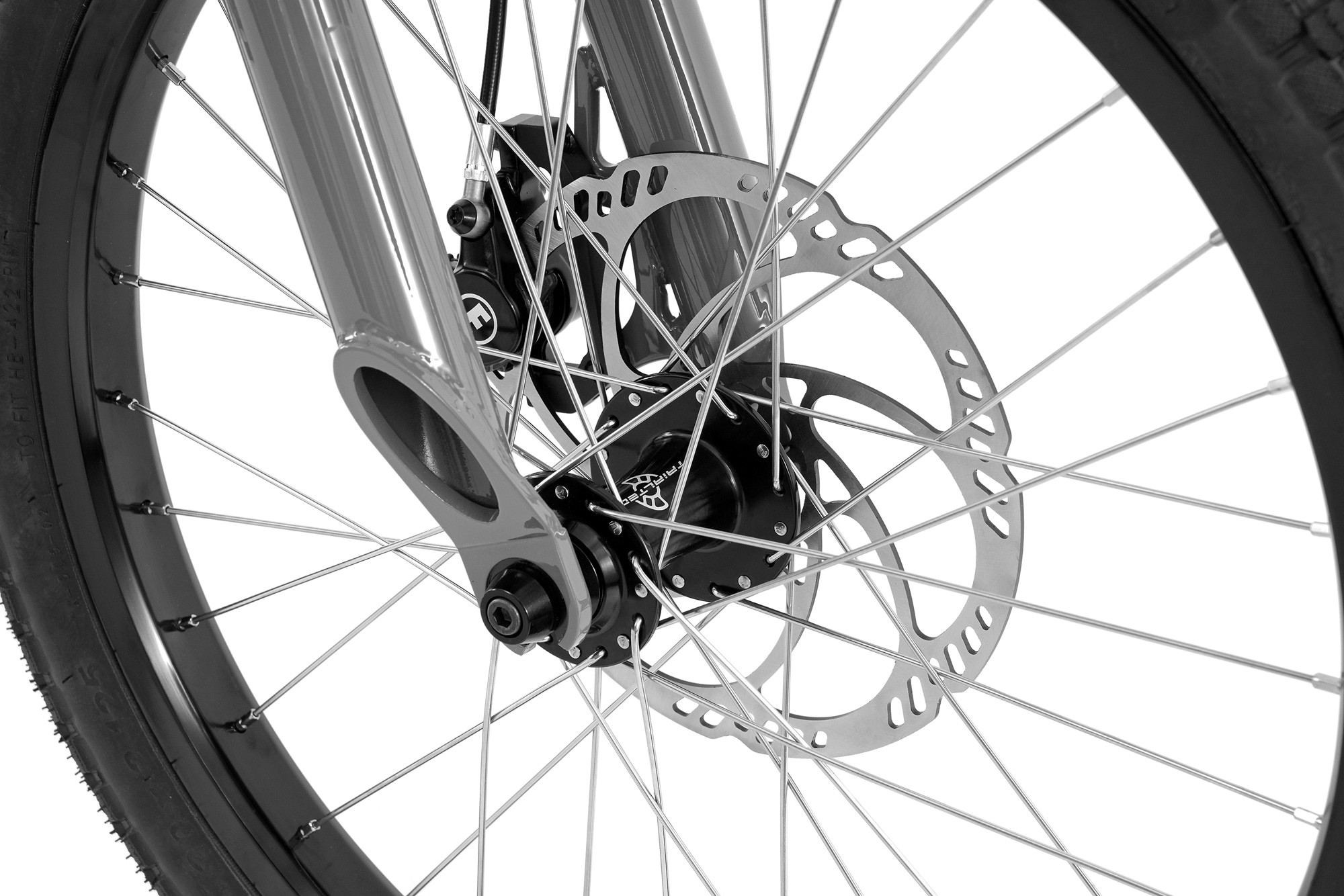

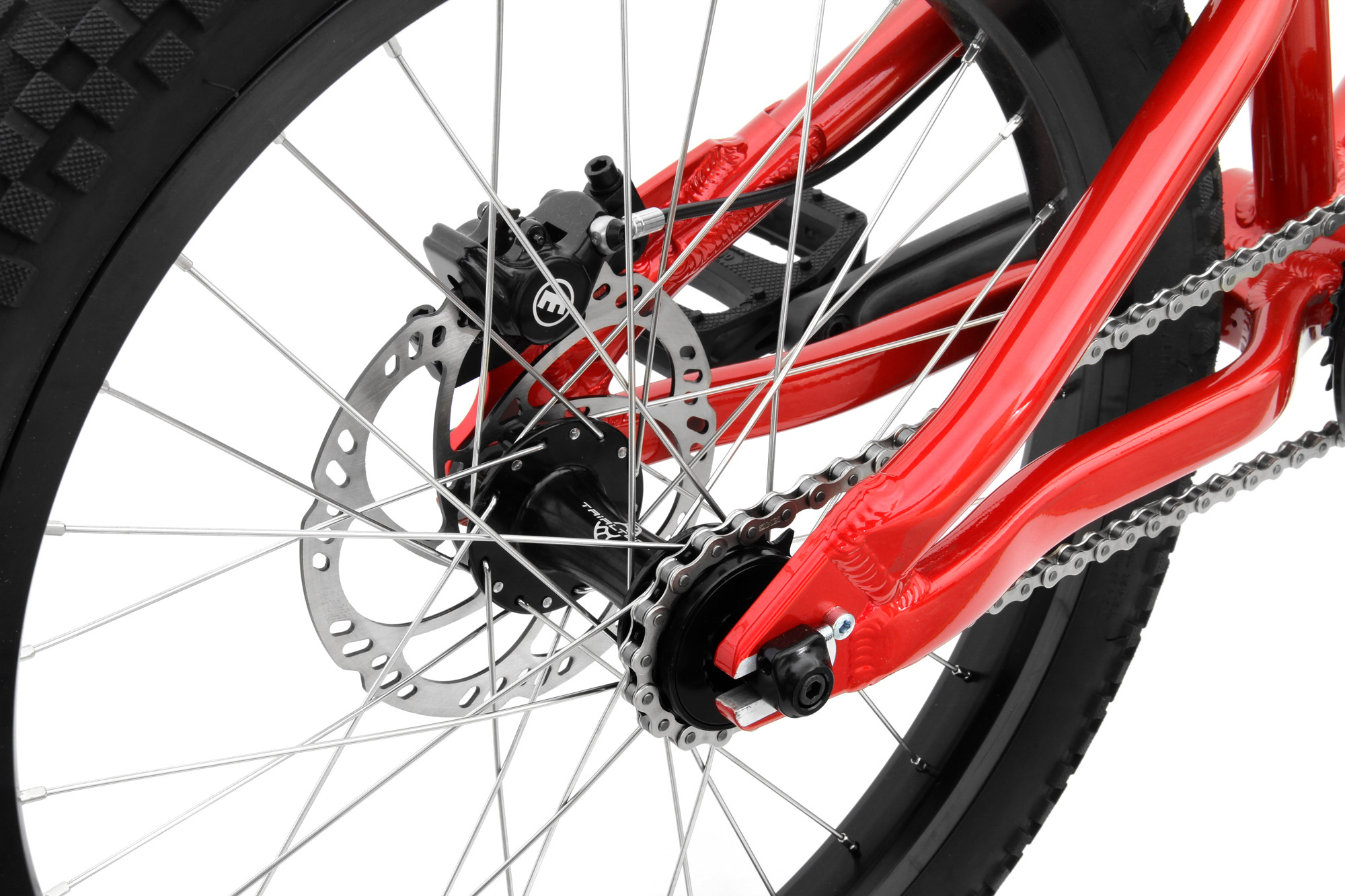

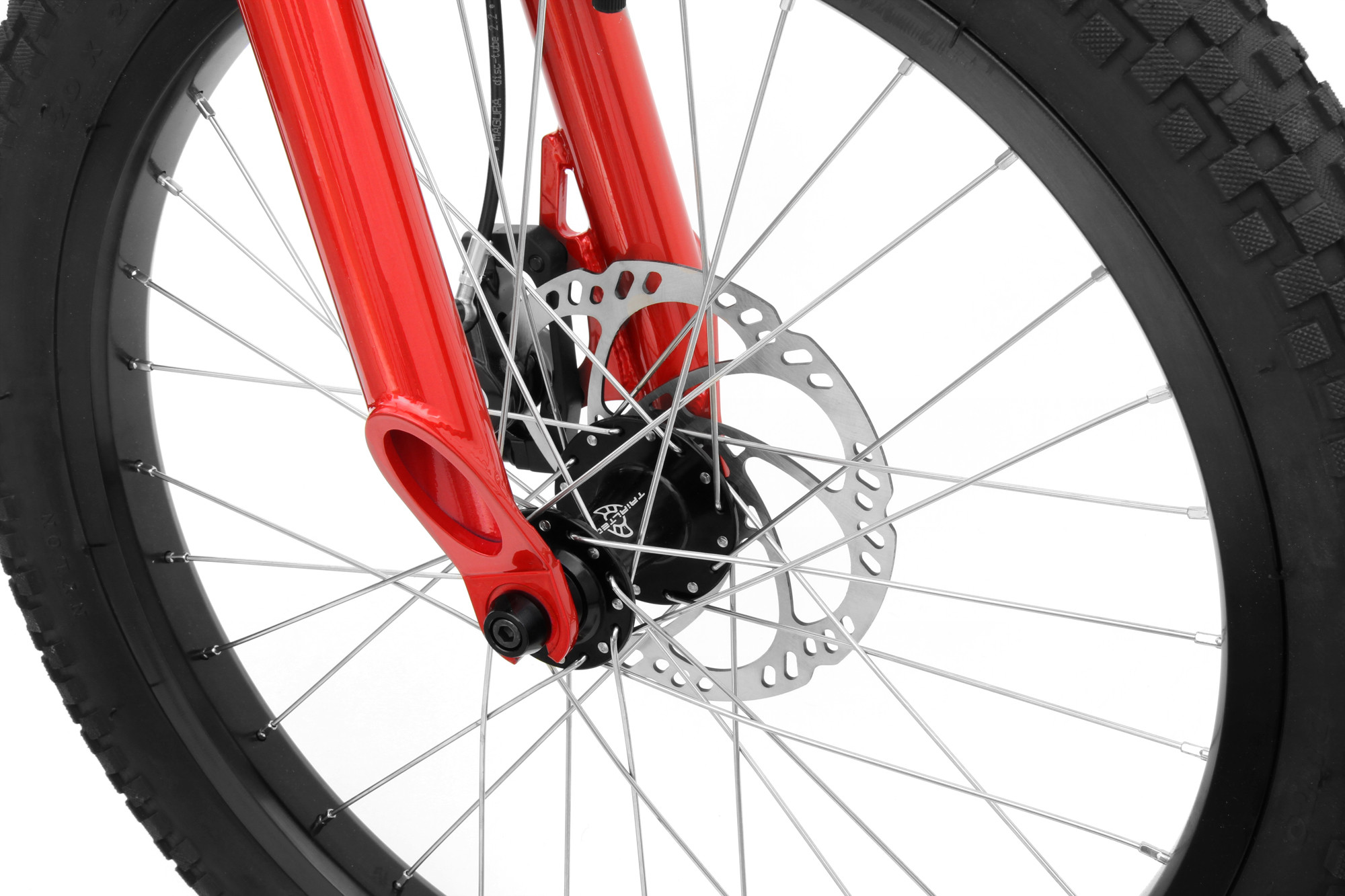

TRIALTECH DISC HUBS
Sealed bearing hubs front and rear

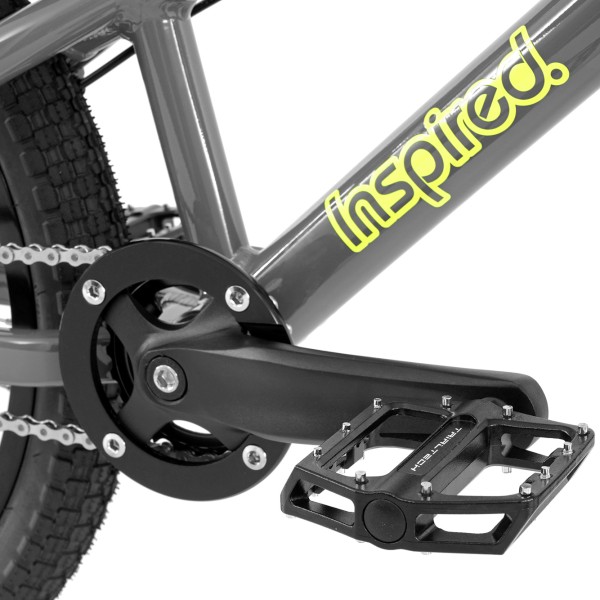

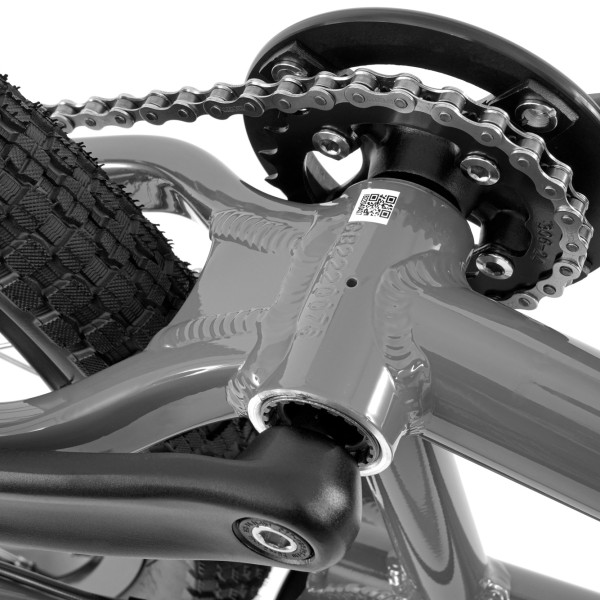

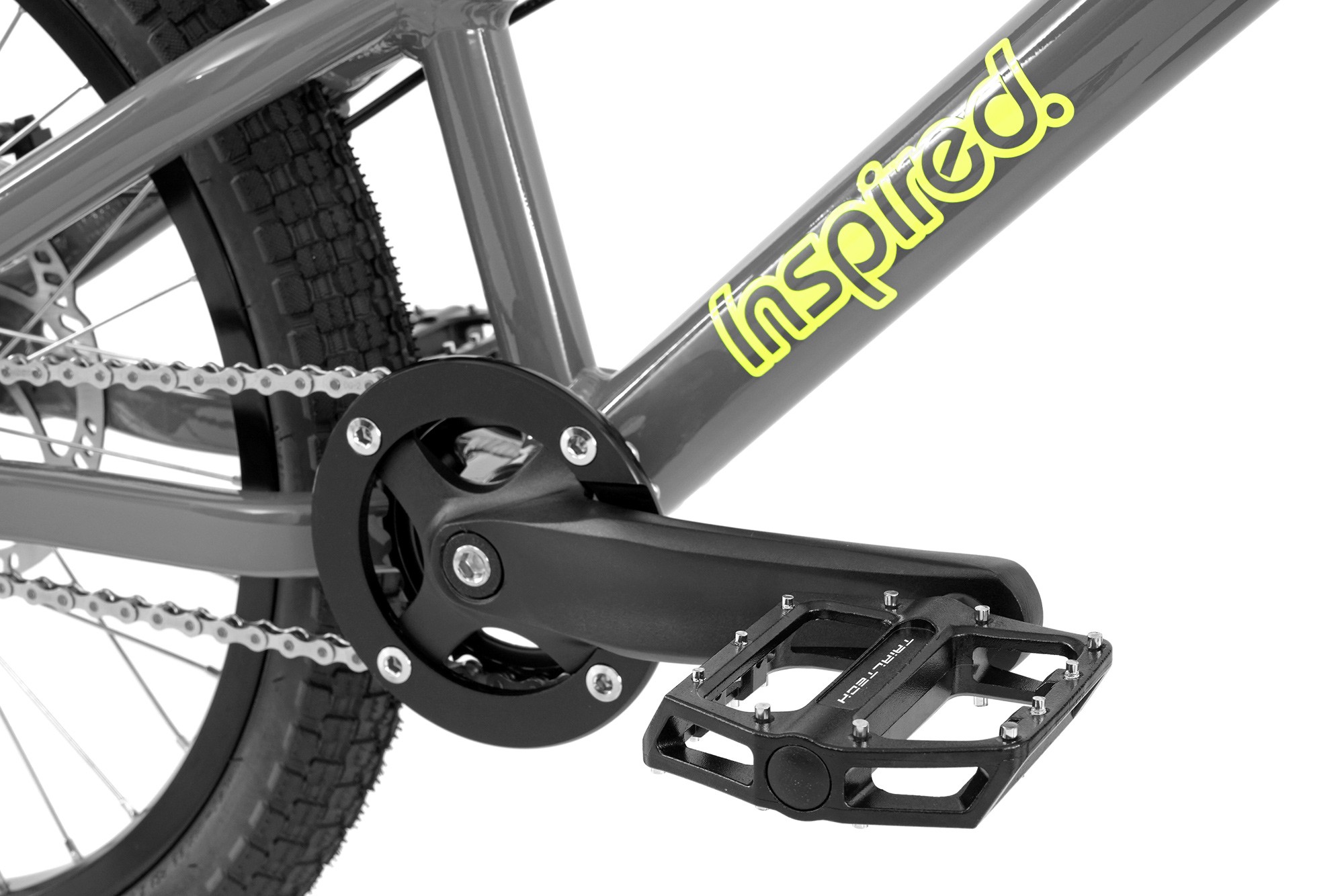

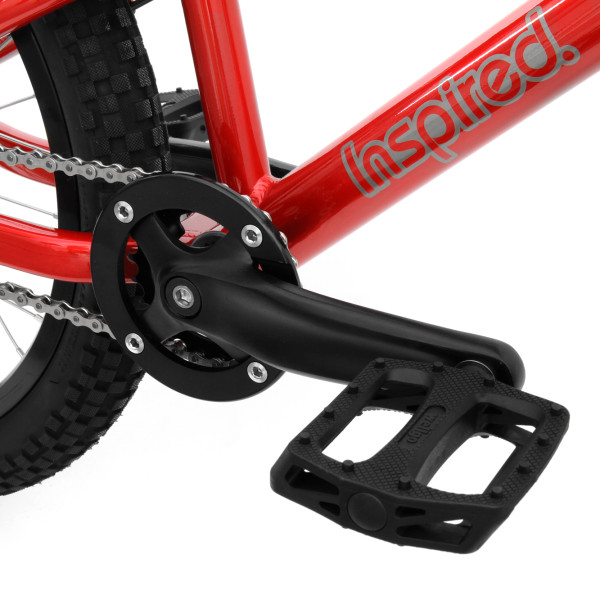

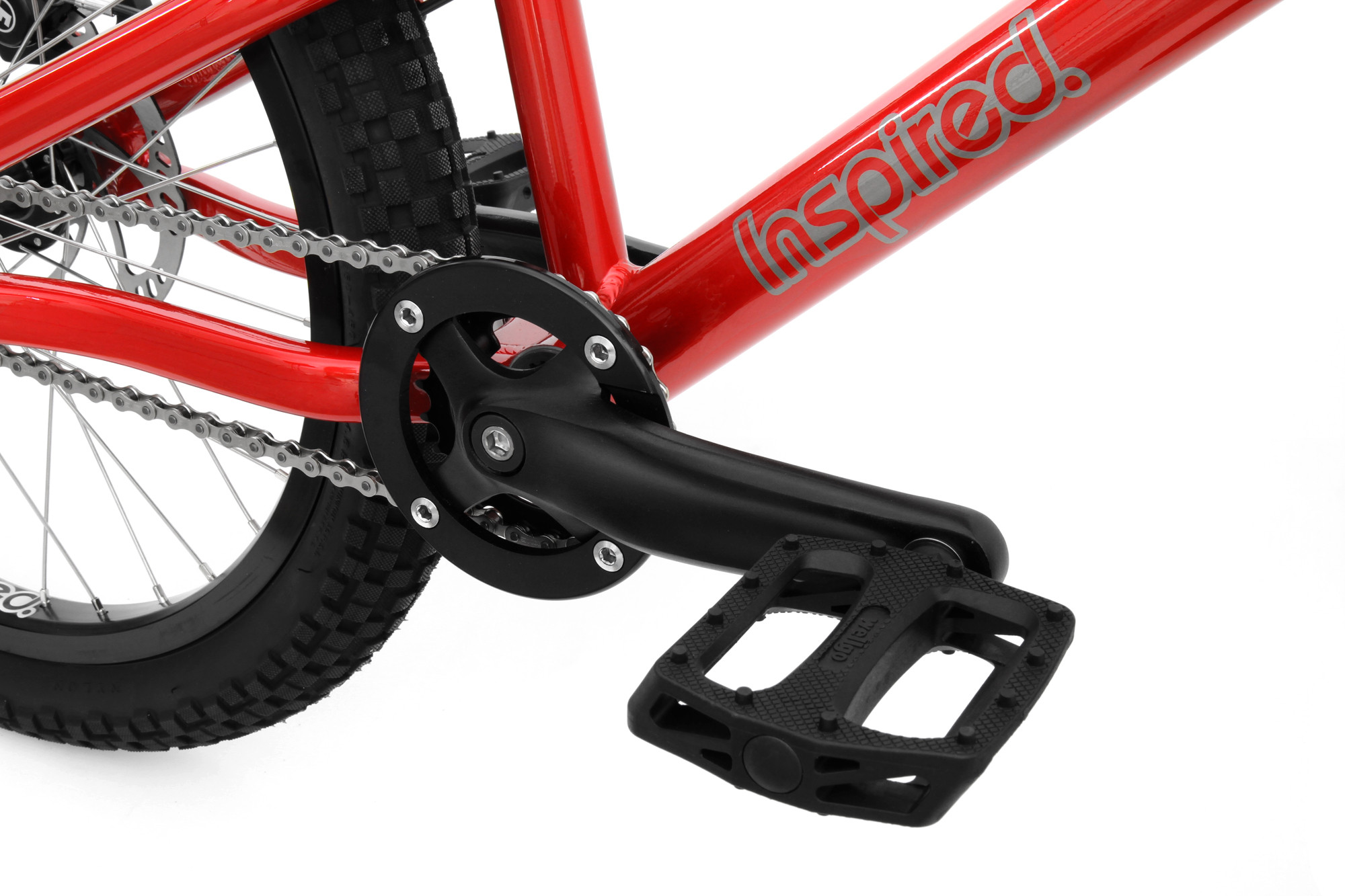

TRIALS CRANKSET
Tough square taper trials crankset with sealed bearing BB

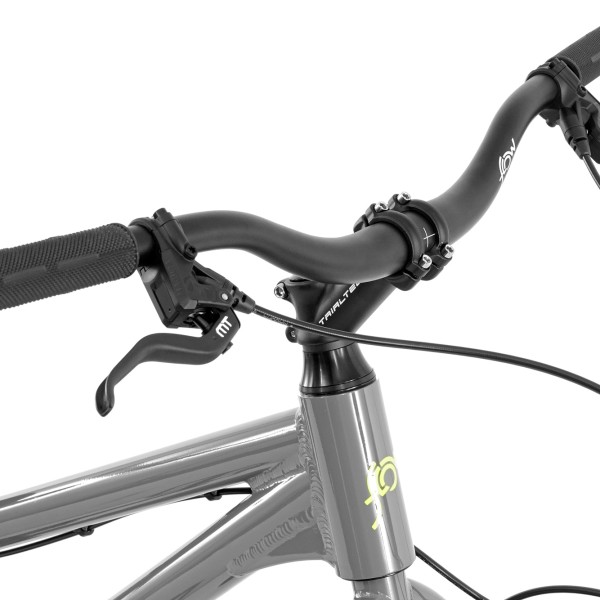

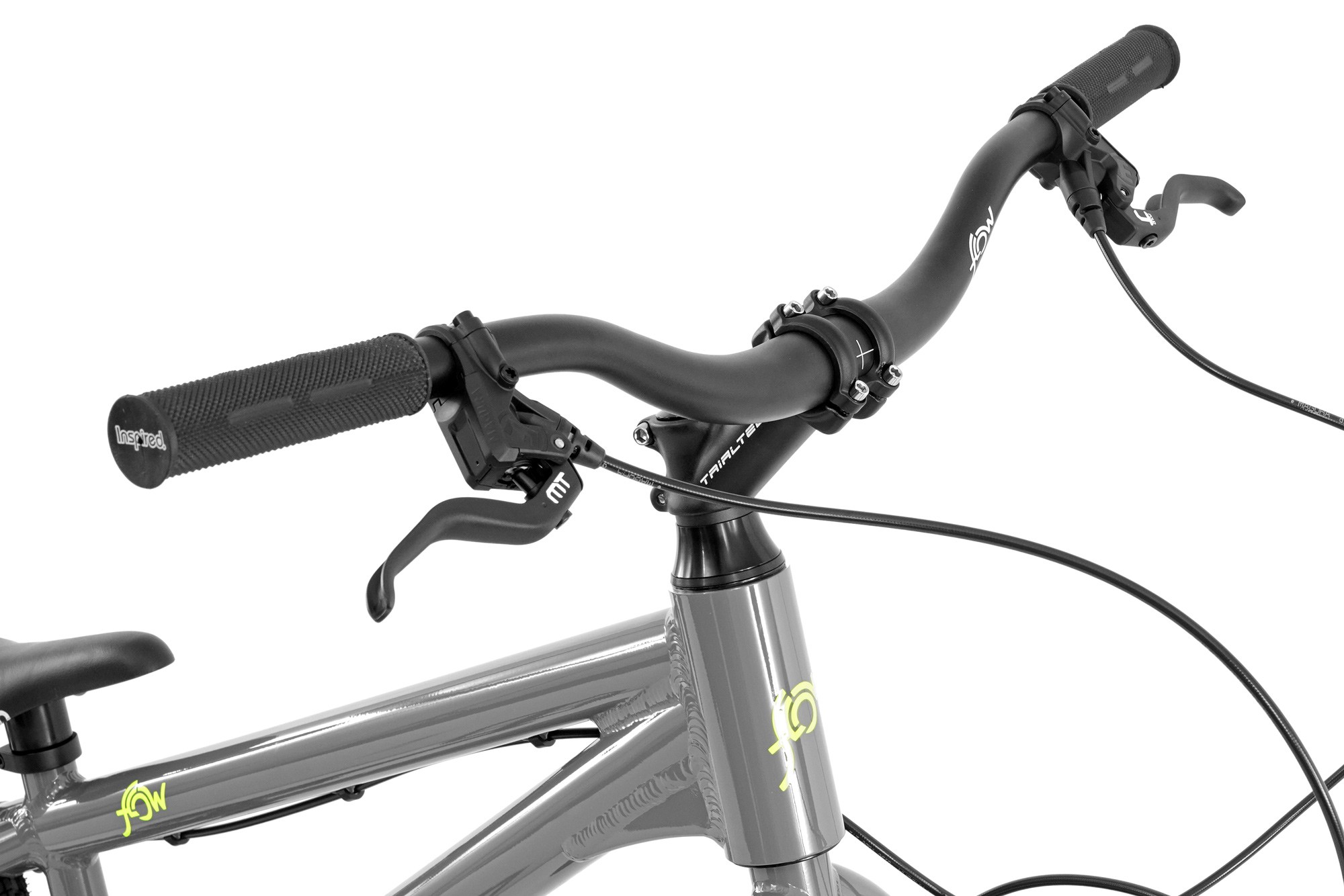

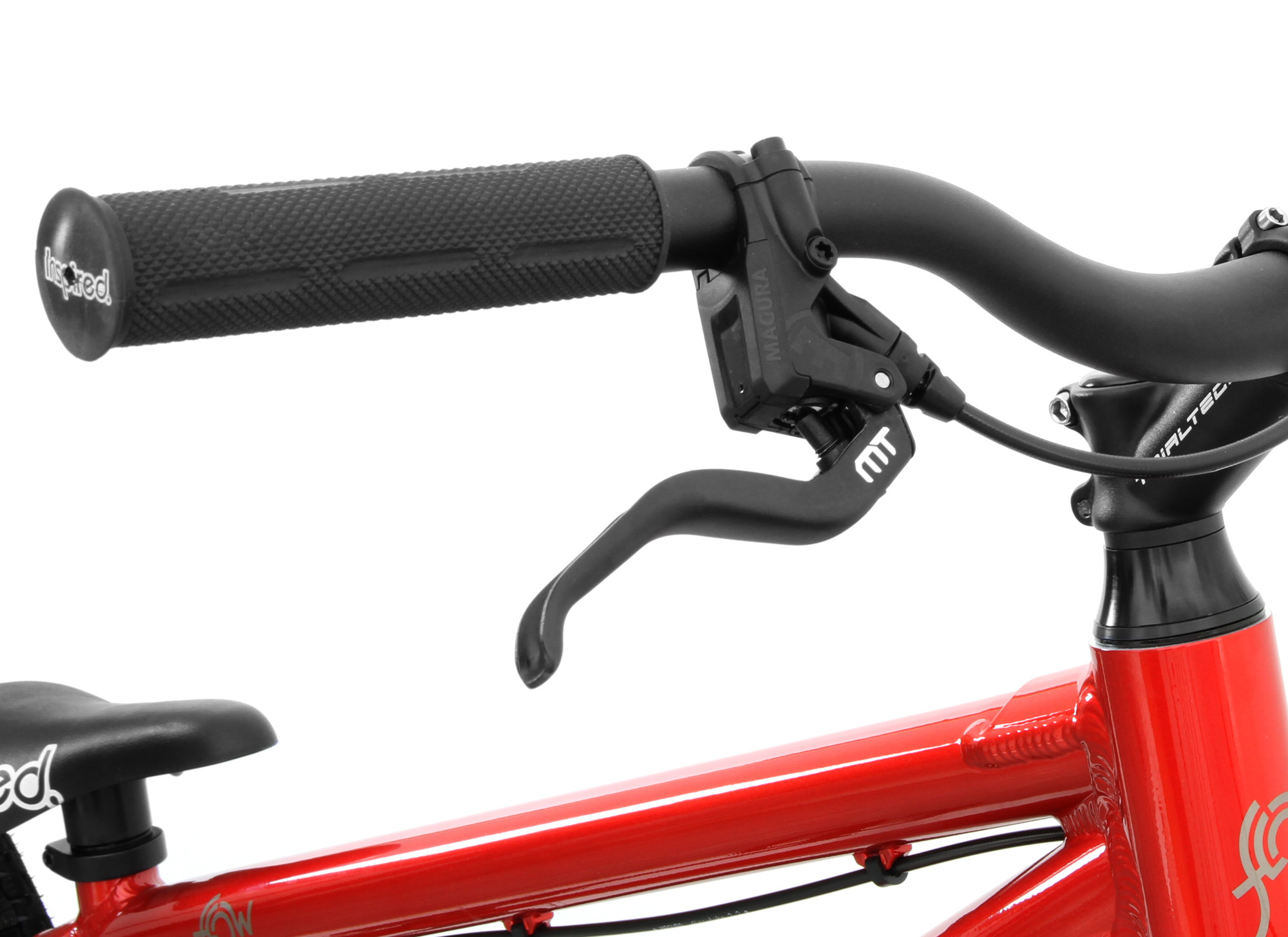

FLOW ALLOY RISERS
With forged Trialtech stem

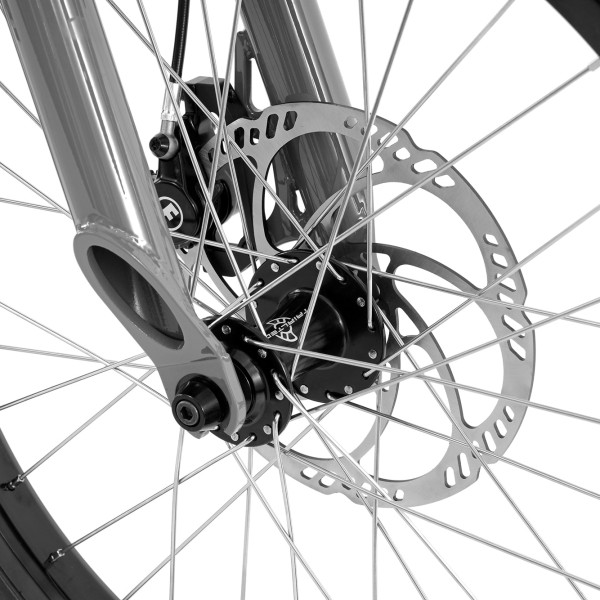

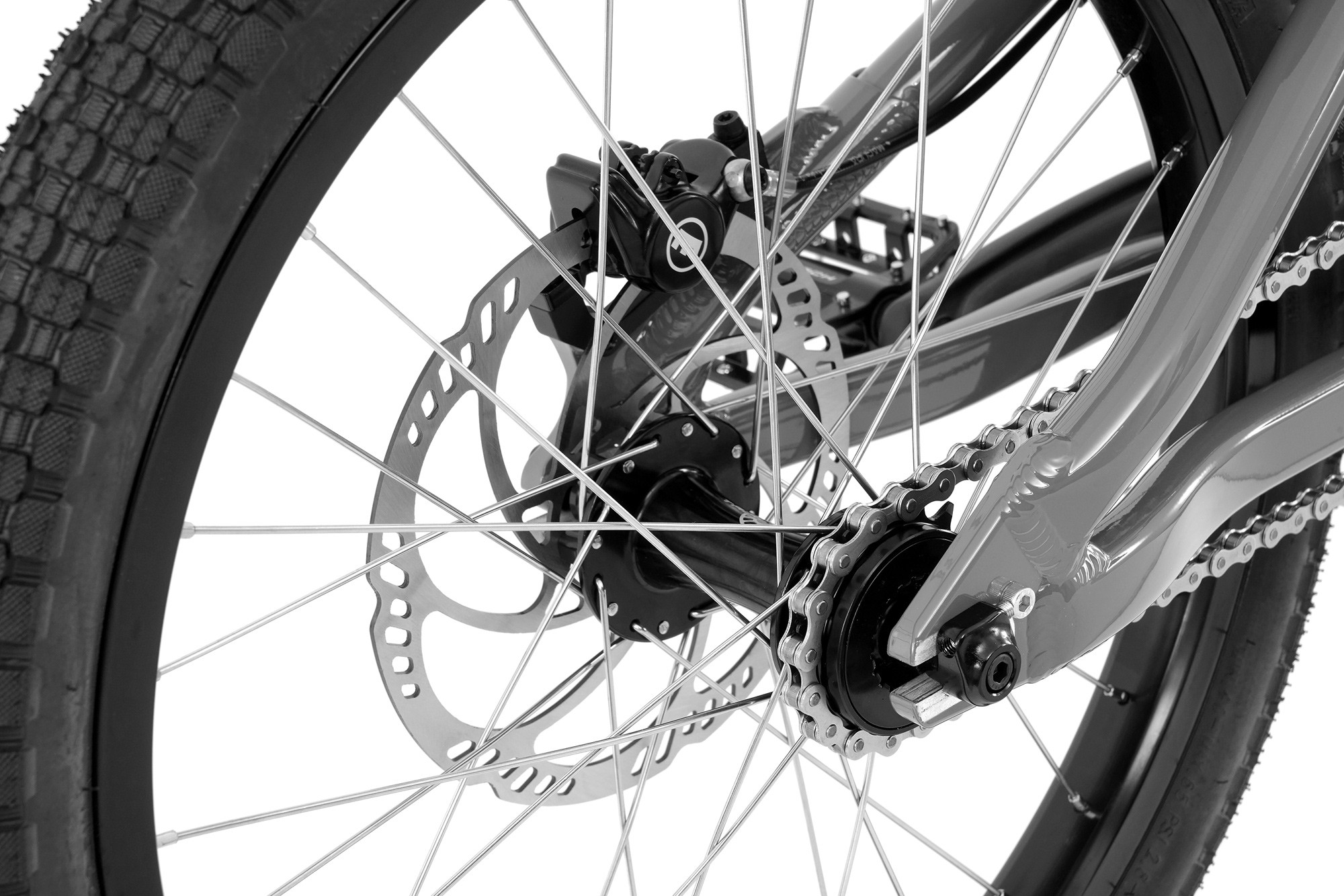

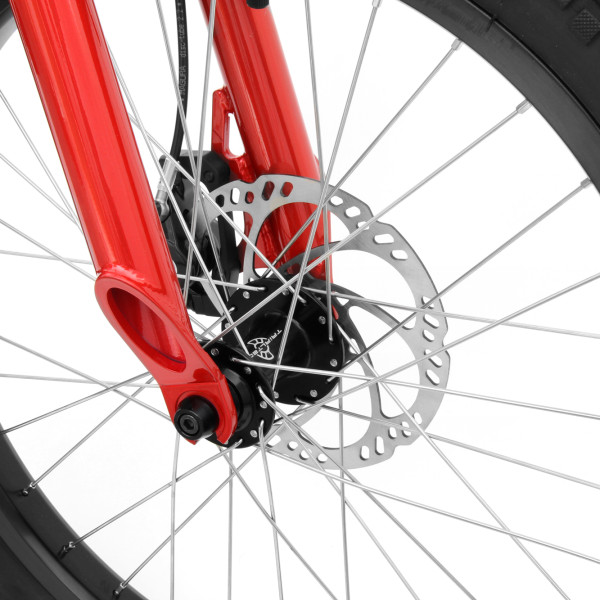

CUSTOM BRAKE MOUNTS
Designed for 165mm & 180mm rotors

Technical Data

Frame

- Frame: Inspired Flow 20", 6061-T6 Aluminium Alloy, Gloss Grey

Compatibility

- Dropouts: 135 x 10mm
- Bottom bracket: 73mm BSA
- Headset type: Internal
- Seat tube diameter: 25.4mm
- Brake mount: +20mm IS

Fork

- Inspired Flow 20", Steel, Disc Only, Gloss Grey

Compatibility

- Steerer tube: 1 1/8"
- Dropouts: 100 x 10mm
- Brake mount: IS

Brakes

- Brakes: Avid FR5 Lever/BB5 Caliper, 160mm Avid G2 Rotors

Optional Upgrades*

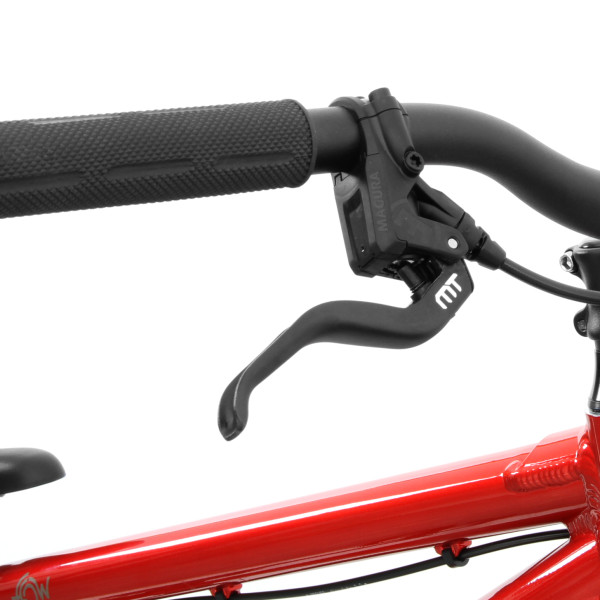

- Magura MT4, 180mm Storm HC Rotors (shown in photos)
- Hope Tech 4 Trial Zone, 180mm Trial Zone V2 Rotors
- Magura MT7 HC3, 180mm Storm HC Rotors

Drivetrain

- Cranks: Trialtech, 162mm, Black
- Front Sprocket: Trialtech, 24T
- Chain: KMC S1
- Freewheel: Trialtech 16T, 36 engagement
- Pedals: Wellgo Nylon Platform, Black (NOT Trialtech Race as shown in photos!)
- Bottom Bracket: Sealed Square Taper
- Bashring: 24T Trials

Wheels

- Front Hub: Trialtech, 32h, 100mm wide, Sealed Bearing, Black
- Rear Hub: Trialtech 32h, 135mm wide, Sealed Bearing, Black
- Chain Tensioner: Flow Chain Tug
- Rims: Inspired Single Wall, 20", Black
- Tyres: Kenda K-Rad 20 x 2.125" or Duro 20” x 2.35” (Stock Dependent)

Steering

- Headset: Trialtech, 44mm Internal, 1-1/8", Black
- Stem: Trialtech Forged, 90mm x 35˚, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Riser, Black

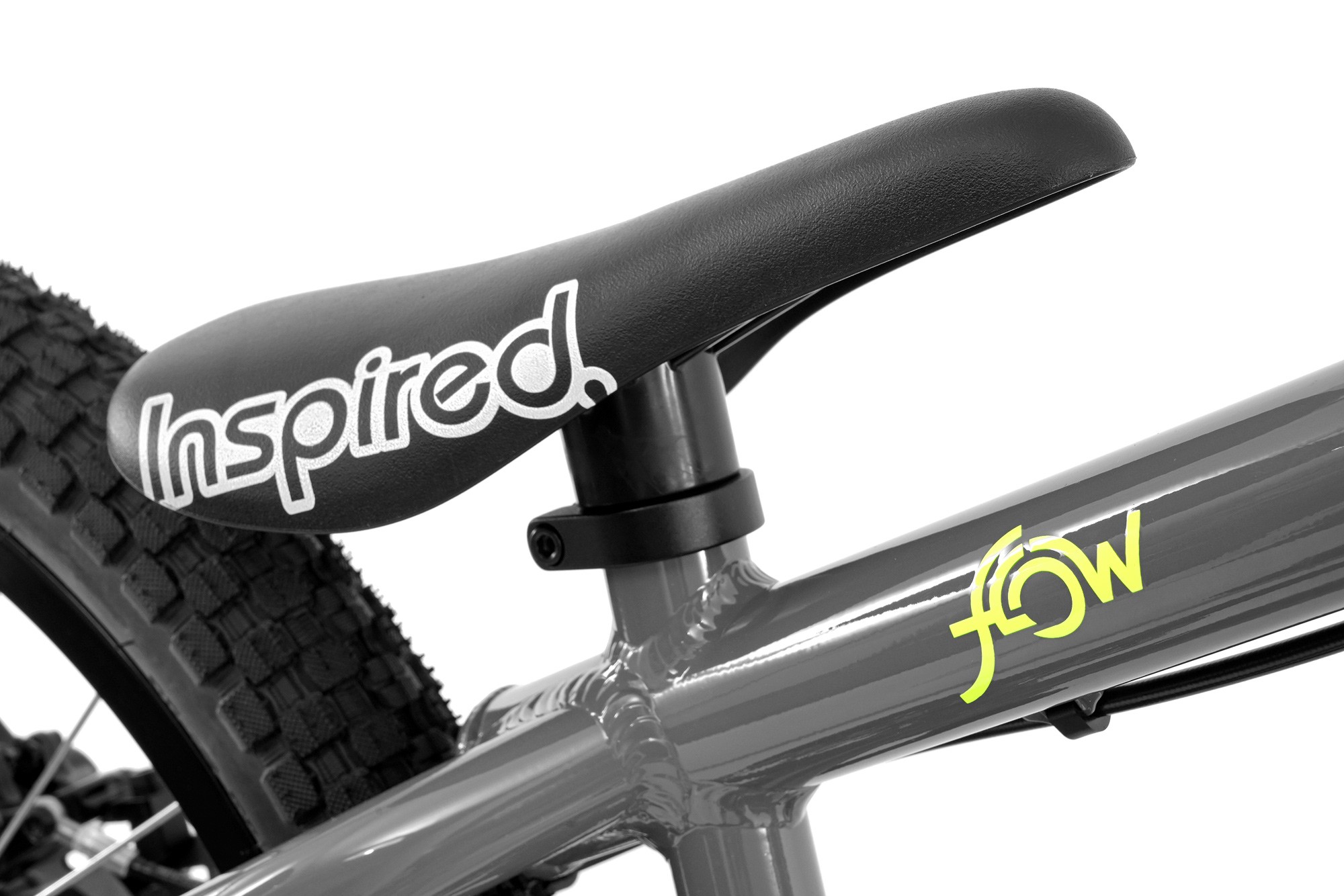

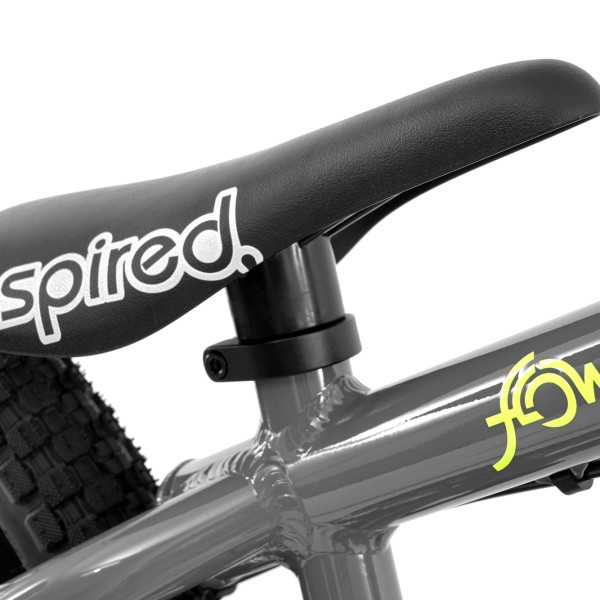

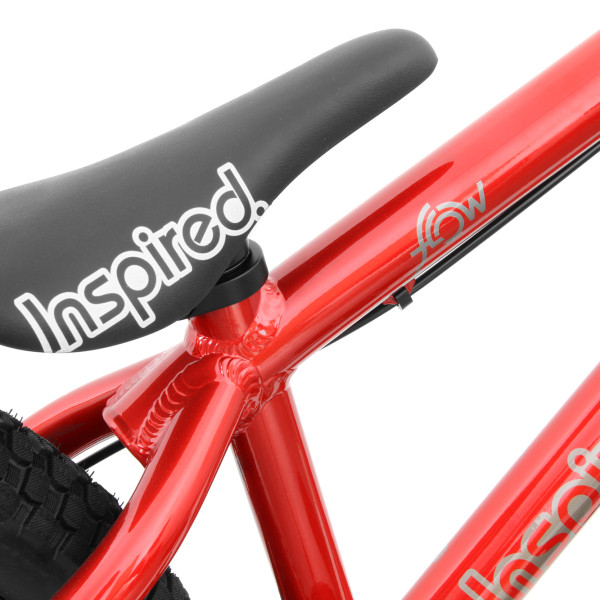

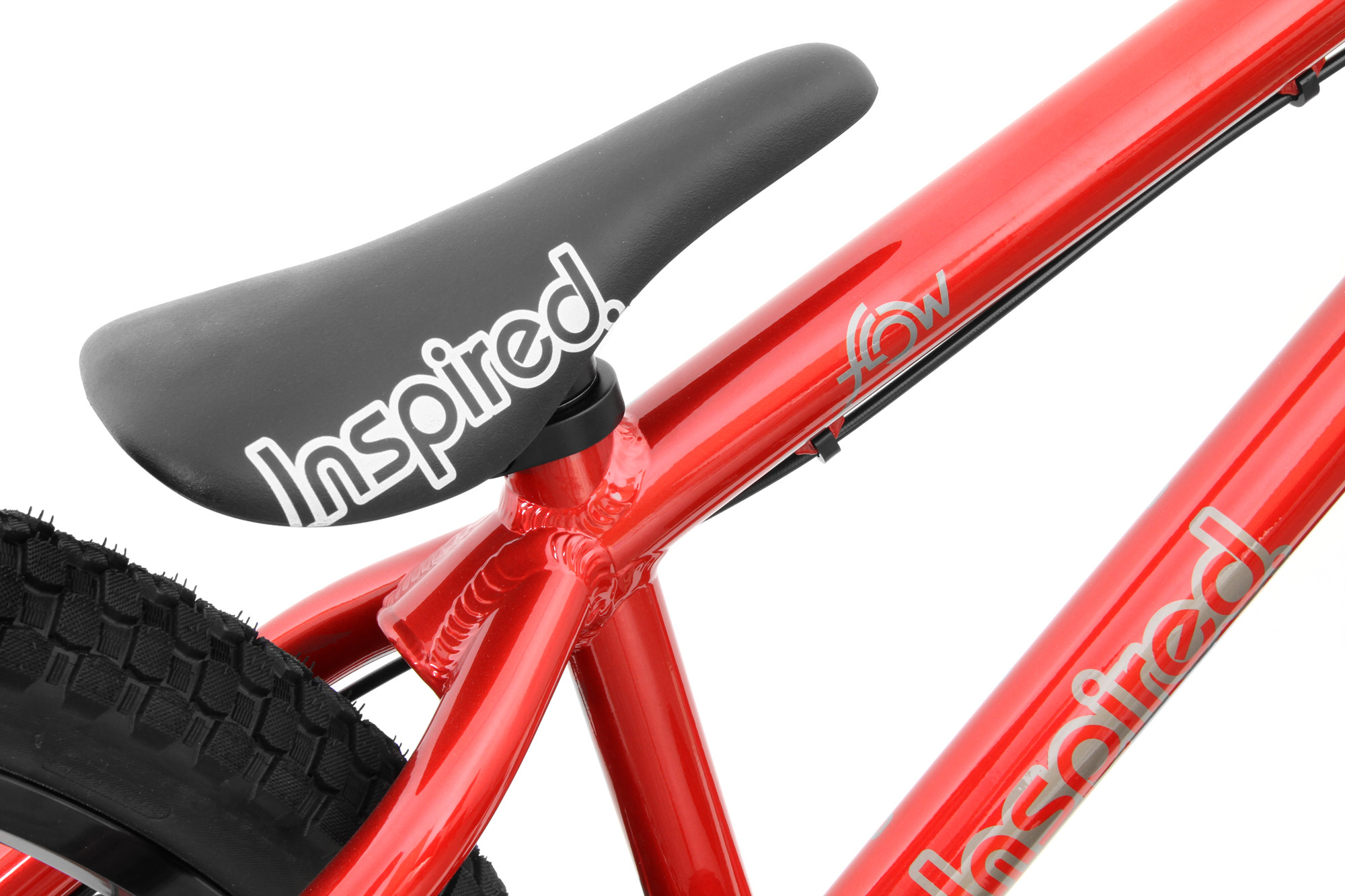

Seating

- Saddle: Integrated, Black
- Seatpost: Integrated Alloy
- Seat Clamp: Inspired, 28.6mm, Black

Geometry

- Wheelbase: 850mm
- Chainstay: 320mm
- BB Height: +15mm
- Head Angle: 73˚

Weight
- 9.94kg (including Trialtech Race pedals and Magura MT4 brakes)

* Please note: Additional costs apply.
