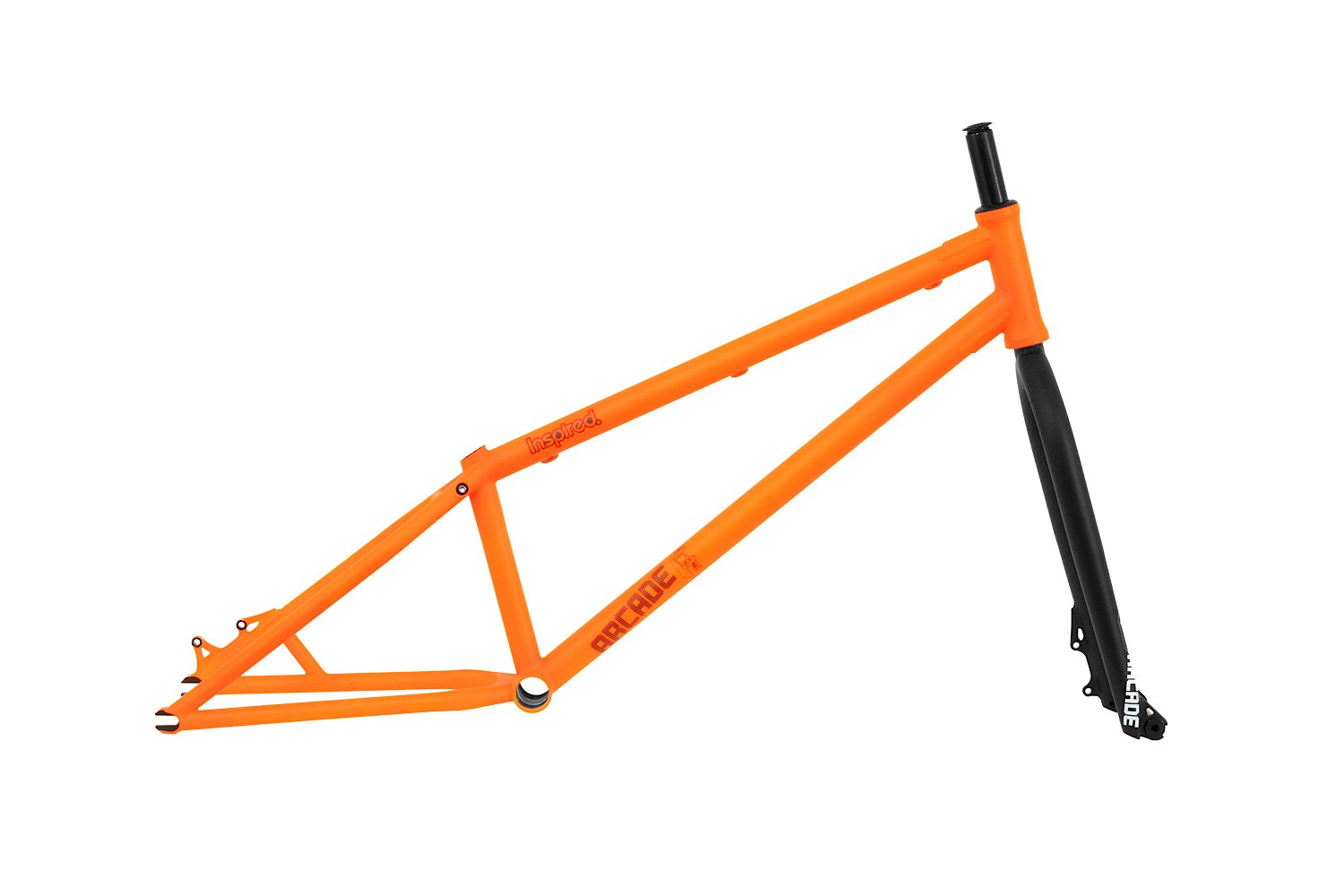

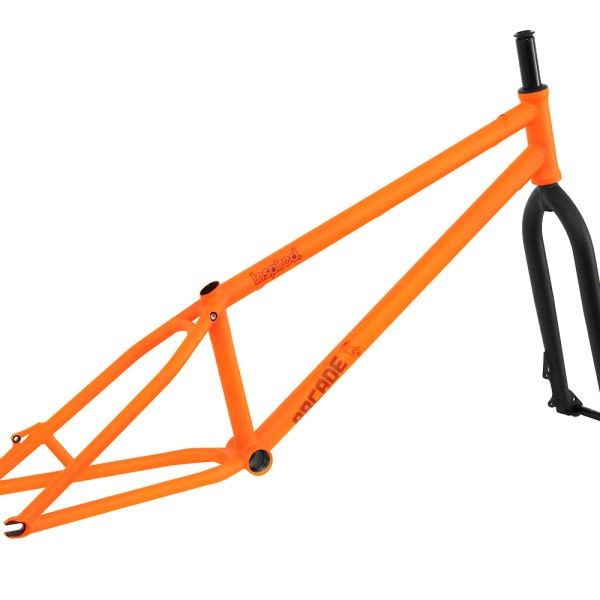

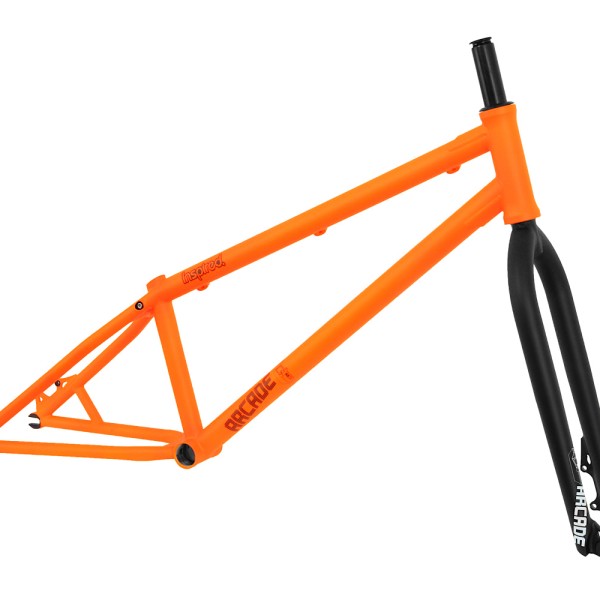

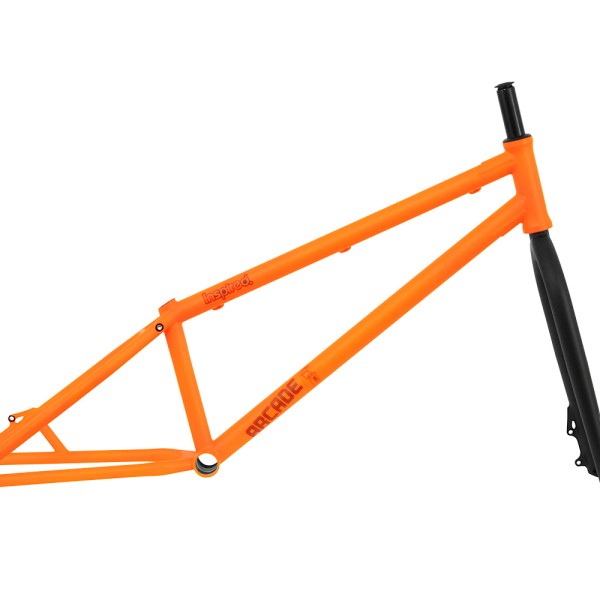

Inspired Arcade Frame Kit
Arcade frame kit specification.
- Frame: Inspired Arcade, Satin Fluro Orange

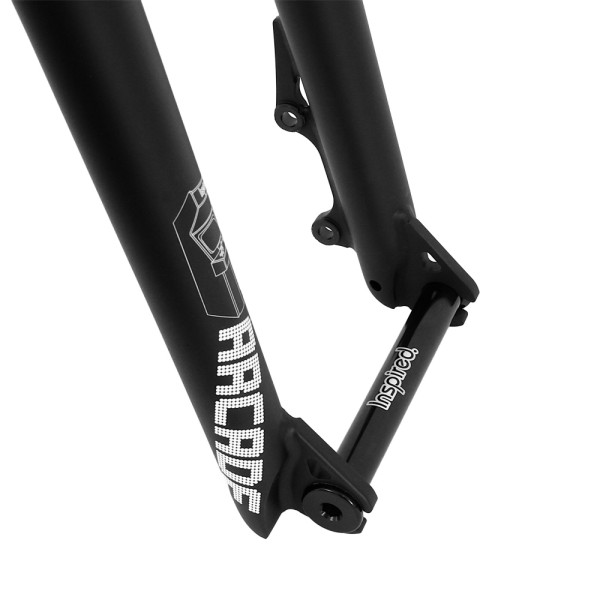

- Forks: Inspired Arcade, 15mm Axle (included), integrated crown race, Matt Black
- Headset: Inspired Sealed Bearing Integrated, 1-1/8", Black
- Chain tensioner: Inspired Arcade, Stainless Steel, Micro Chain Tugs, Pewter

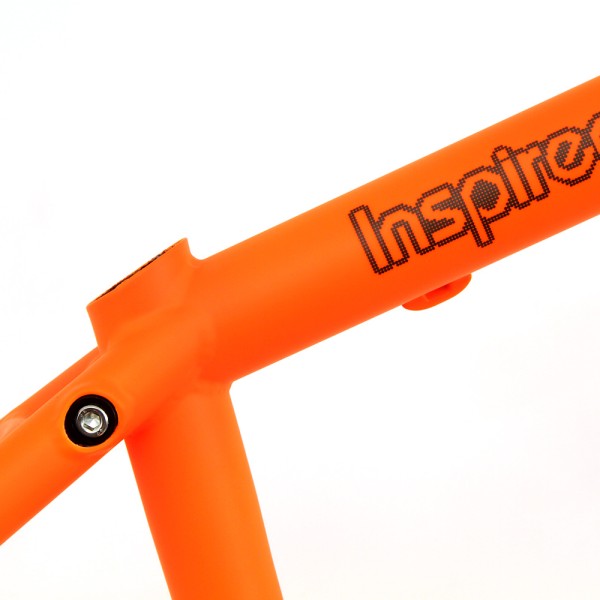

- Seatclamp: Integrated
- Weight: 3.84kg
Geometry
- Wheelbase: 1000mm (measured with Arcade fork)
- Chainstay: 362mm
- BB Height: +25mm
- Head Angle: 74.5˚
Specification
- Seatpost: 27.2mm

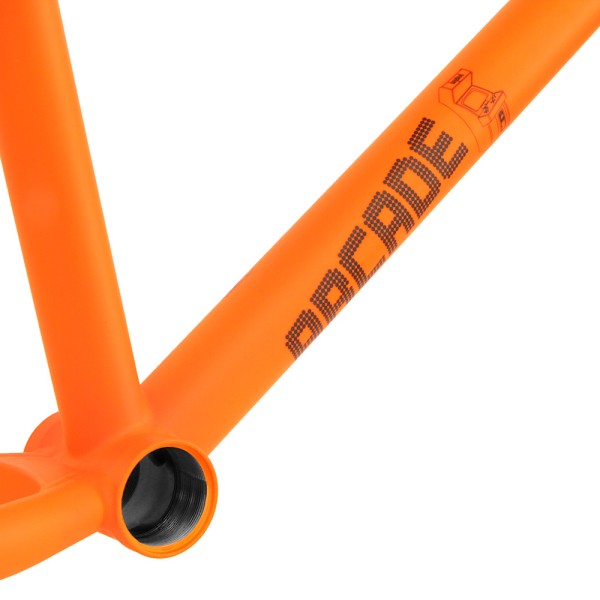

- BB shell: 68mm
- Tubing: Cr-moly steel
- Tyre clearance: 24 x 2.4"

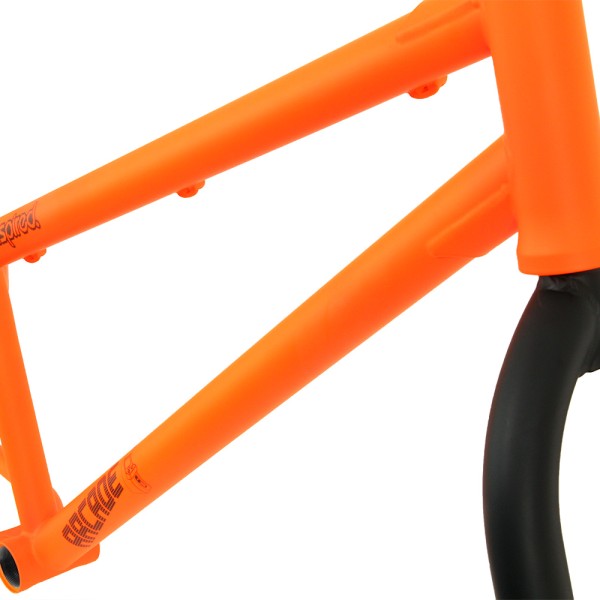

- Headtube: 1-1/8" integrated bearing

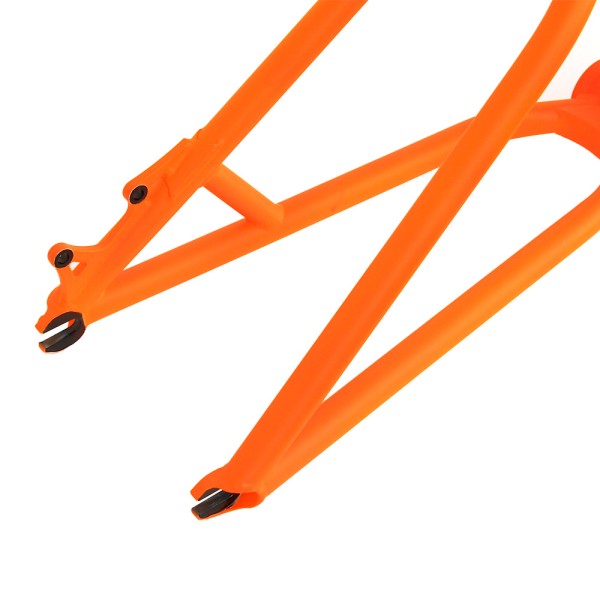

- Dropouts: 10mm horizontal, 135mm spacing
- Disc Mount: +20mm IS (Designed to run a maximum rotor size of 185mm, using a larger rotor will void the warranty)
Documentation
Axle Assembly Instructions (0.4MB)
Horizontal Dropout Instructions (1.3MB)
Additional Information
This frame is designed for 22:15 or 22:16 gear ratios (requires longer chain tug bolts). Other combinations may fit but could result in insufficient chain tension or prevent the rear wheel from fitting in the dropouts.
Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
