Inspired Arcade Integrated Headset Bearing
- Sealed 1 1/8" cartridge bearings to fit a wide range of frames including Inspired Arcade and Alias 20.1/20.2.
- Campagnolo/Campy standard design is used on many high end BMX frames.

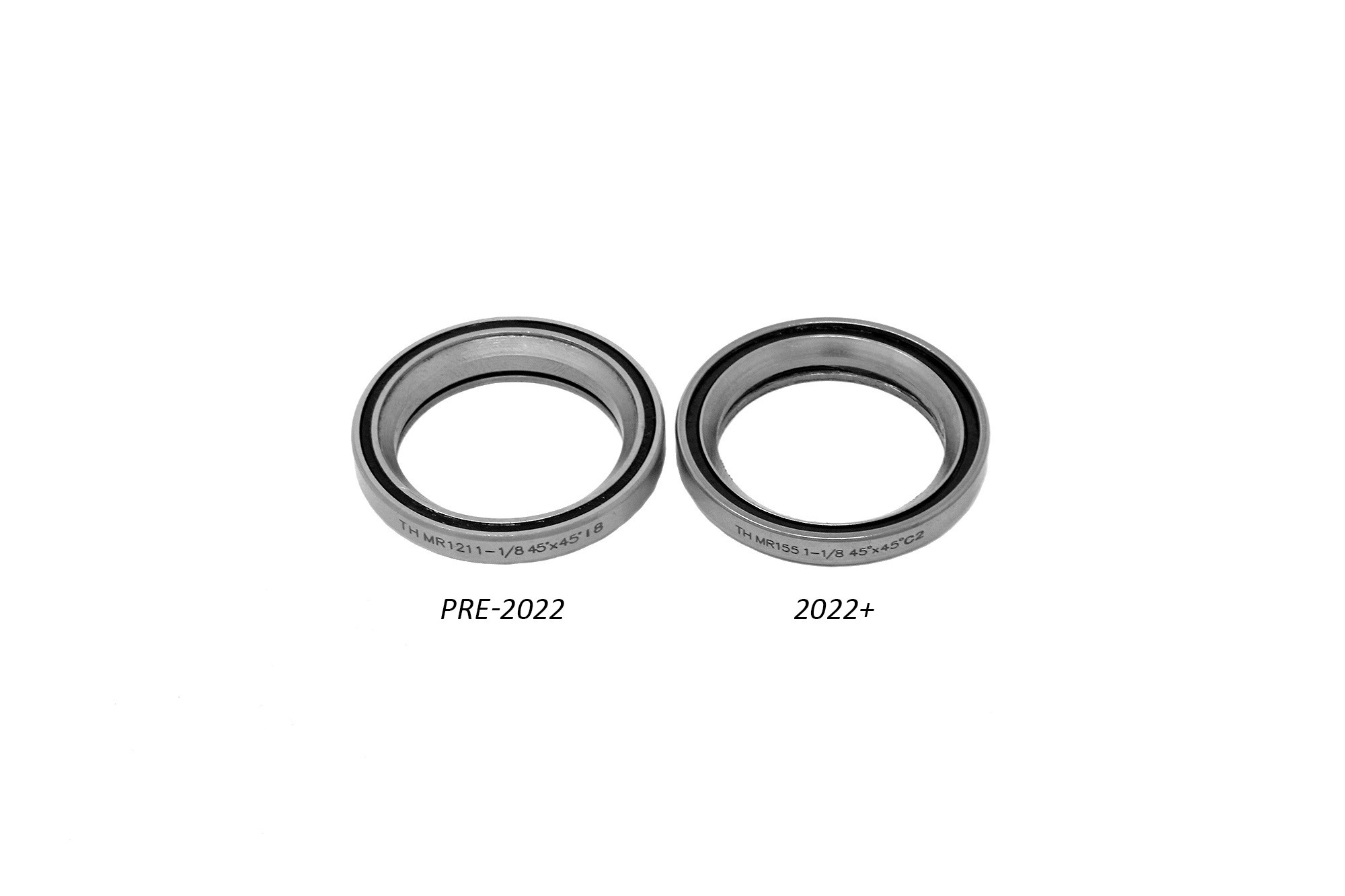

- Two specifications available. Pre-2022, this bearing features a small lip around the bottom of the inner race which may not work with all crown races (see image). 2022+ has no lip and a slightly lower height. Please check compatibility before ordering.
- Sold individually.
Dimensions:

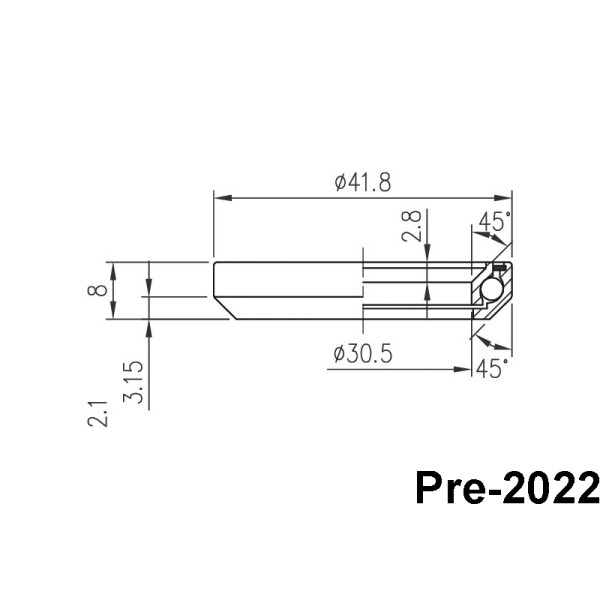

- Pre-2022 (with lip)
45° inner race angle
45° outer race angle
41.8mm outside diameter
30.5mm inner diameter
8mm overall depth

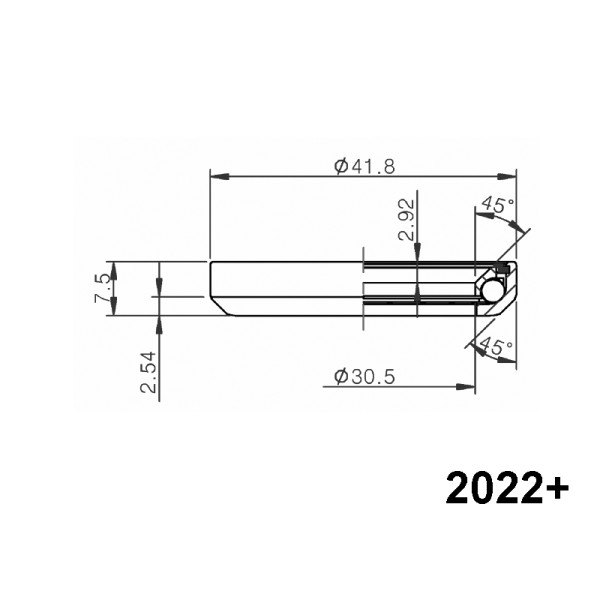

- 2022+ (no lip)
45° inner race angle
45° outer race angle
41.8mm outside diameter
30.5mm inner diameter
7.5mm overall depth
