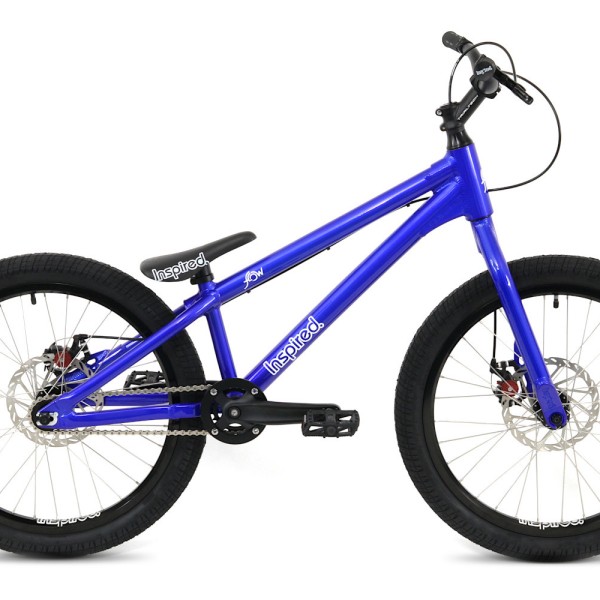

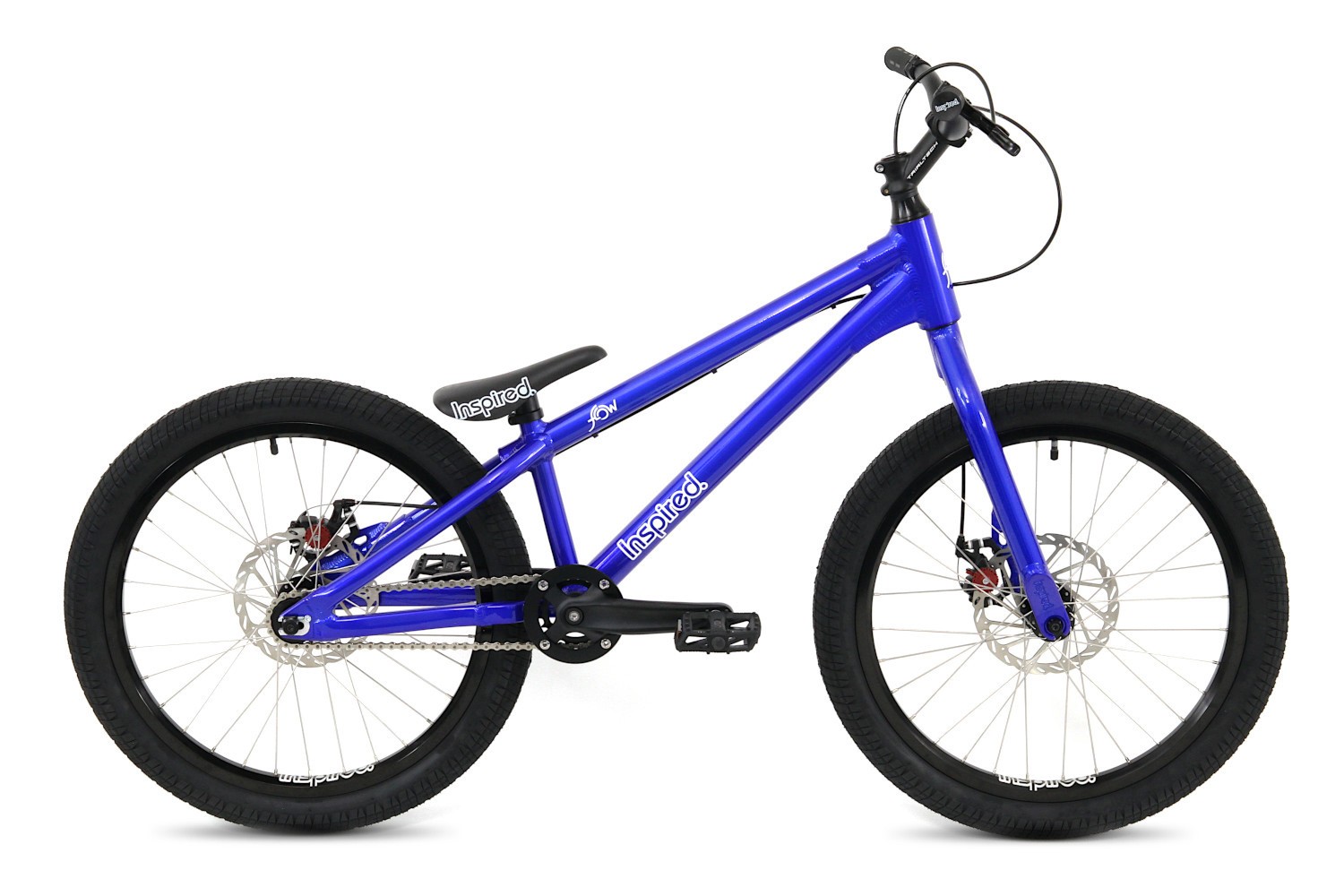

Flow 22" Bike
Complete Flow 22" bike specification.
Frame and Forks

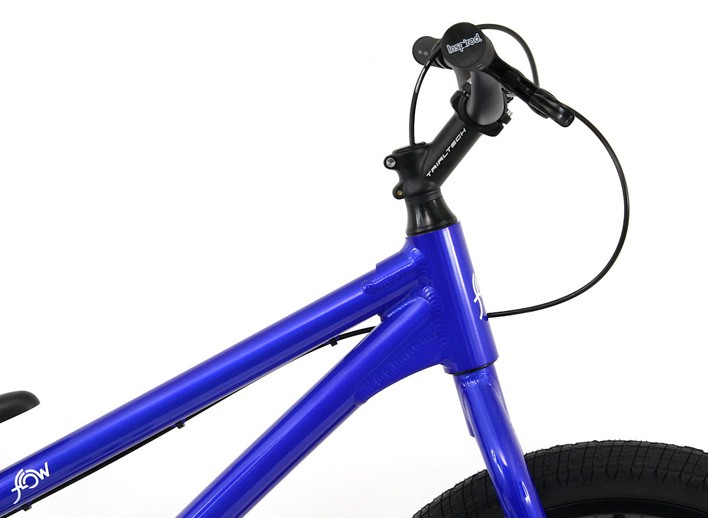

- Frame: Inspired Flow 22", Gloss XP Blue
- Forks: Inspired Flow V2 (Disc Only) 22", Alloy, Screw-In Top Cap, Gloss XP Blue
Wheels

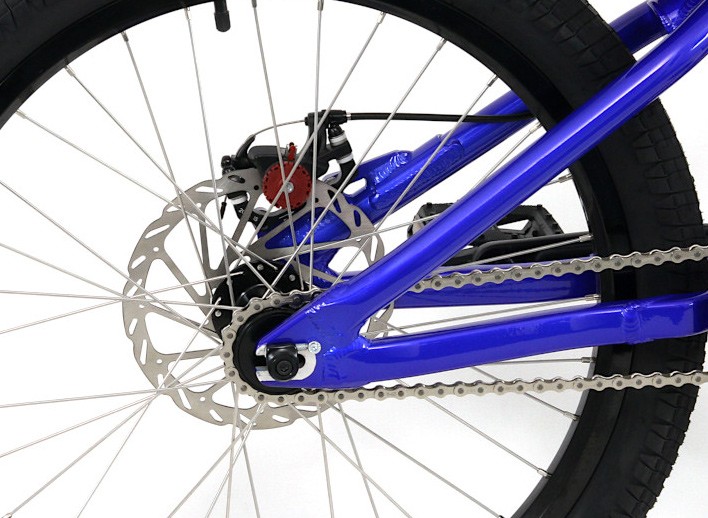

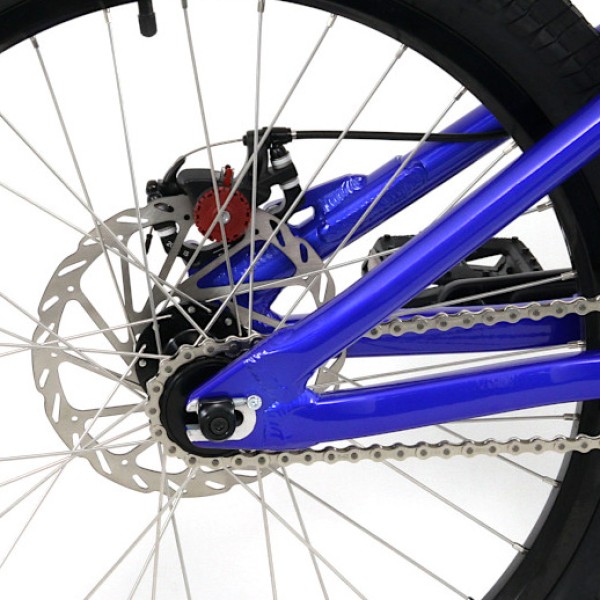

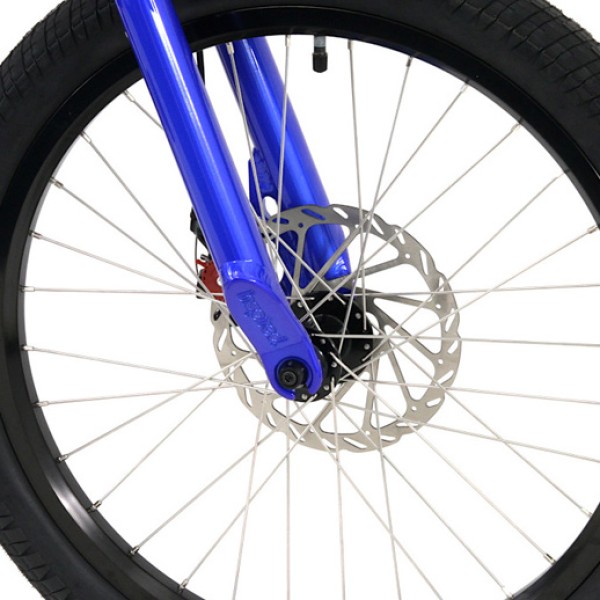

- Front Hub: Trialtech Disc, 32h, 100mm wide, Sealed Bearings, Black
- Rear Hub: Trialtech Disc, 32h, 135mm wide, Sealed Bearings, Black
- Chain Tensioner: Flow Chain Tug
- Rims: Inspired Flow, 22", Black
- Spokes: Stainless PG
- Tyres: Inspired Street 22" x 2.3"
Brakes
- Brake Set: Avid FR5 Lever/BB5 Caliper, 180mm Disc or Magura MT4 180mm Disc, Black (Optional Extra) or Hope Tech 3 - Trial Zone 180mm Disc, Black (Optional Extra) or Magura MT7, HC3 Blade, 180mm Disc, Black (Optional Extra) or NEW Hope Tech 4 - Trial Zone 180mm Disc, Black (Optional Extra)
Drivetrain

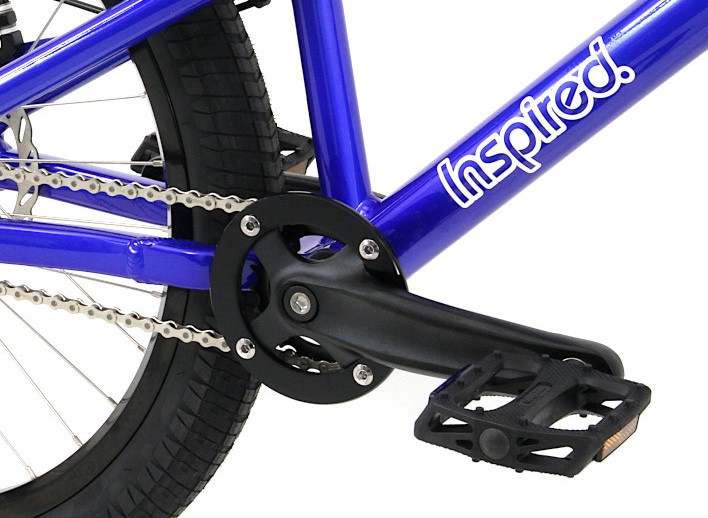

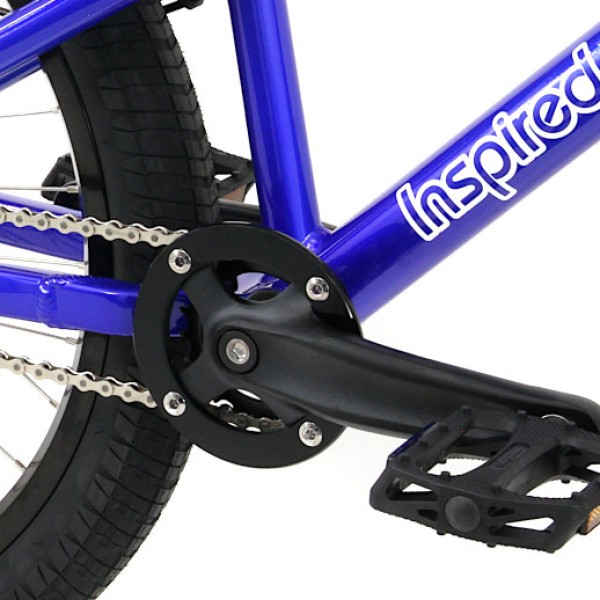

- Cranks: Trialtech, 170mm, Black
- Front Sprocket: Trialtech, 22T
- Chain: KMC S1
- Freewheel: Trialtech 16T, 36 engagement
- Pedals: Wellgo Nylon Platform, Black
- Bottom Bracket: Sealed Square Taper
- Bashring: 22T Trials
Seating

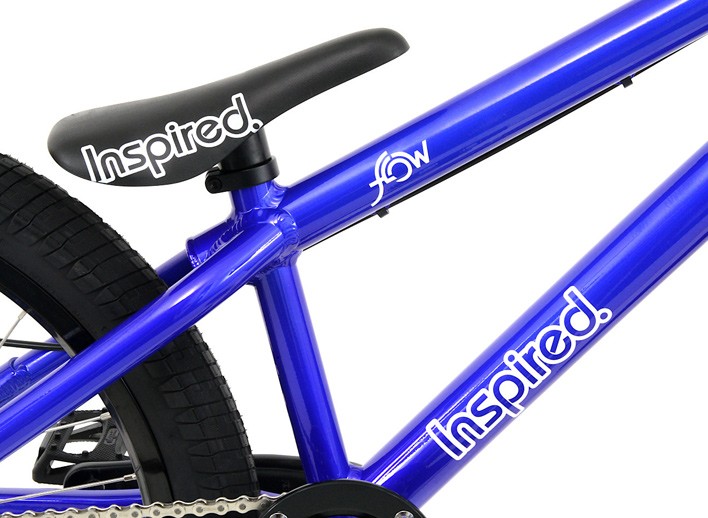

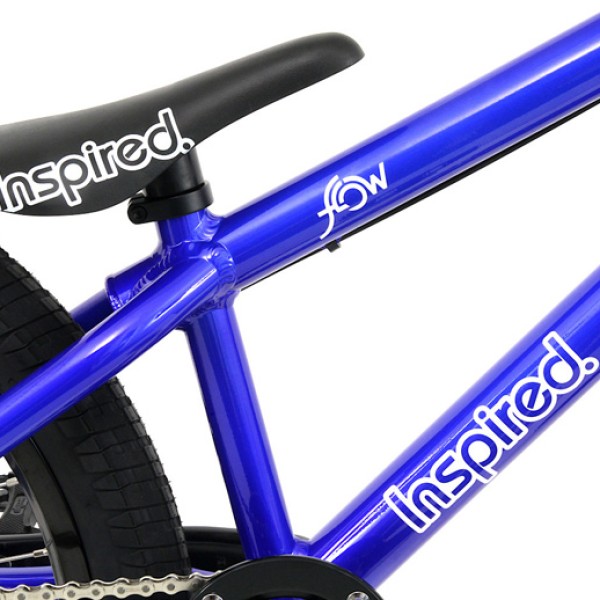

- Saddle: Inspired Integrated, Black
- Seatpost: Integrated Alloy
- Seat Clamp: Inspired, 28.6mm, Black
Steering

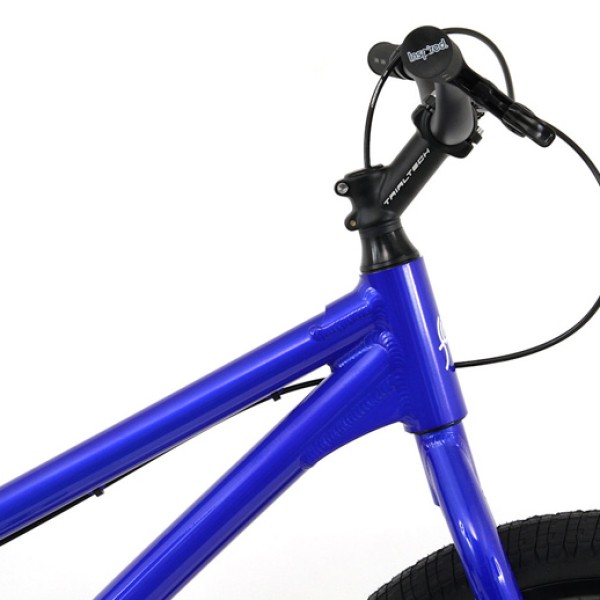

- Headset: Trialtech, 44mm Internal, 1-1/8", Black
- Stem: Trialtech Forged, 90mm x 35˚, Black
- Grips: Inspired Rubber, Black
- Handlebars: Inspired Flow Medium Riser, Black
Geometry
- Wheelbase: 905mm
- Chainstay: 337mm
- BB Height: +15mm
- Head Angle: 73˚
Weight
- 10.68kg (Including pedals and Avid BB5 brakes)
Documentation
Flow Tensioner Instructions (0.4MB)
Note: Front brake hoses will NOT be routed through the fork. This additional service can be provided by the dealer/distributor at their own discretion.
