Inspired Fourplay Pro Frame Kit

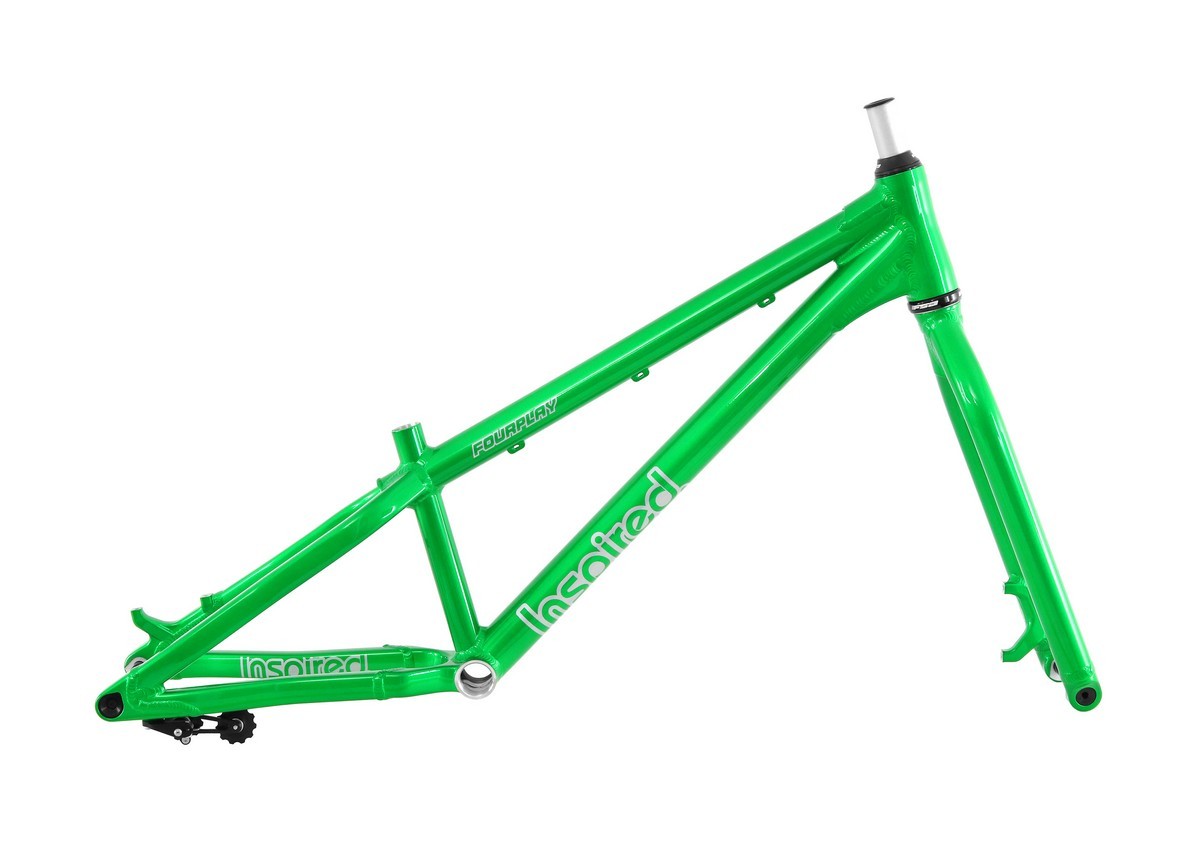

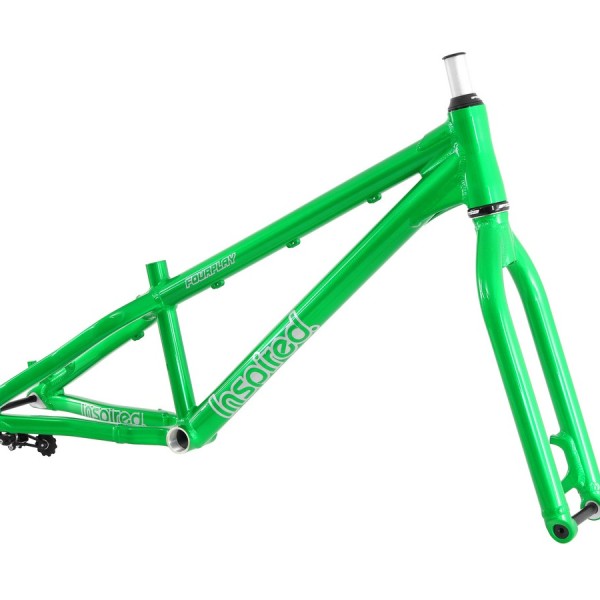

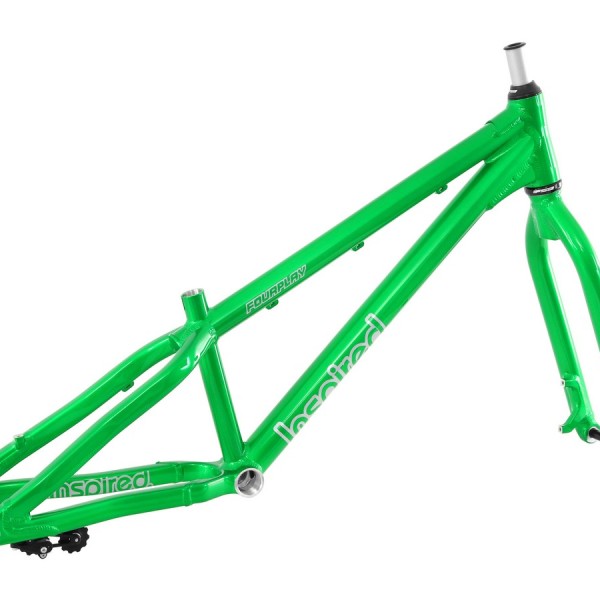

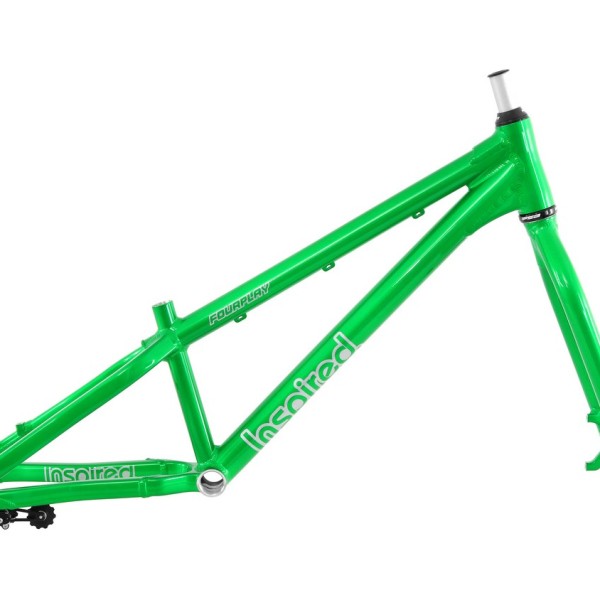

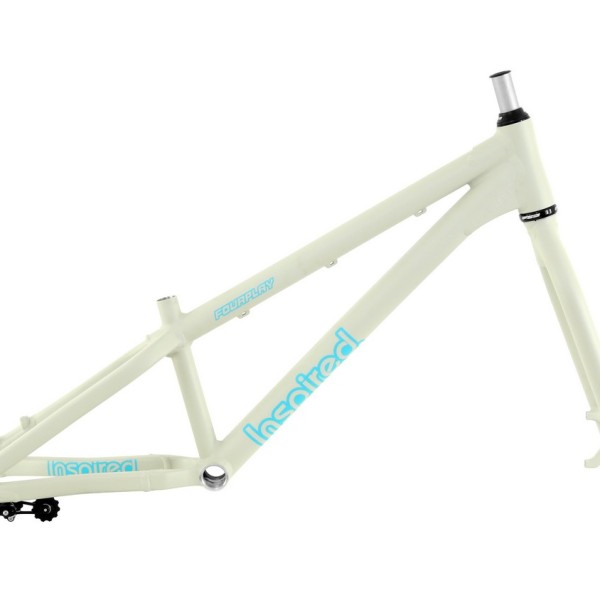

- Frame: Inspired Fourplay 24", 12mm Pro bolt through axle, Gloss Metallic Green or Satin Grey

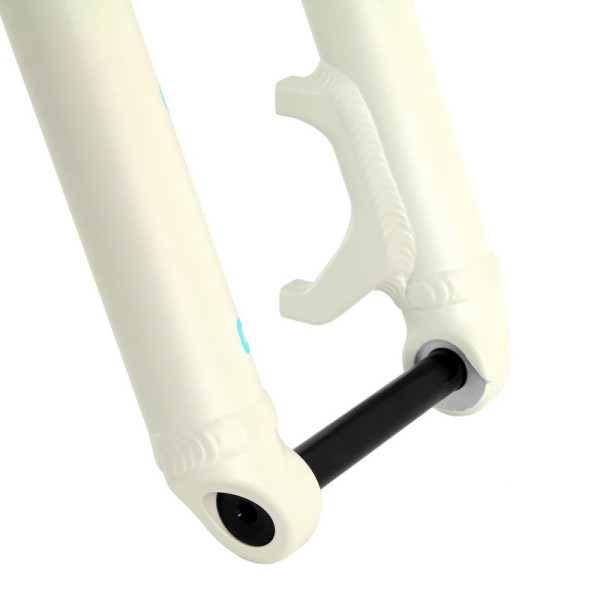

- Forks: Inspired Fourplay Pro, Taper 1.5" steerer, 15mm bolt through axle, Colour Matched to Frame Choice
- Headset: FSA, 1-1/8" Integral Upper, 1.5" Standard Lower, Black
- Tensioner: Inspired Team Tensioner (not shown in photos)
- Weight: 3.28kg
Geometry
- Wheelbase: 994mm (measured with Fourplay fork)
- Chainstay: 362mm
- BB Height: +10mm
- Head Angle: 73˚
Specification

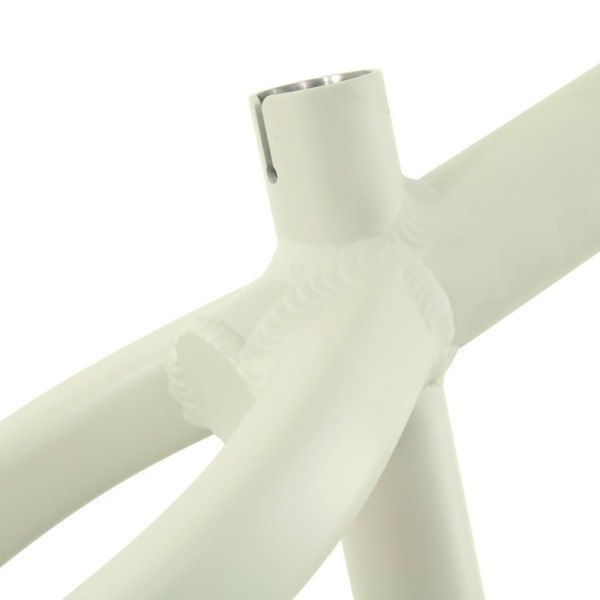

- Seatpost: 27.2mm
- Seatclamp: 31.8mm

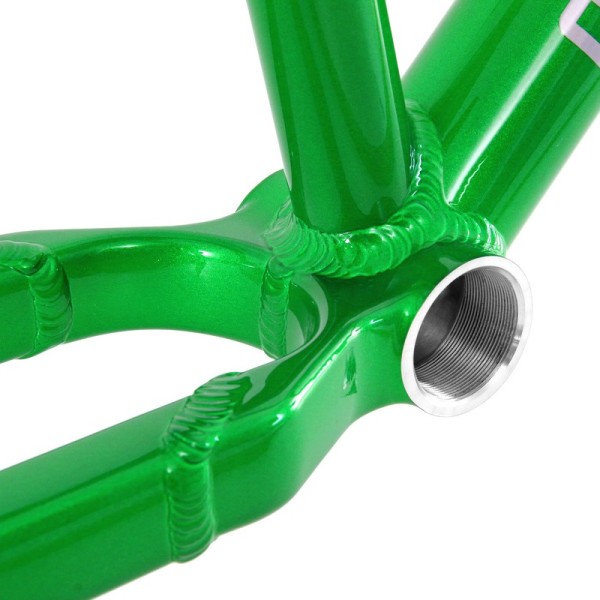

- BB shell: 73mm
- Tyre clearance: 24 x 2.7"

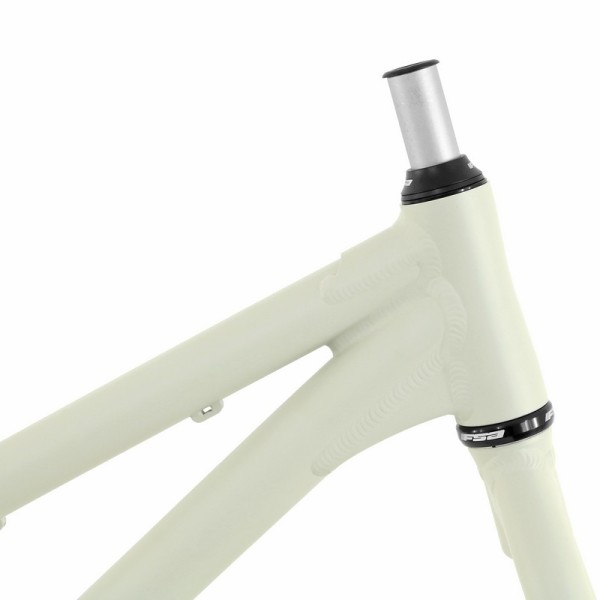

- Headtube: Tapered (1-1/8" Integral Upper, 1.5" Standard Lower)

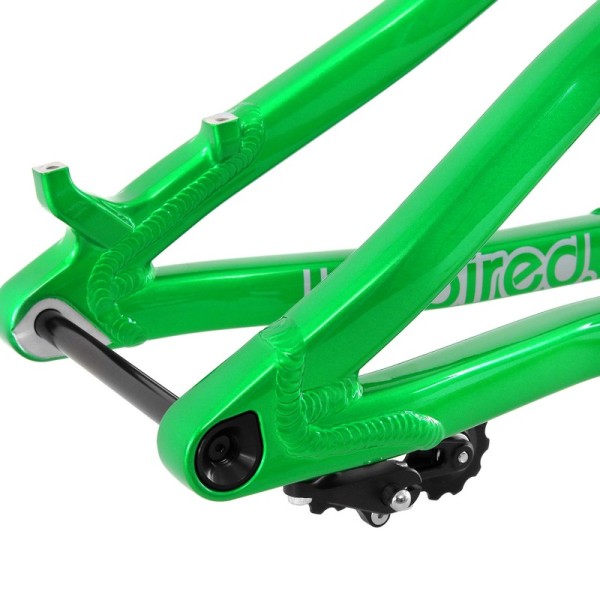

- Dropouts: 12mm bolt through, 135mm spacing
- Chainline: 51mm (Recommended minimum with 22T chainring)
- Disc Mount: +20mm Post Mount (Designed to run a maximum rotor size of 185mm, using a larger rotor will void the warranty)
Documentation
Pro 15mm Fork Axle Assembly Instructions (0.6MB)
Pro 12mm Frame Axle Assembly Instructions (0.6MB)
Single Sided Tensioner Instructions (1.1MB)
Team Sprung Tensioner Instructions (1.6MB)
Additional Information
Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
