Now supplied with Hope Pro 5 Hubs!

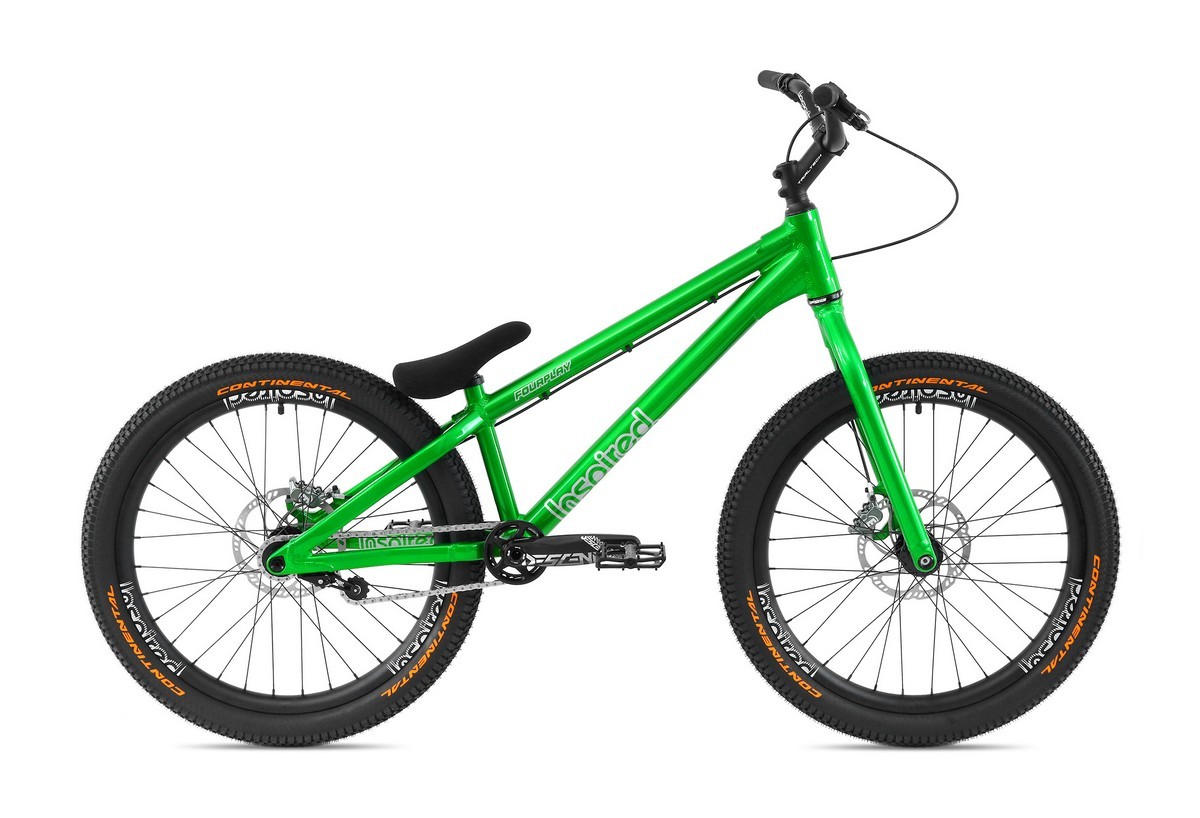

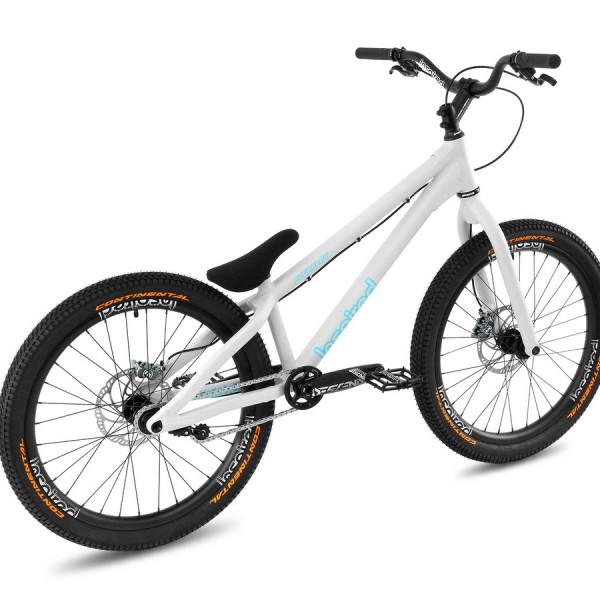

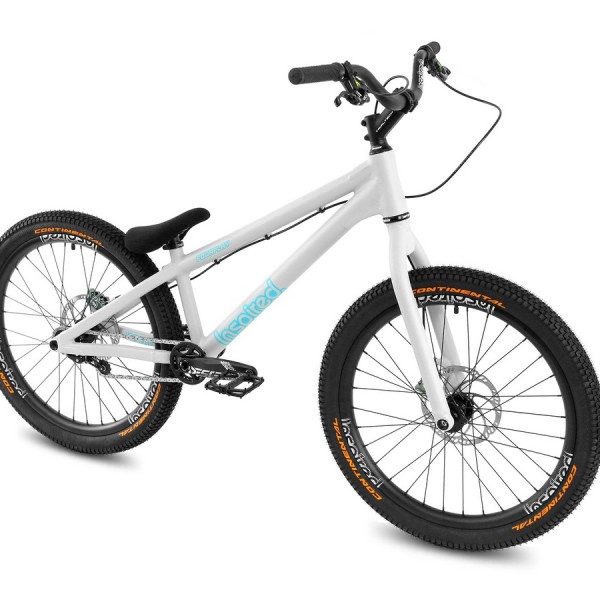

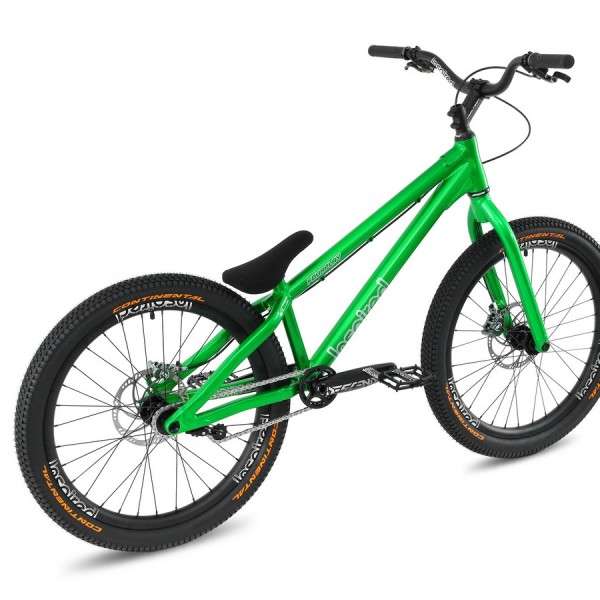

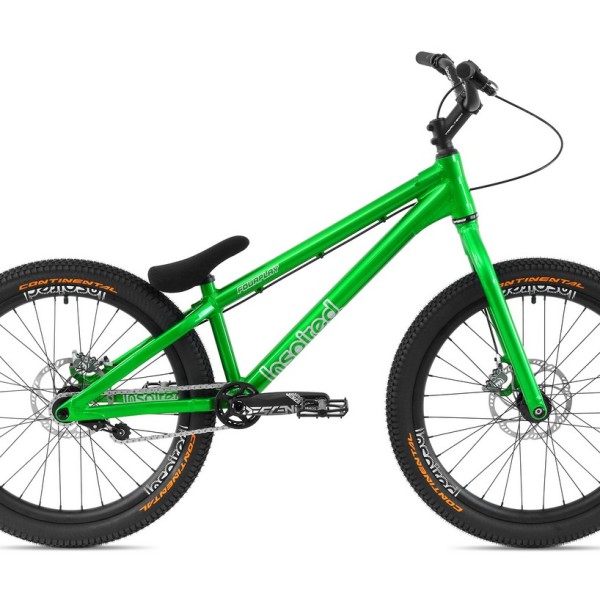

Complete Fourplay Team 24" bike specification.

Frame and Forks

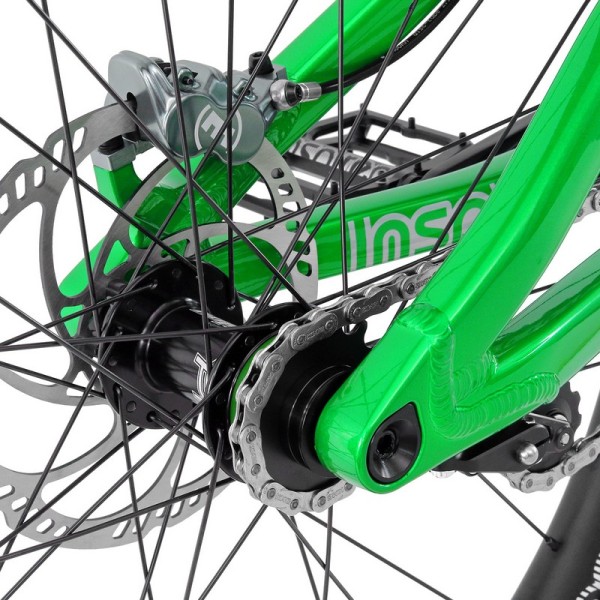

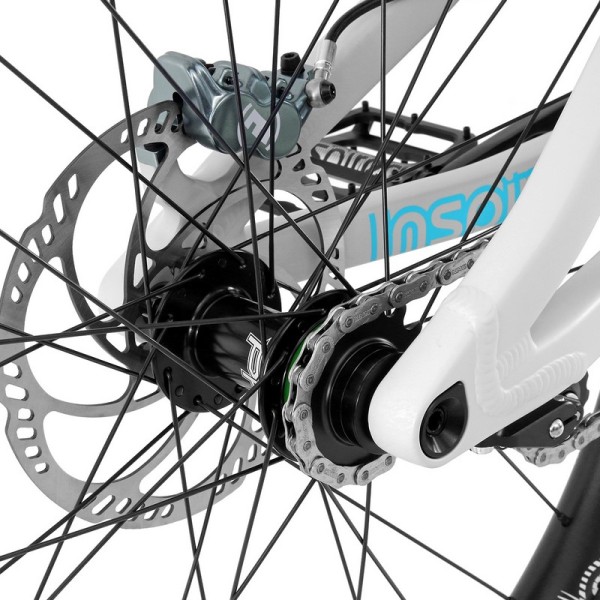

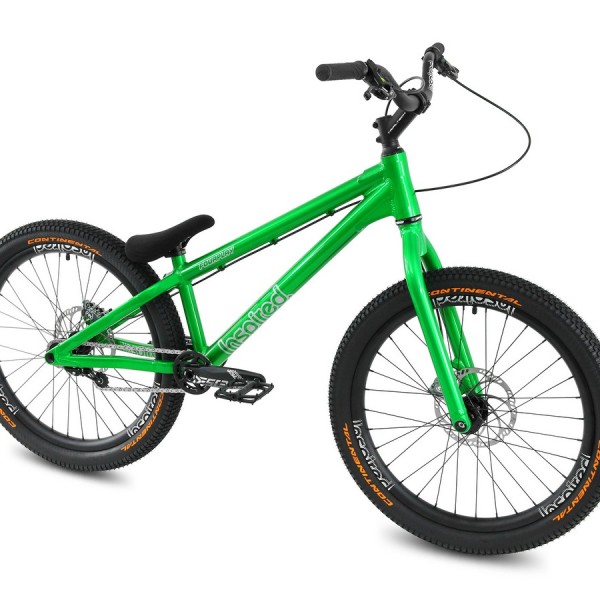

- Frame: Inspired Fourplay 24", 12mm bolt through axle (with expanding wedge), Gloss Metallic Green or Satin Grey

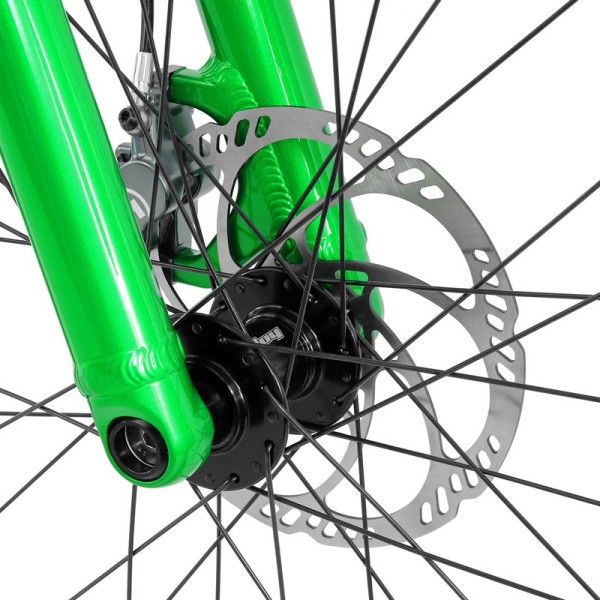

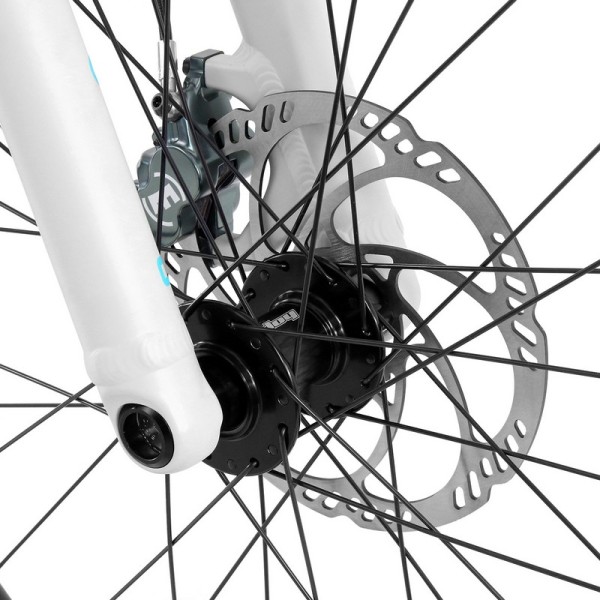

- Forks: Inspired Fourplay Team, Taper 1.5" steerer, 20mm bolt through axle (with captive bolt system), Colour matched to frame

Wheels
- Front hub: Hope Pro 5, 20mm bolt through axle, 32h, 110mm wide, Black
- Rear hub: Hope Pro 5 Trials, 12mm bolt through axle, 32h, 135mm wide, Black (Custom made)
- Chain Tensioner: Trialtech Sport Single Sided Sprung, Black
- Rims: Inspired V2 Team (tubeless-ready), Satin Black
- Spokes: Sapim Race DB, Black
- Tyres: Continental MacAskill 24 x 2.4"

* Optional I9 Wheel Upgrade
- Front Hub: Industry Nine Hydra Classic 6B Front, 20mm bolt through axle, 32h, 110mm Non-Boost, Black
- Rear Hub: Industry Nine Hydra Classic SS 6B Rear, 12mm bolt through axle, 32h, 135mm, Black

Brakes

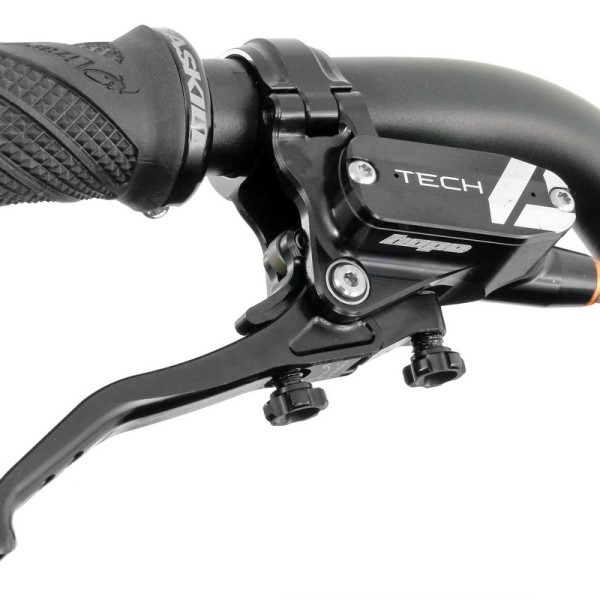

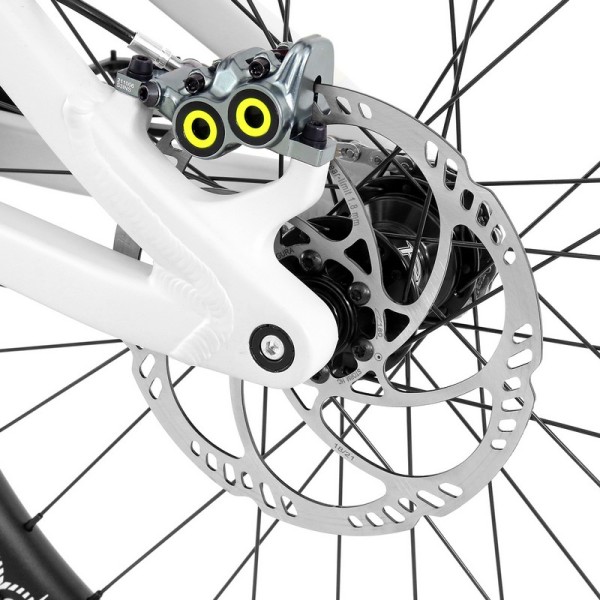

- Brake set: Hope Tech 3 - Trial Zone 180mm Disc, Black, Magura MT7, HC3 Blade, 180mm Disc, Black (Optional Extra) or NEW Hope Tech 4 - Trial Zone 180mm Disc, Black (Optional Extra)

Drivetrain

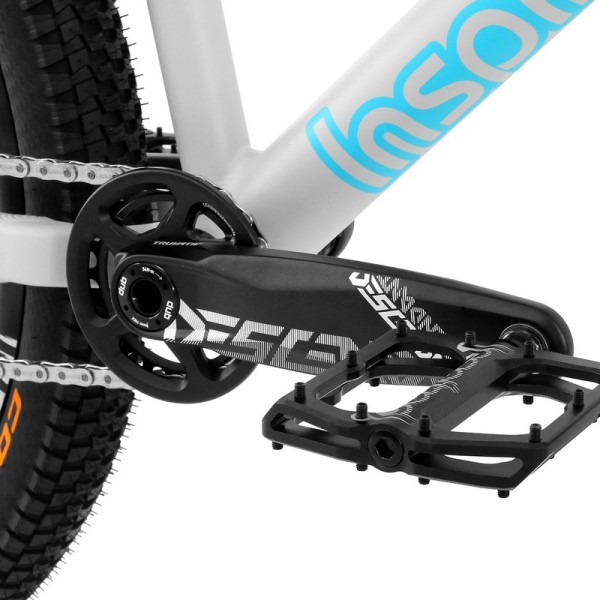

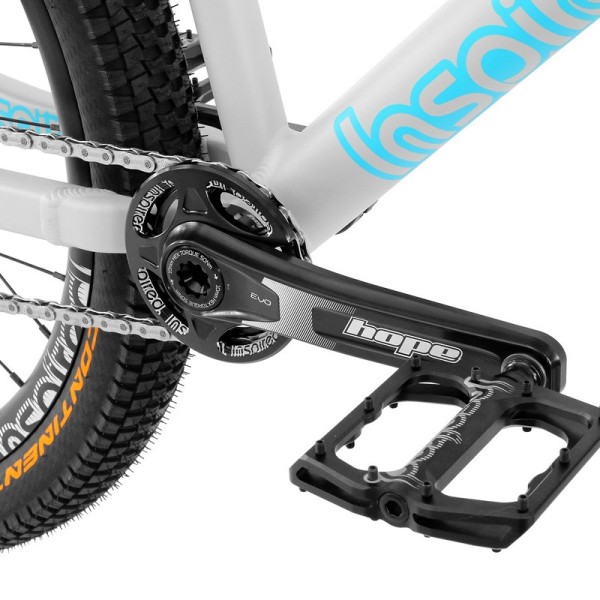

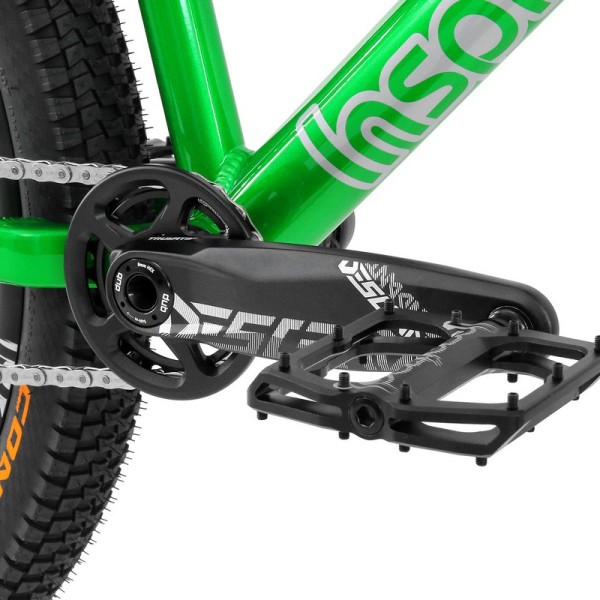

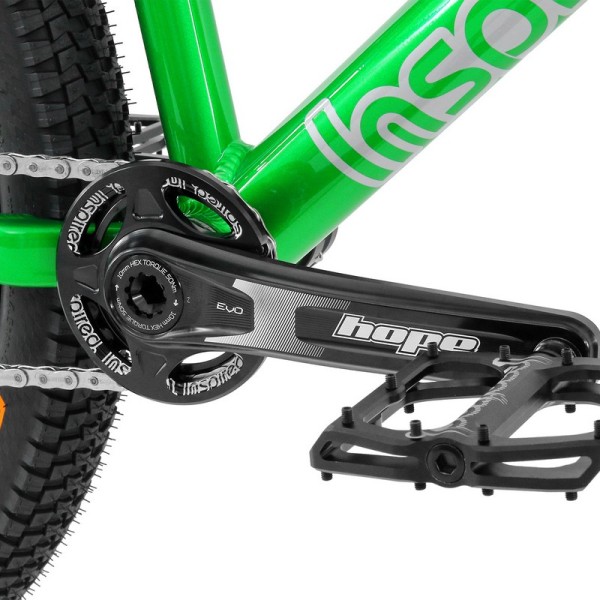

- Cranks: Truvativ Descendant 7K DUB, 175mm, Satin Black or Hope Evo, 175mm, Black (Optional Extra)
- Front Sprocket: 22T Inspired Descendant Integrated V2, Satin Black or 22T Inspired Hope Integrated, Black (Optional Extra)
- Chain: KMC Z1eHX-N
- Rear Sprocket: Trialtech Sport Splined, 16T, Black
- Pedals: Inspired Team V3 Platform, Satin Black

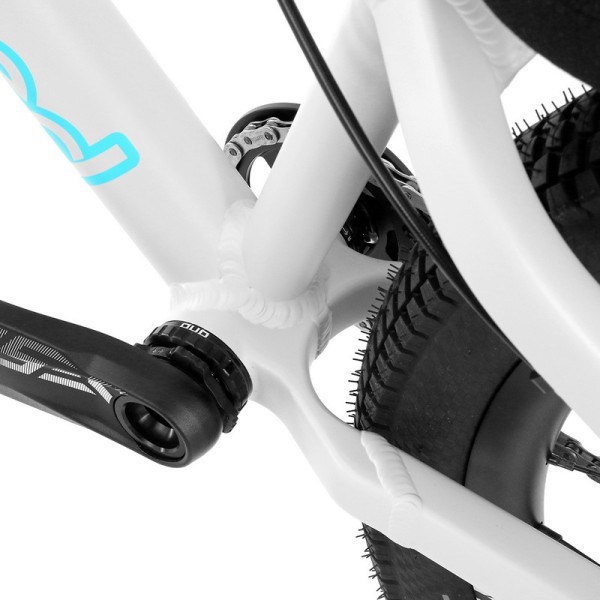

- Bottom Bracket: Truvativ DUB or Hope (Optional Extra)
- Bashring: Inspired Descendant Integrated V2, Satin Black or Inspired Hope Integrated, Black (Optional Extra)

Seating

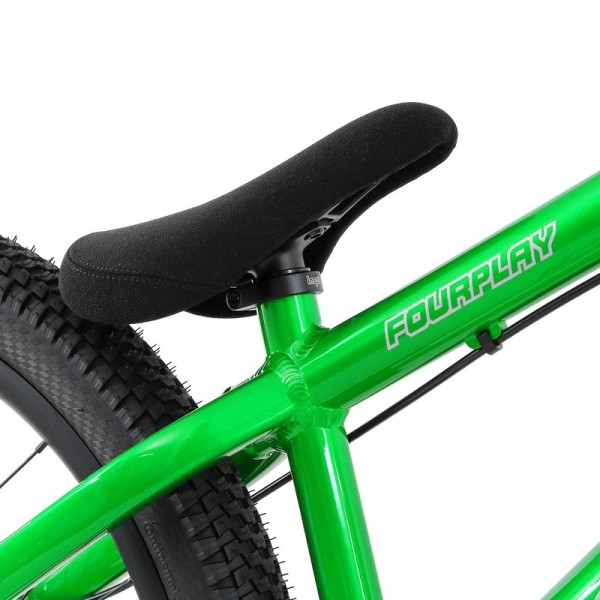

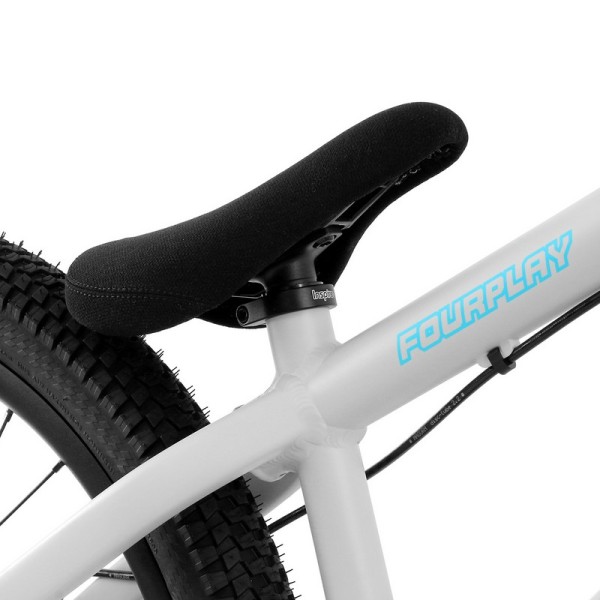

- Saddle: Inspired Tripod Kevlar, Medium, Black
- Seatpost: Inspired Tripod
- Seat Clamp: Inspired, 31.8mm, Black

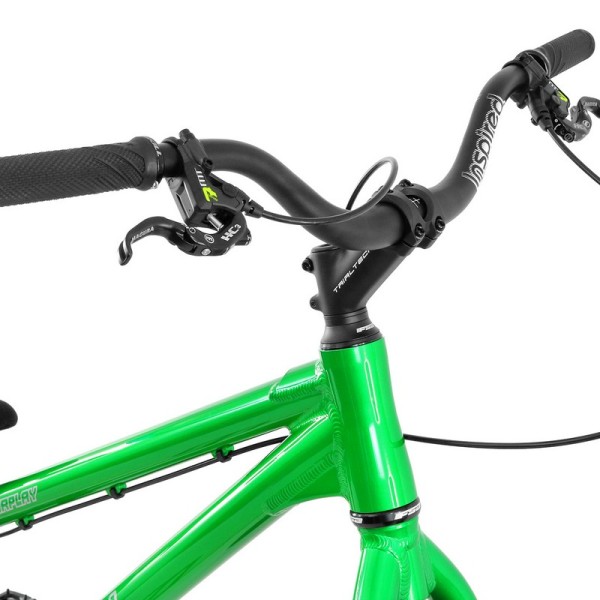

Steering
- Headset: FSA, 1-1/8" Integral Upper, 1.5" Standard Lower, Satin Black

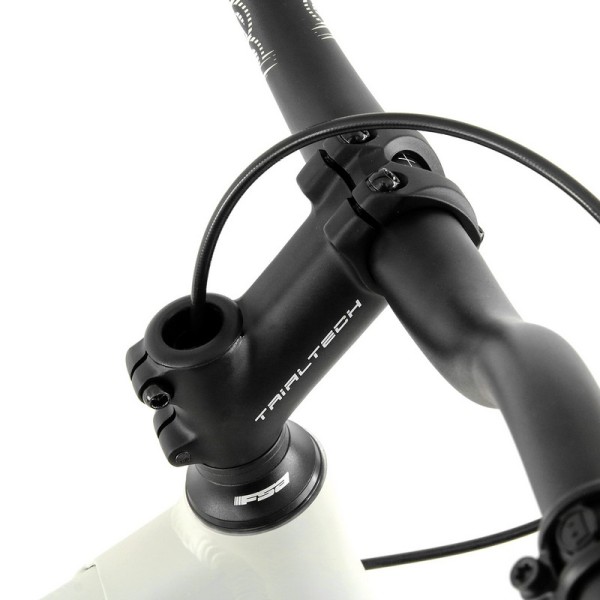

- Stem: Trialtech Sport, 90mm x 35˚, Satin Black
- Grips: Lizard Skins 'MacAskill' Lock-On, Black

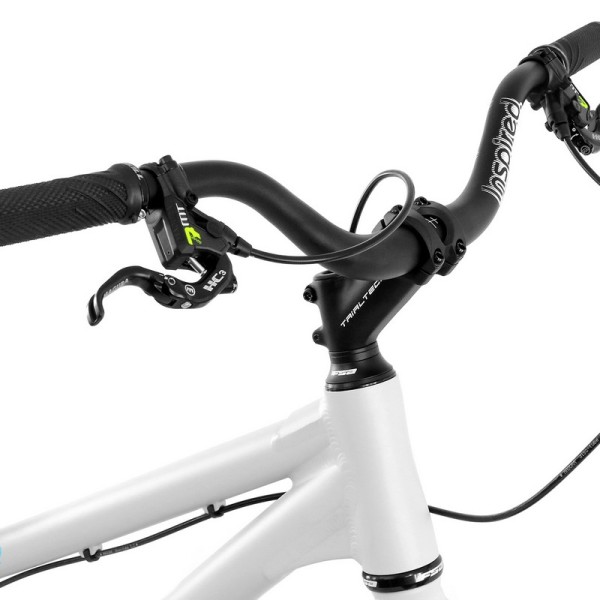

- Handlebars: Inspired Team 7075 Riser, Satin Black

Geometry
- Wheelbase: 994mm
- Chainstay: 362mm
- BB Height: +10mm
- Head Angle: 73˚

Weight
- 10.50kg (including Descendant crankset, pedals & Hope Tech 3 brakes)

Documentation
Pro 15mm Fork Axle Assembly Instructions (0.6MB)
Pro 12mm Frame Axle Assembly Instructions (0.6MB)
Team 20mm Fork Axle Assembly Instructions (0.7MB)
Team 12mm Frame Axle Assembly Instructions (0.9MB)
Team Sprung Tensioner Instructions (1.6MB)

Note: Front brake hoses will NOT be routed through the fork. This additional service can be provided by the dealer/distributor at their own discretion.

Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
