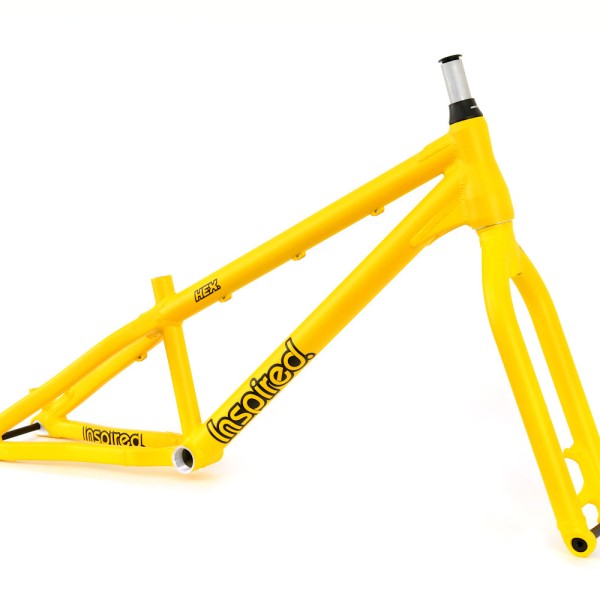

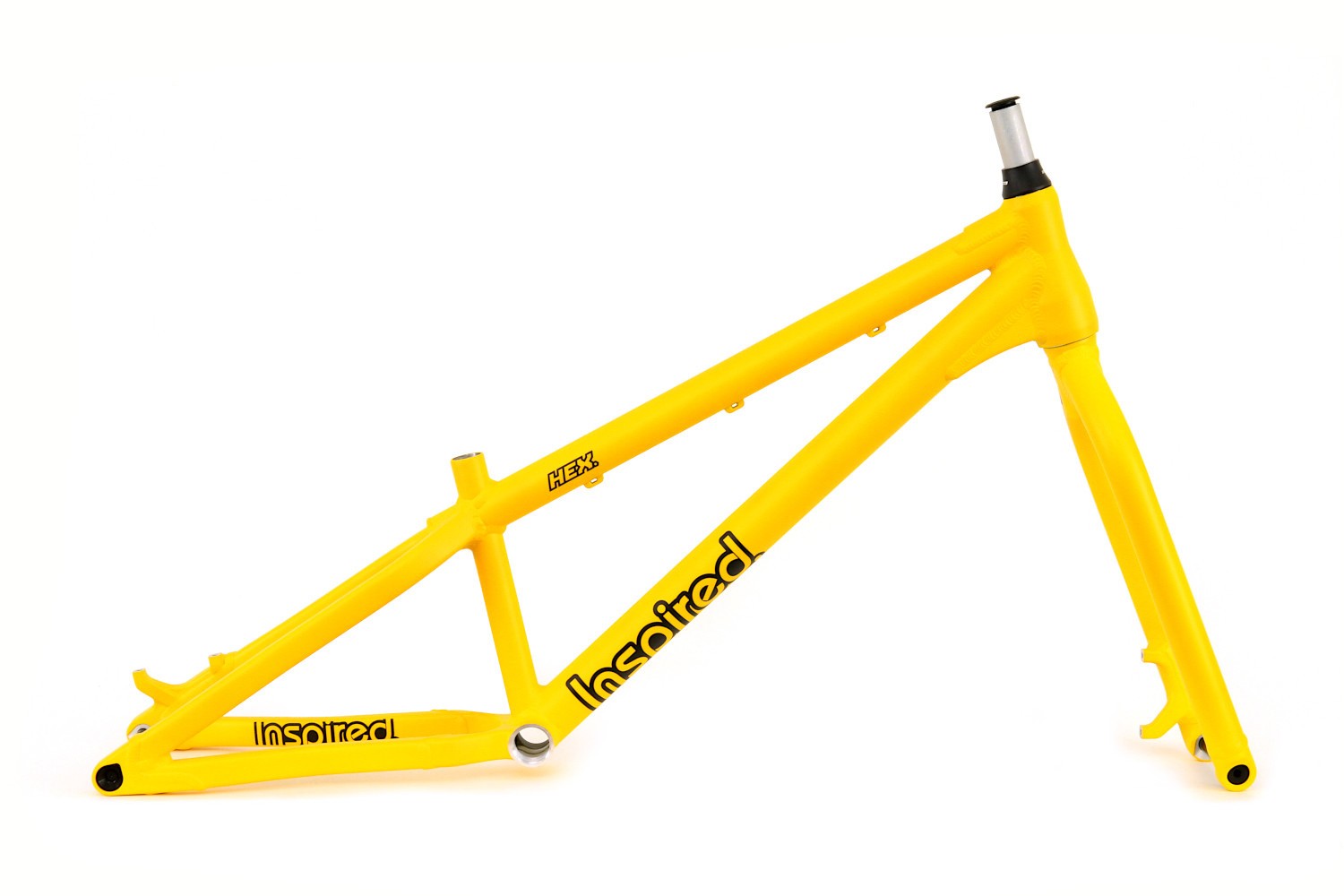

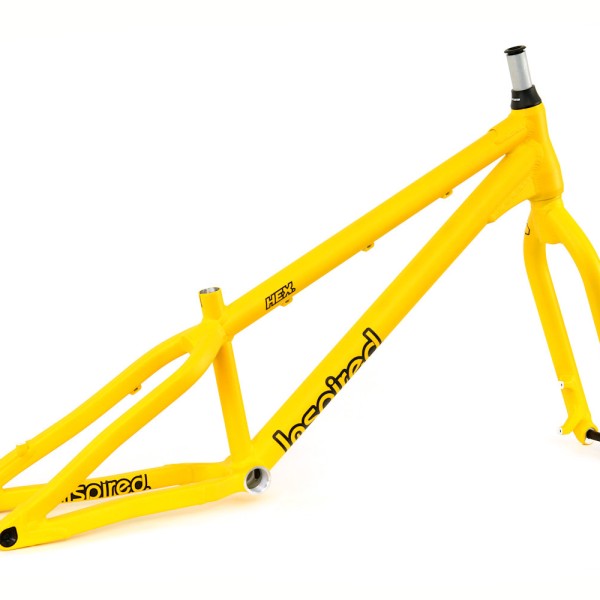

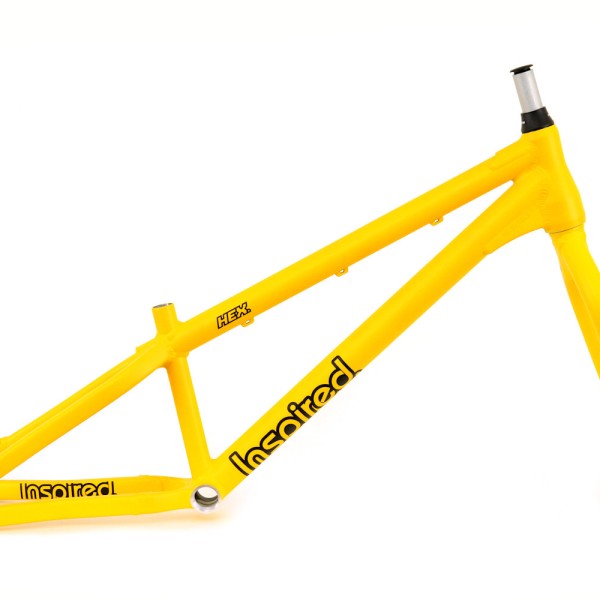

The Hex design and geometry allows riders to benefit from the compact and manoeuvrable geometry of our famous 24" frames, but with the associated benefits that come with 26" wheels (such as increased stability and familiarity for traditional MTB riders).

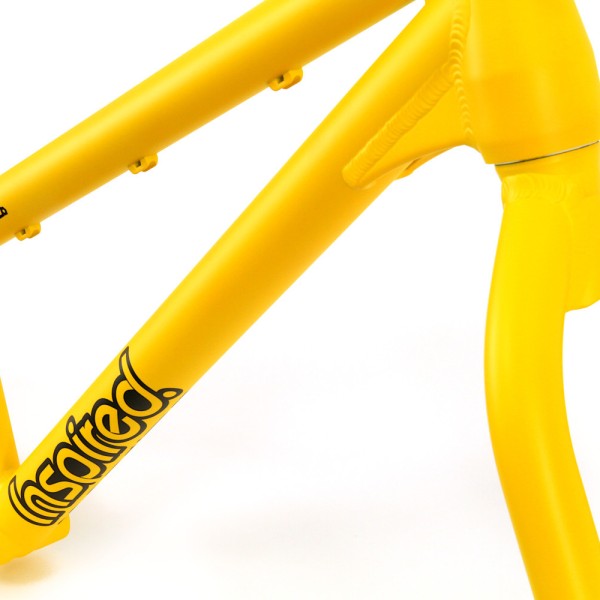

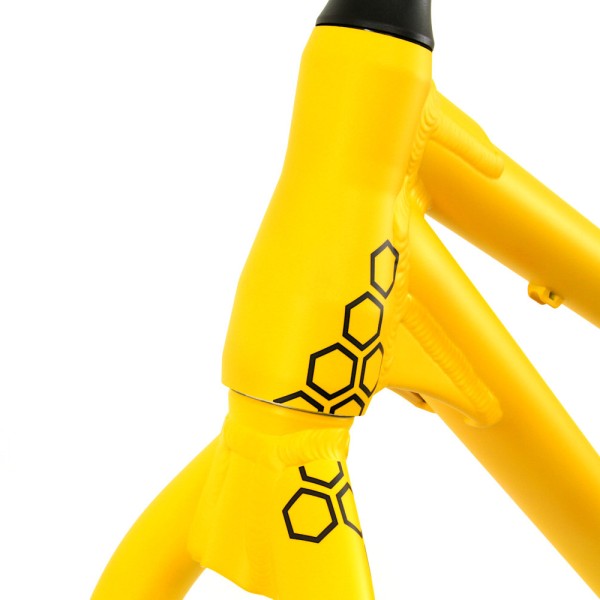

The front of the frame features an upgraded butted tubeset to help increase strength even further and is complemented by using external top and down tube gussets. An all-new integrated tapered head tube allows for increased weld contact area with the down tube to increase durability further.

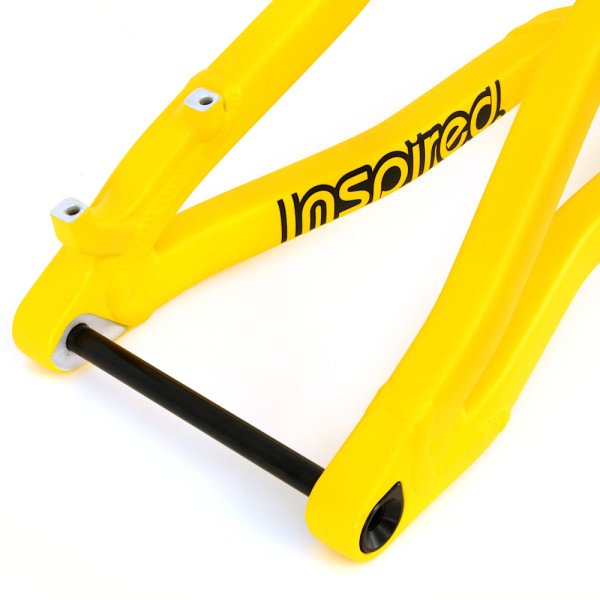

The Hex features a hollow bottom bracket and chainstay yoke which has been designed to offer excellent clearance for both the tyre and the chainring. The custom design increases stiffness and strength at this important area and the internal CNC machining means the weight has been reduced significantly. A 12mm bolt through axle, which screws into a custom tapered insert within the frame dropout, ensures that everything stays in place no matter what you throw at it.

The frame and fork feature reinforced Post Mount disc brake mounts (maximum rotor size 185mm) thereby removing the need for additional brake caliper adaptors. The rear of the bike features exclusive-design seat and chainstay tubing to improve crank and heel clearance. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength. The custom shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.

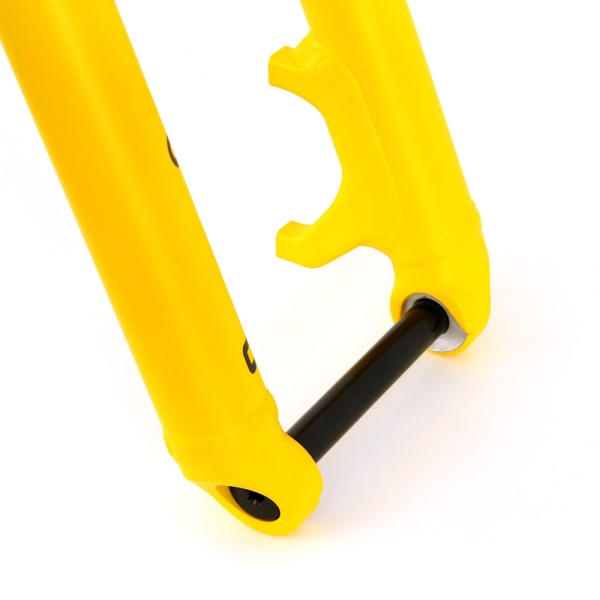

The Hex Pro fork features a tapered steerer and innovative crown construction for improved durability and reduced weight. A 15mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. Furthermore, increased tyre clearance at the fork crown area gives better clearance when routing the front brake hose through the steerer tube (via the custom screw-in top cap).

Available in Satin Yellow only.

Technical Information

- Frame: Inspired Hex 26", 12mm bolt through axle, Satin Metallic Yellow
- Forks: Inspired Hex Pro, Taper 1.5" steerer, 15mm bolt through axle, Satin Metallic Yellow
- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Black
- Tensioner: Inspired Team Sprung, Black
- Weight: 3.92kg

Geometry

- Wheelbase: 1023mm
- Chainstay: 380mm
- BB Height: +20mm
- Head Angle: 73.5˚

Specification

- Seatpost: 27.2mm
- Seatclamp: 31.8mm
- BB shell: 73mm
- Tyre clearance: 26 x 2.4"
- Headtube: Tapered (1-1/8" Integrated Upper, 1.5" Integrated Lower)
- Dropouts: 12mm bolt through, 135mm spacing
- Chainline: 51mm (Recommended minimum with 22T chainring)
- Disc Mount: +20mm Post Mount (recommended maximum rotor size: 185mm)

Pro 15mm Fork Axle Assembly Instructions (0.6MB)
Pro 12mm Frame Axle Assembly Instructions (0.6MB)
Team Sprung Tensioner Instructions (1.6MB)

Please note: Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
