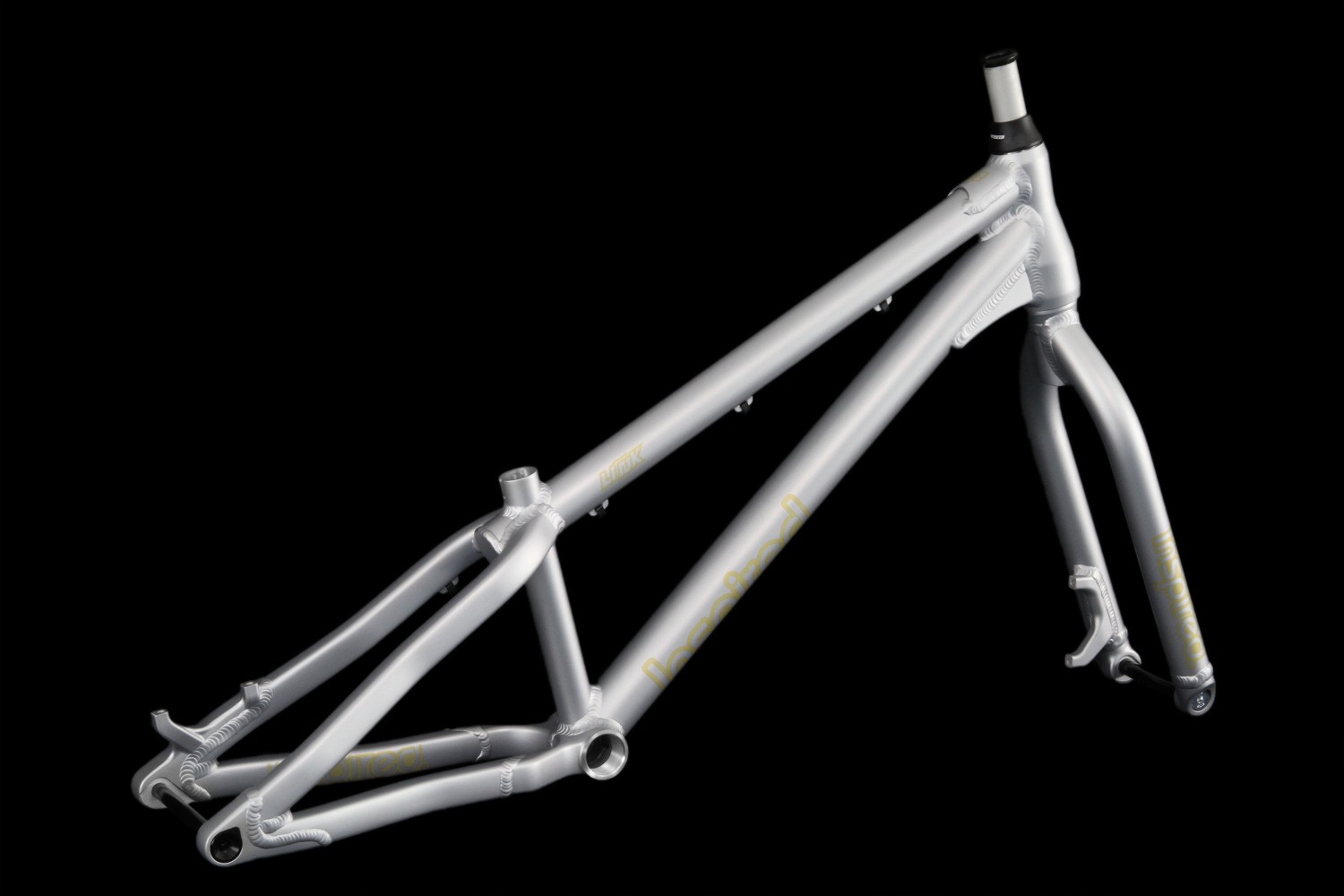

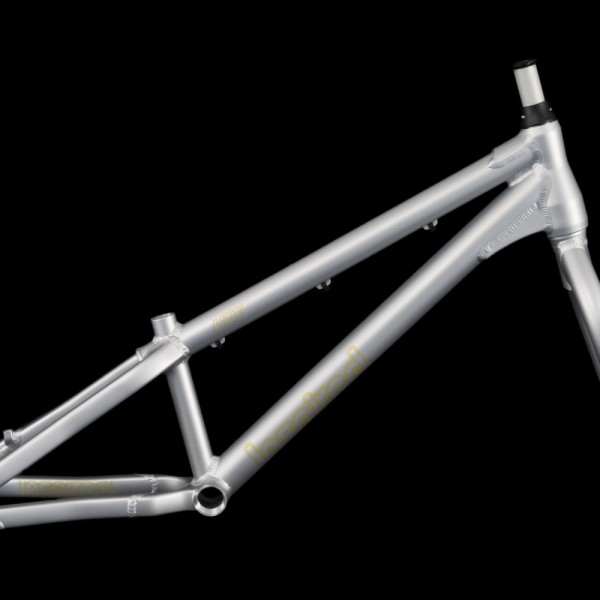

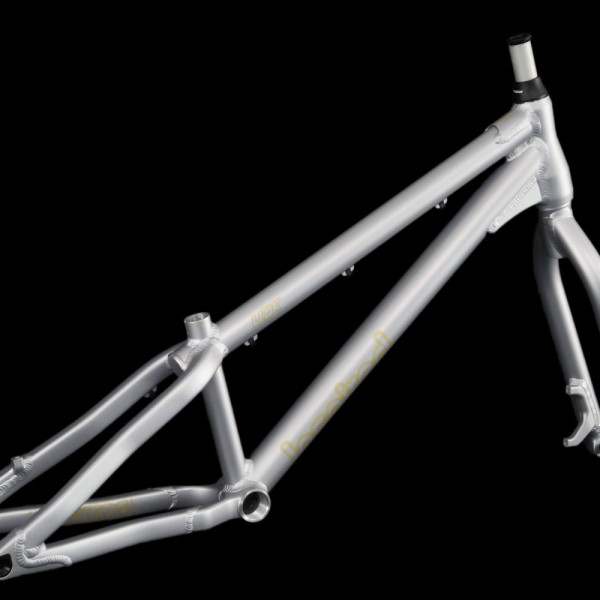

Inspired Link Pro Frame Kit

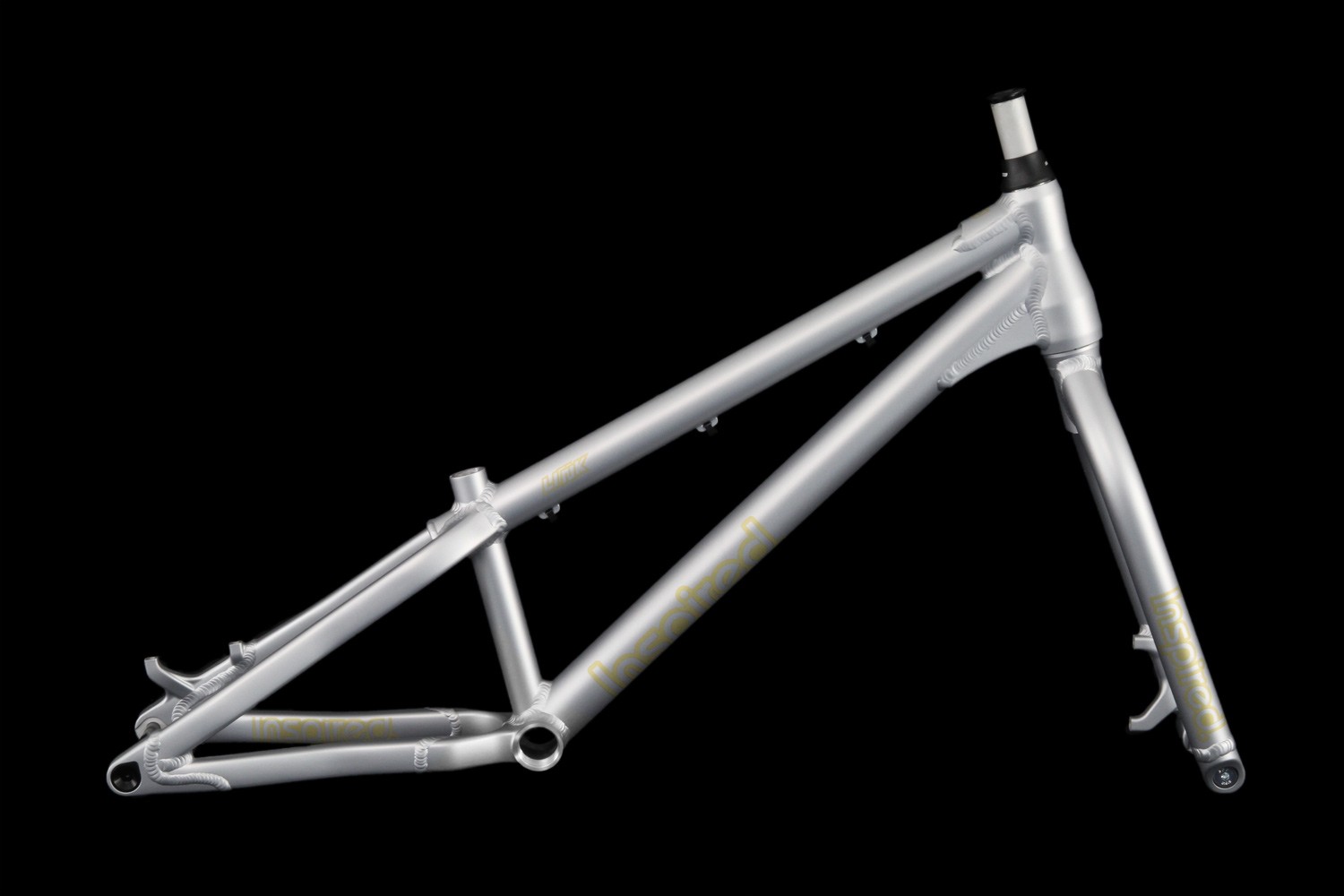

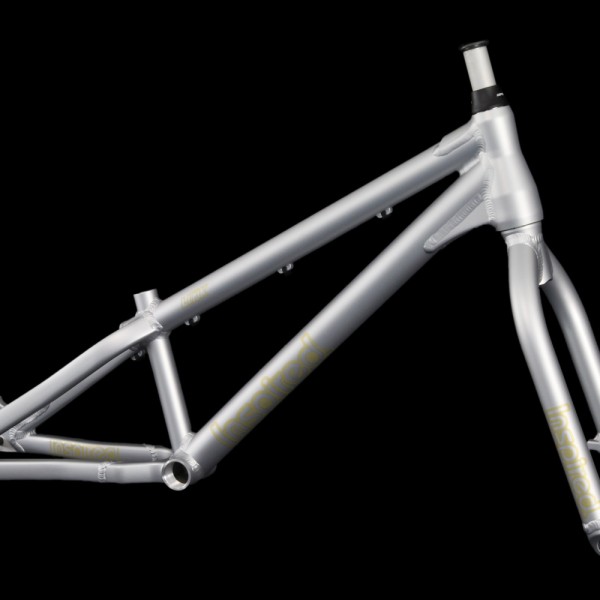

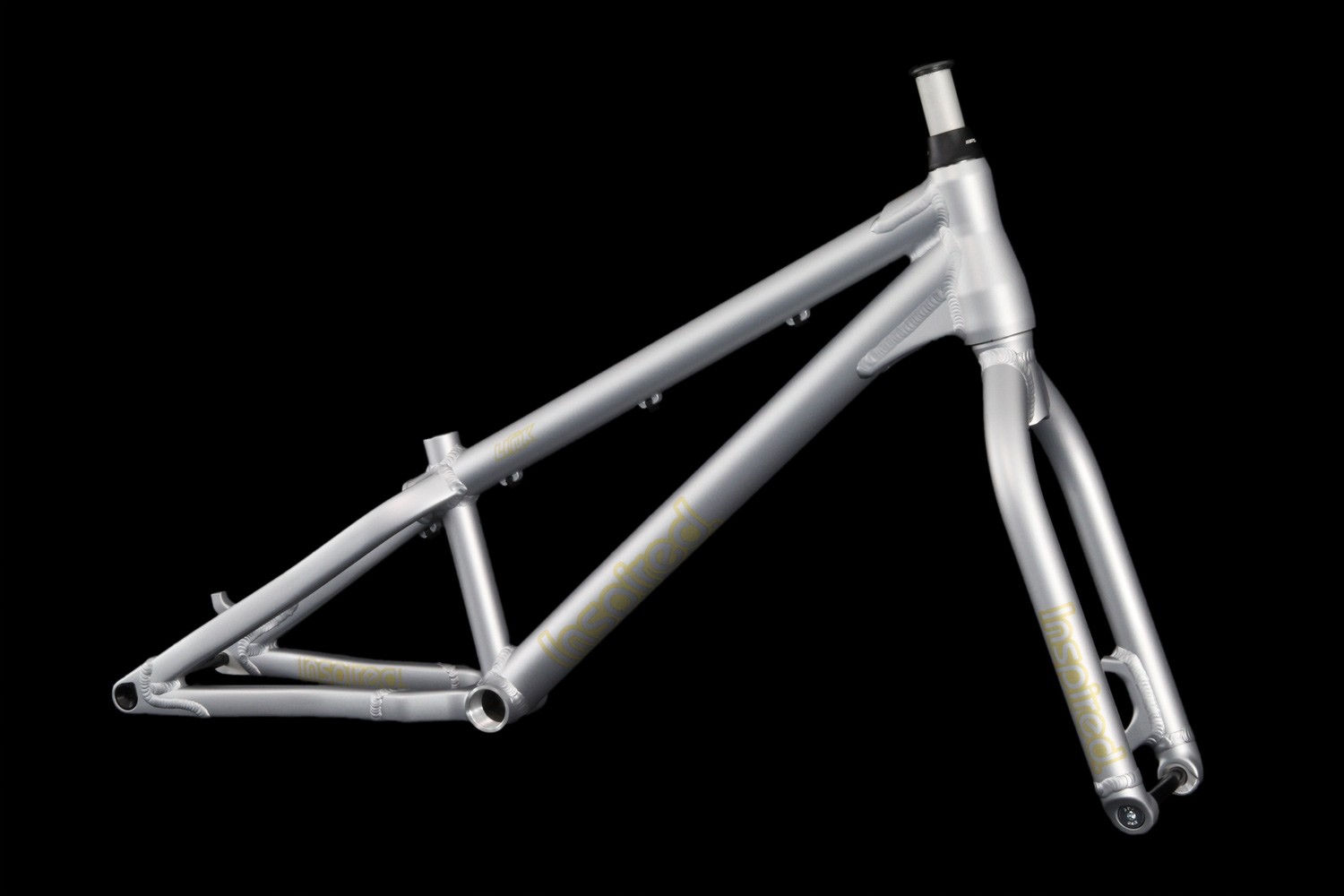

- Frame: Inspired Link 22", 12mm bolt through axle, Satin Silver

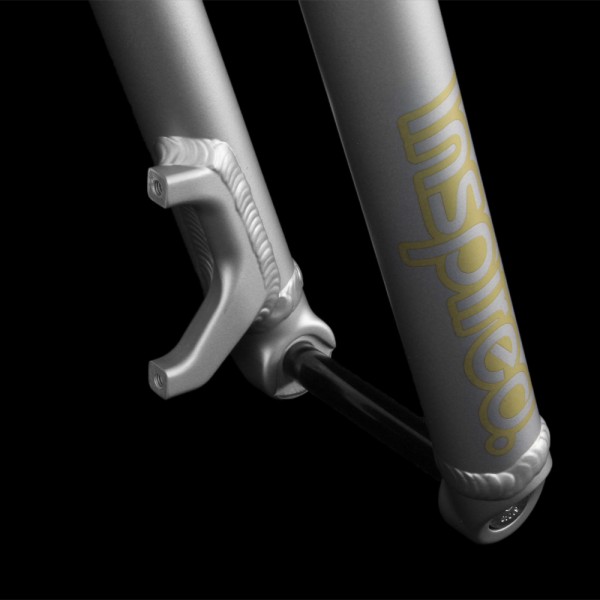

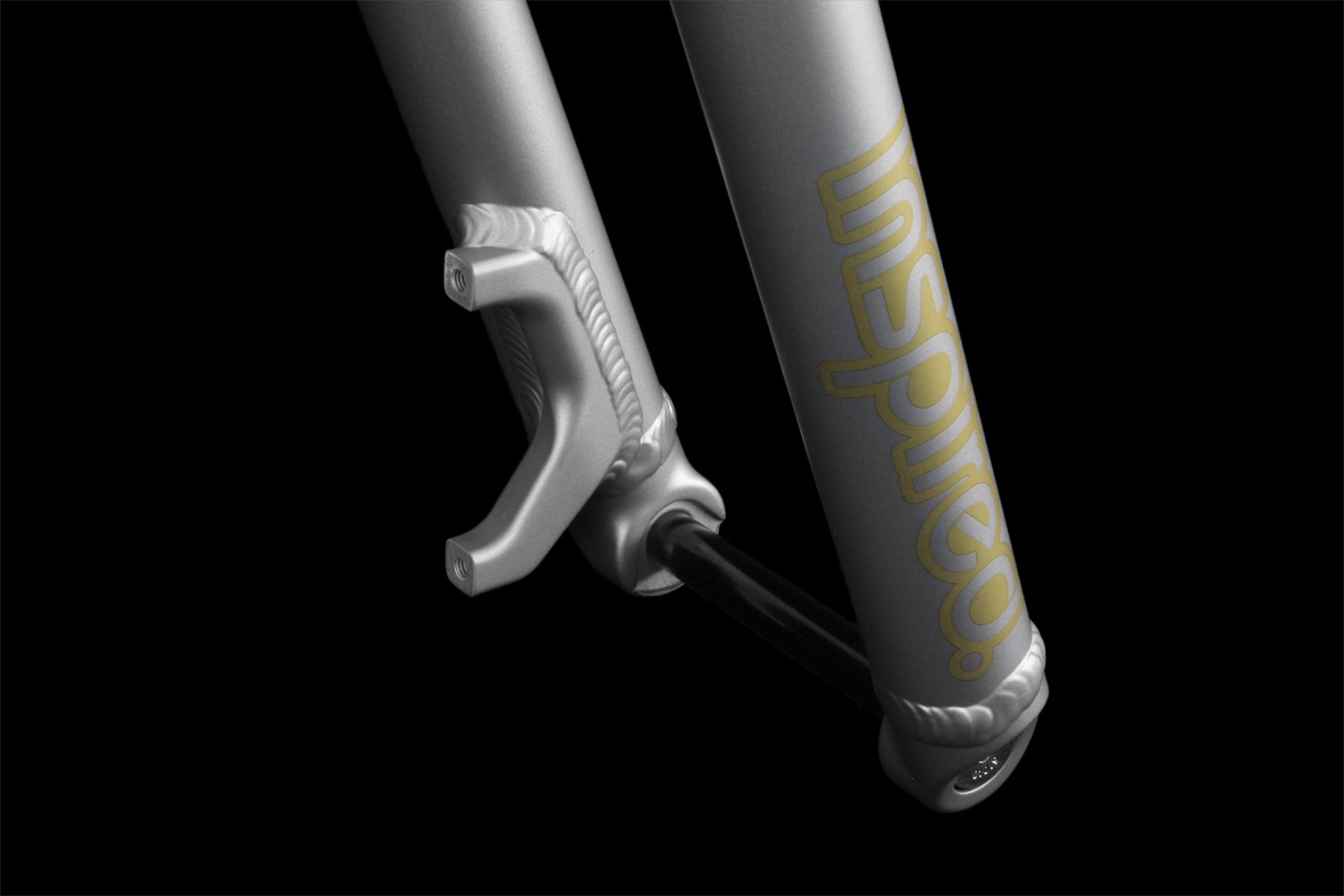

- Forks: Inspired Link, Taper 1.5" steerer, 15mm bolt through axle, Satin Silver
- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black
- Tensioner: Trialtech Single Sided Sprung Tensioner and mount
- Weight: 3.13kg
Geometry
- Wheelbase: 920mm (measured with Link fork)
- Chainstay: 337mm
- BB Height: +15mm
- Head Angle: 74˚
Specification
- Seatpost: 27.2mm
- Seatclamp: 31.8mm

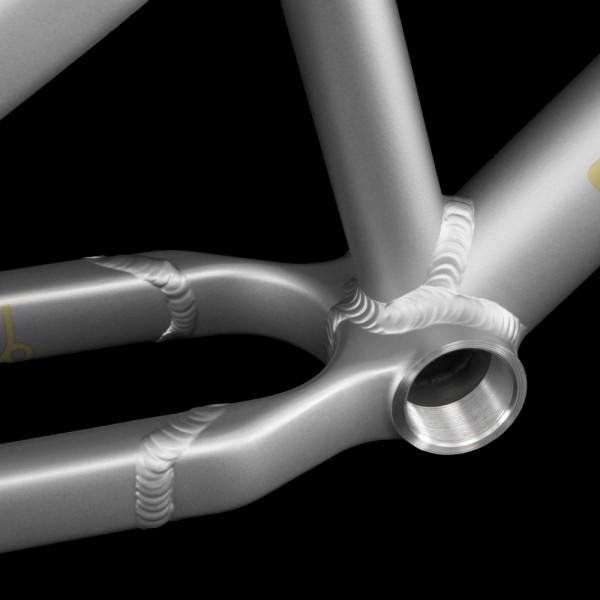

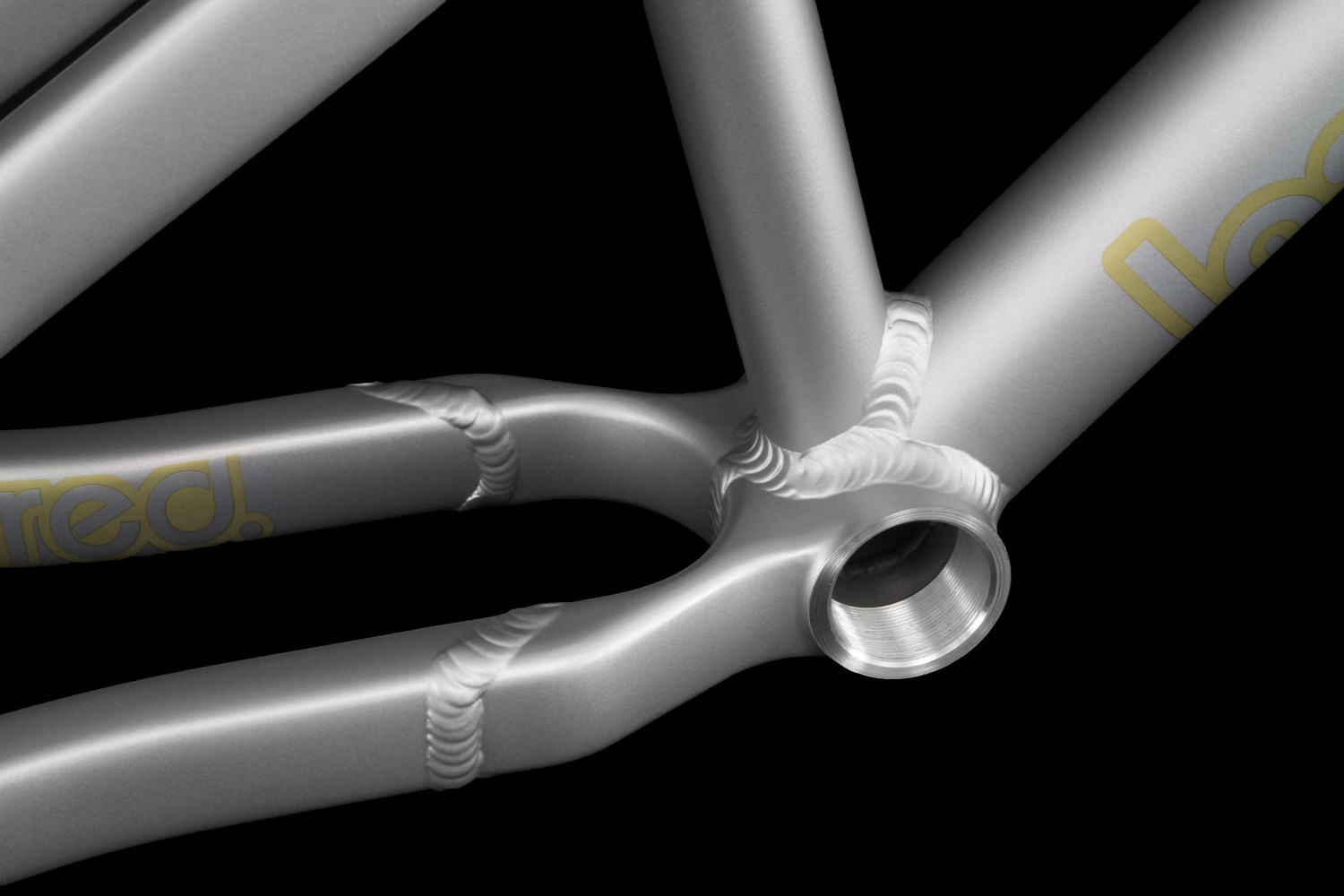

- BB shell: 73mm
- Tyre clearance: 22 x 2.4"

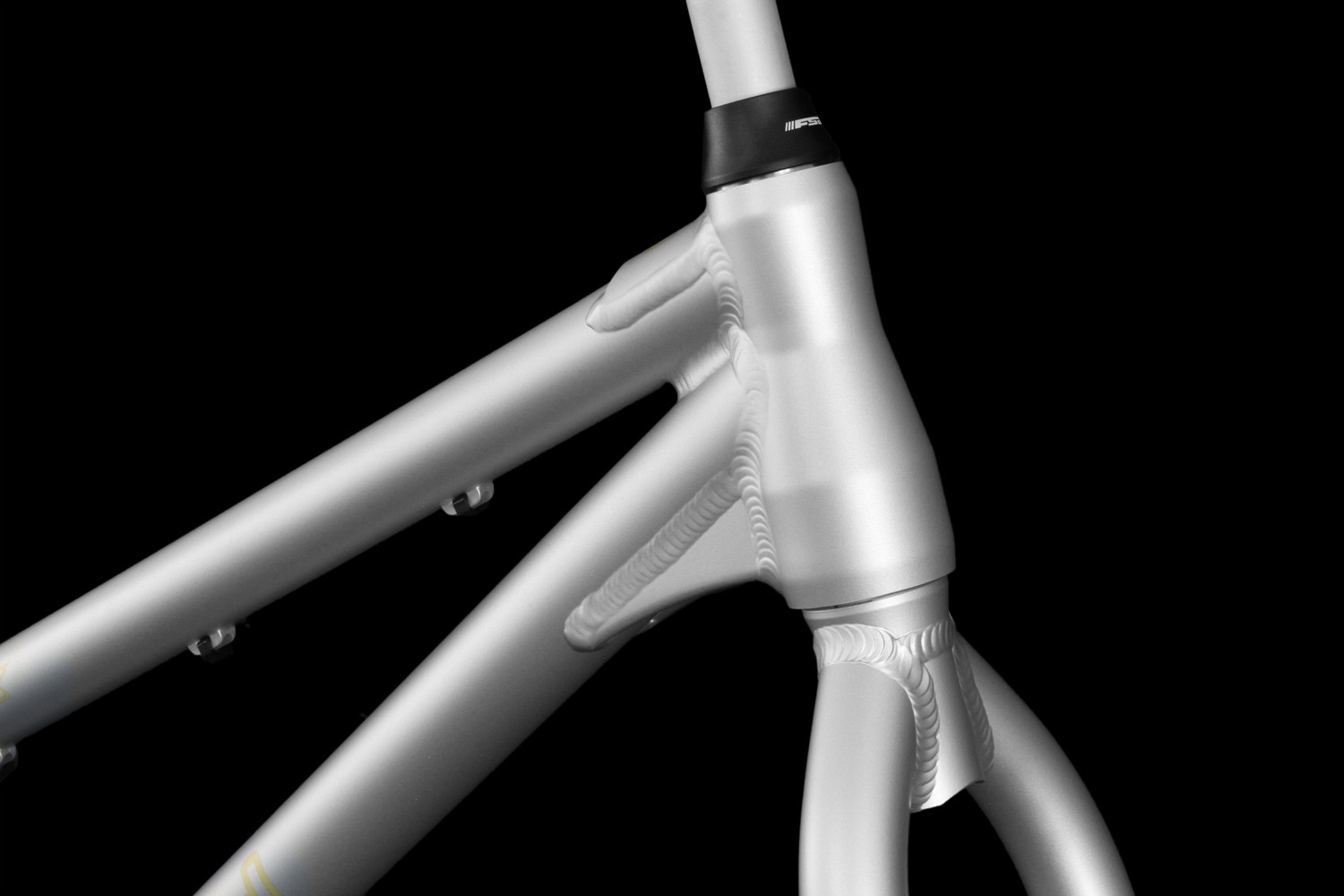

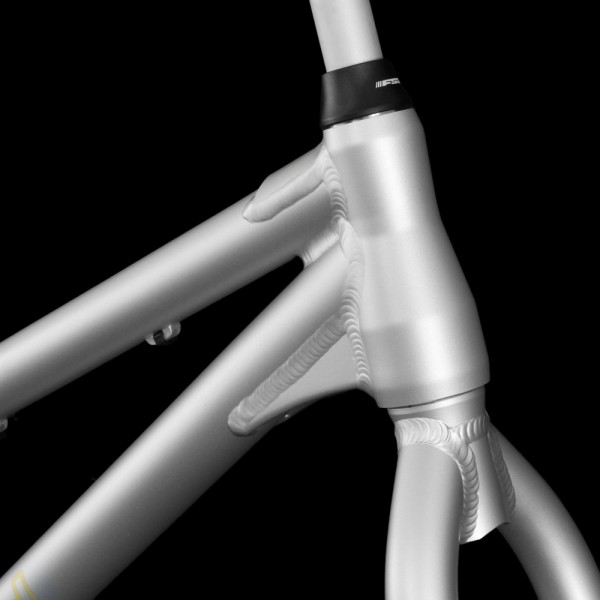

- Headtube: Tapered (1-1/8" Integrated Upper, 1.5" Integrated Lower)

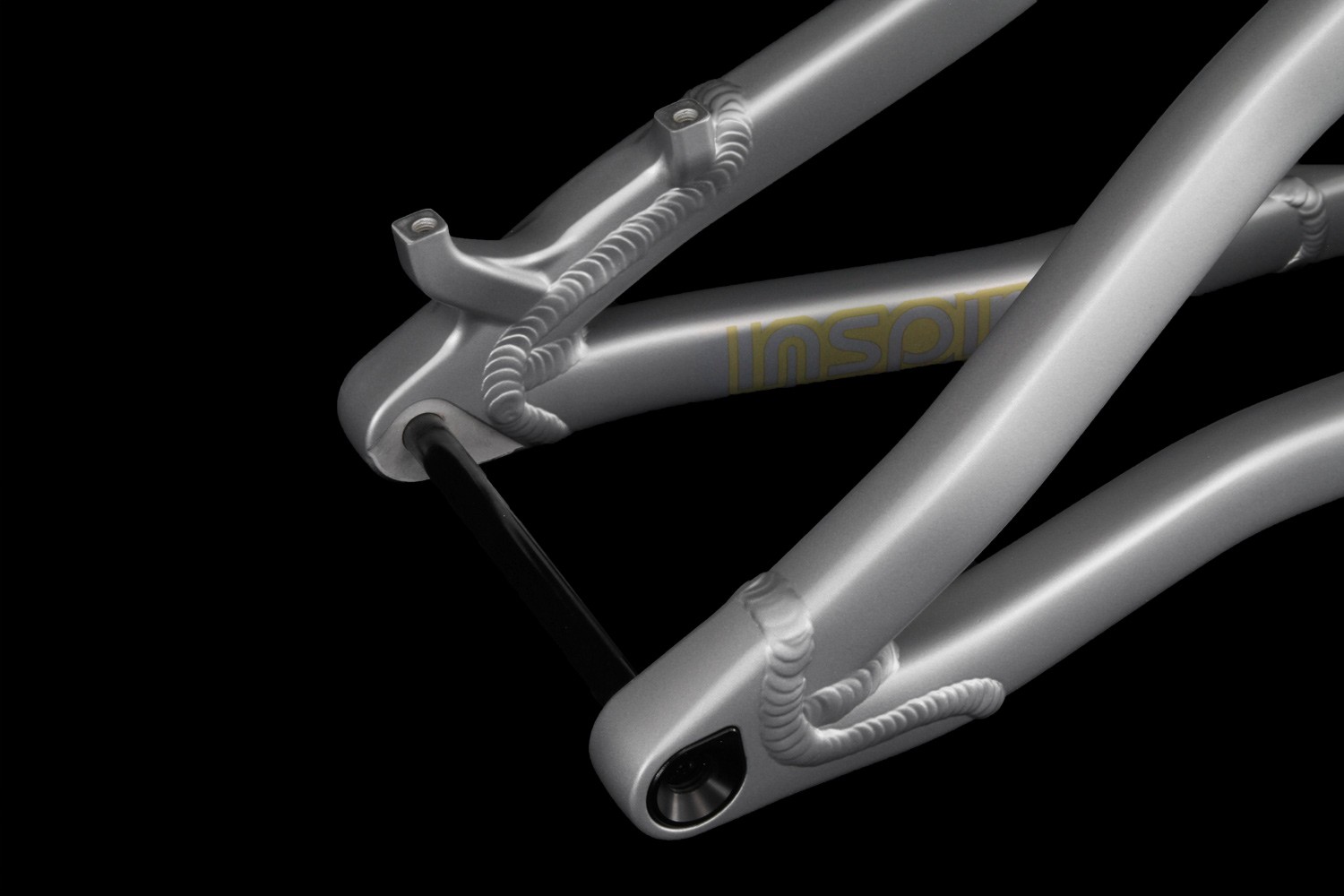

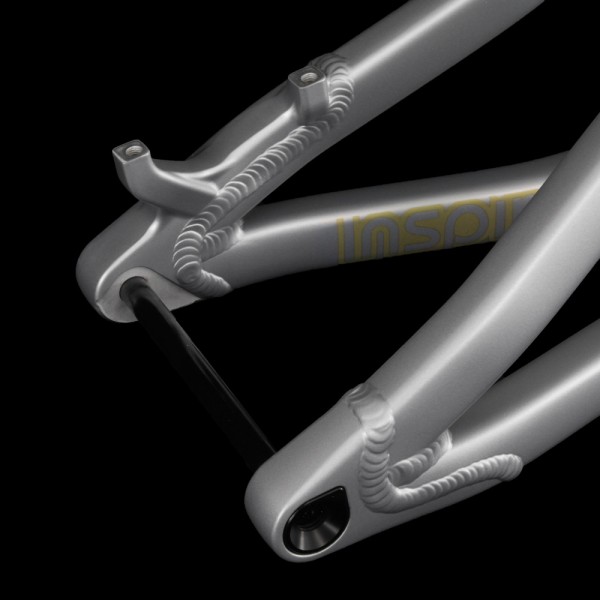

- Dropouts: 12mm bolt through, 135mm spacing
- Chainline: 51mm (Recommended minimum with 22T chainring)
- Disc Mount: +20mm Post Mount (Designed to run a maximum rotor size of 185mm, using a larger rotor will void the warranty)
Documentation
Pro 15mm Fork Axle Assembly Instructions (0.6MB)
Pro 12mm Frame Axle Assembly Instructions (0.6MB)
Single Sided Tensioner Instructions (1.1MB)
Additional Information
Ensure axles are clean and there are no signs of damage before fitting. Make sure to apply a generous amount of good quality grease to all surfaces. Failure to fit the axles without following the approved process as outlined in the Axle Assembly Instruction document is likely to invalidate the warranty.
