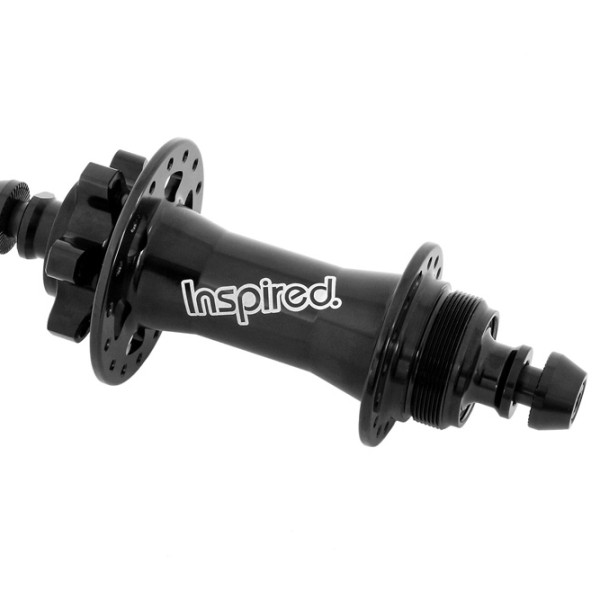

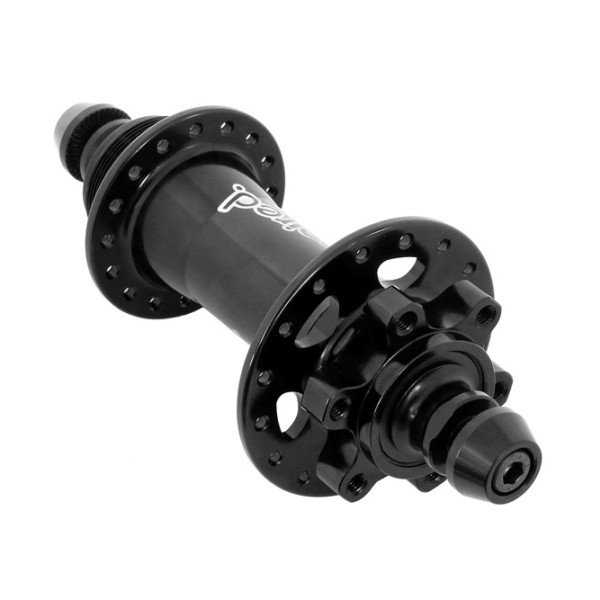

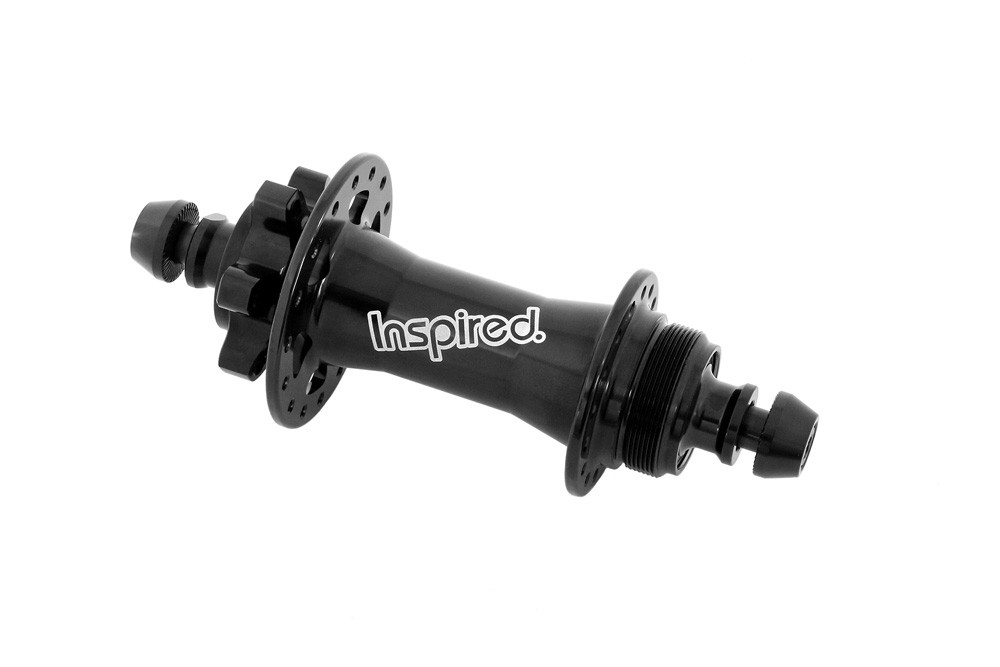

Inspired Pro Rear Disc Hub
- Top quality sealed bearing rear disc hub, as found on our Pro spec bikes.
- CNC-machined hub shell features more material in high stress areas to improve durability.
- Machined disc side flange reduces weight without compromising strength.
- Threaded section uses a conventional 1.37" x 24tpi, suitable for use with 16t (and larger) screw-on freewheels.
- ISO disc mount is compatible with all 6-bolt disc rotors.
- Fully sealed cartridge bearings provide silky smooth performance in all conditions.
- Available with either 10mm bolt-in axle or 12mm through axle options, both with 135mm spacing.
- 10mm bolt-in version uses a hollow aluminium axle, with M6 steel axle bolts. Compatible with all Flow and Fourplay/Hex (2019 and earlier) frames.

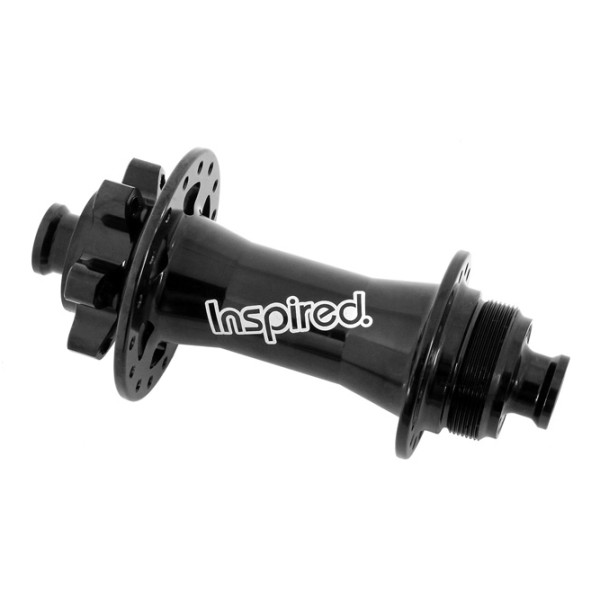

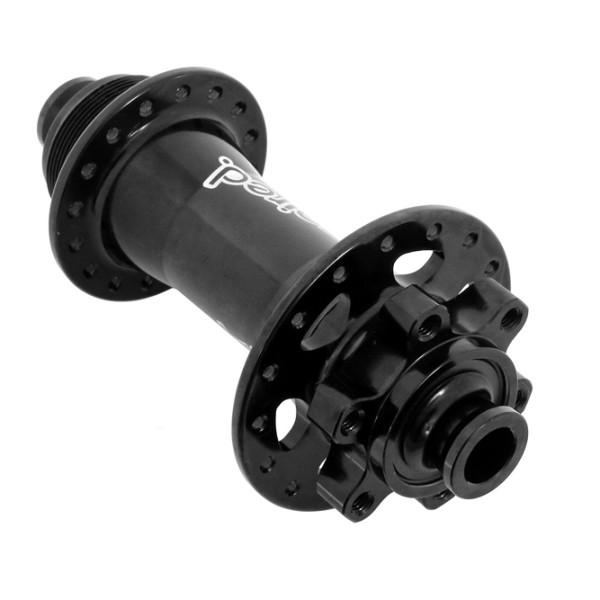

- 12mm version is compatible with Fourplay (2020 onwards) and Hex (2020 onwards) frames, along with all Skye frames.
- Available in gloss or satin anodised black with laser etched Inspired logos, 32h only.
- Weight: 222g (10mm), 193g (12mm)
Hub Dimensions
Non Drive Side:
- Flange Diameter: 58mm
- Centre to Flange: 34mm
Drive Side:
- Flange Diameter: 45mm
- Centre to Flange: 36mm
