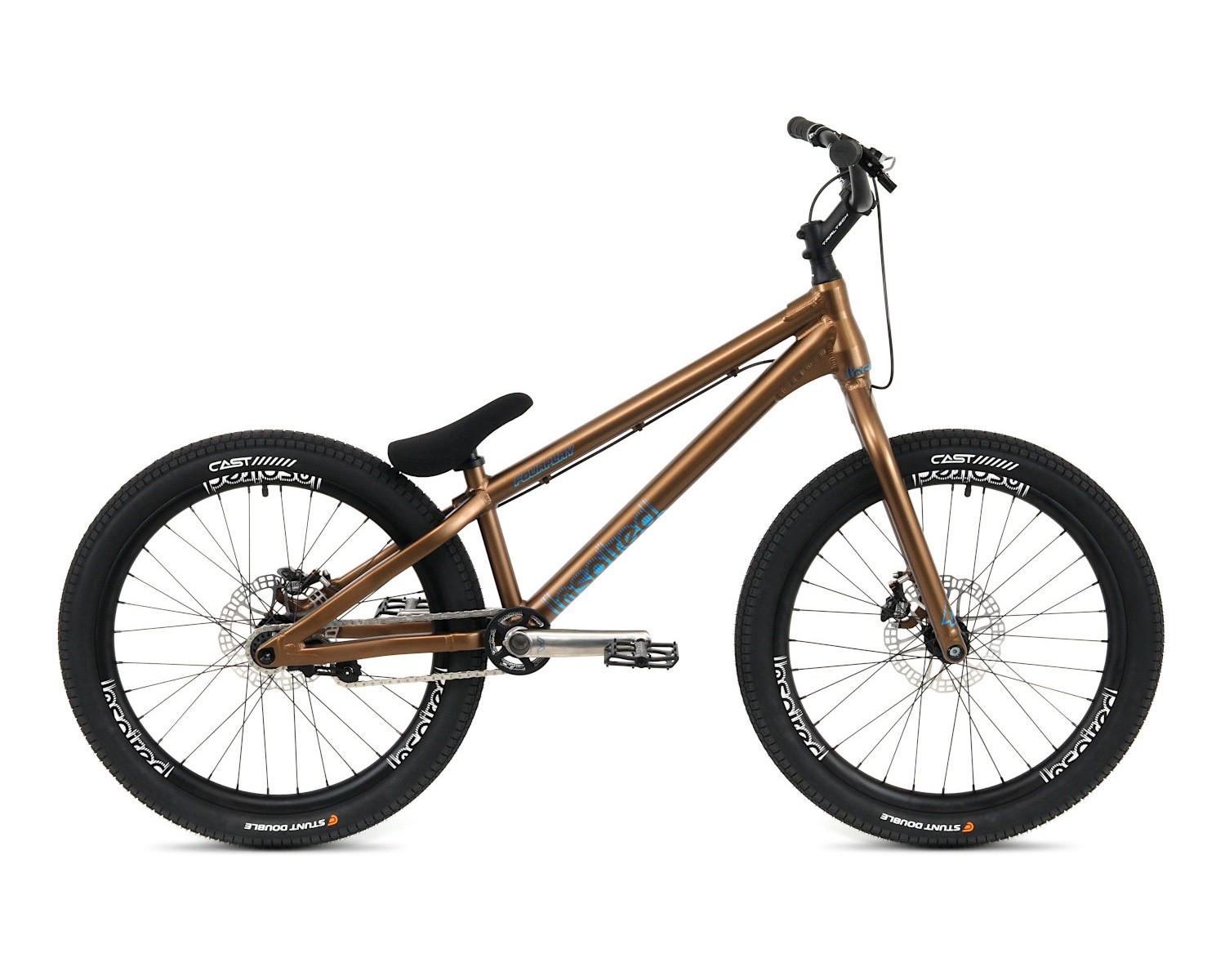

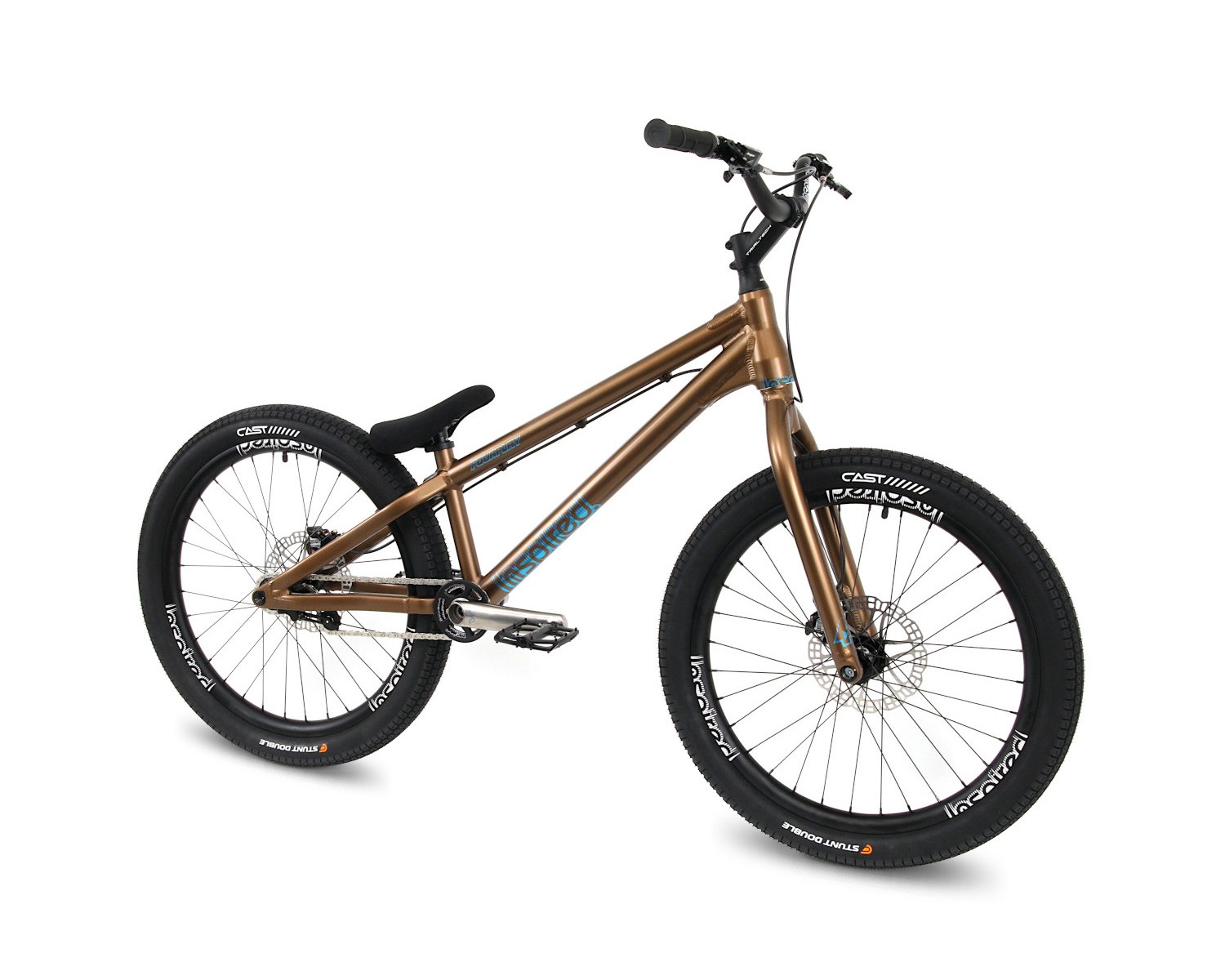

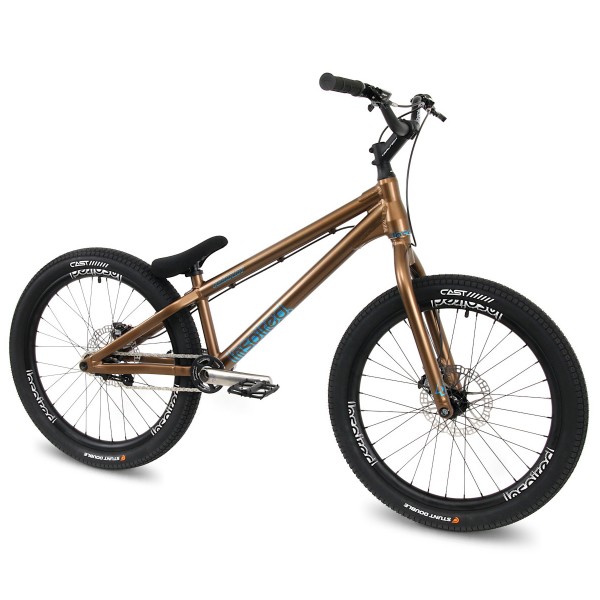

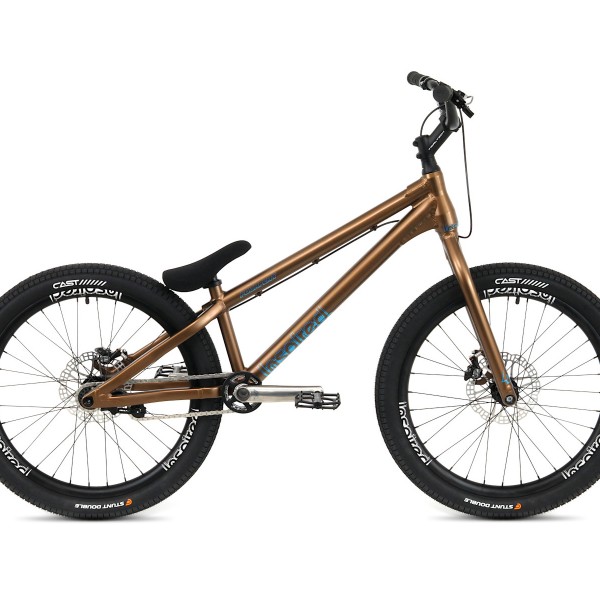

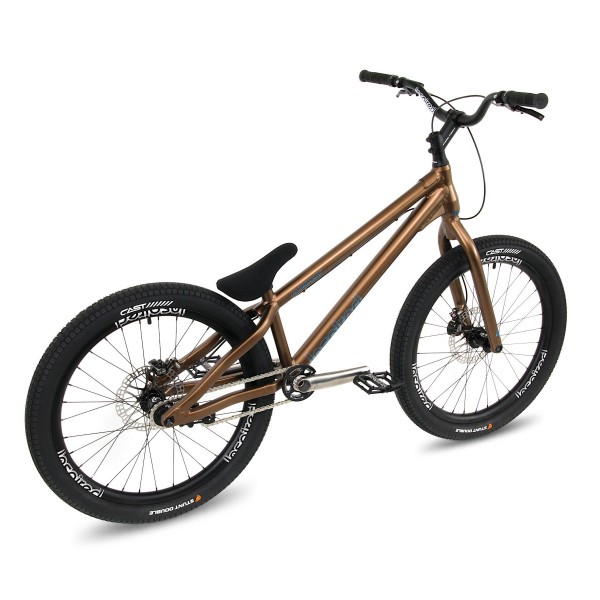

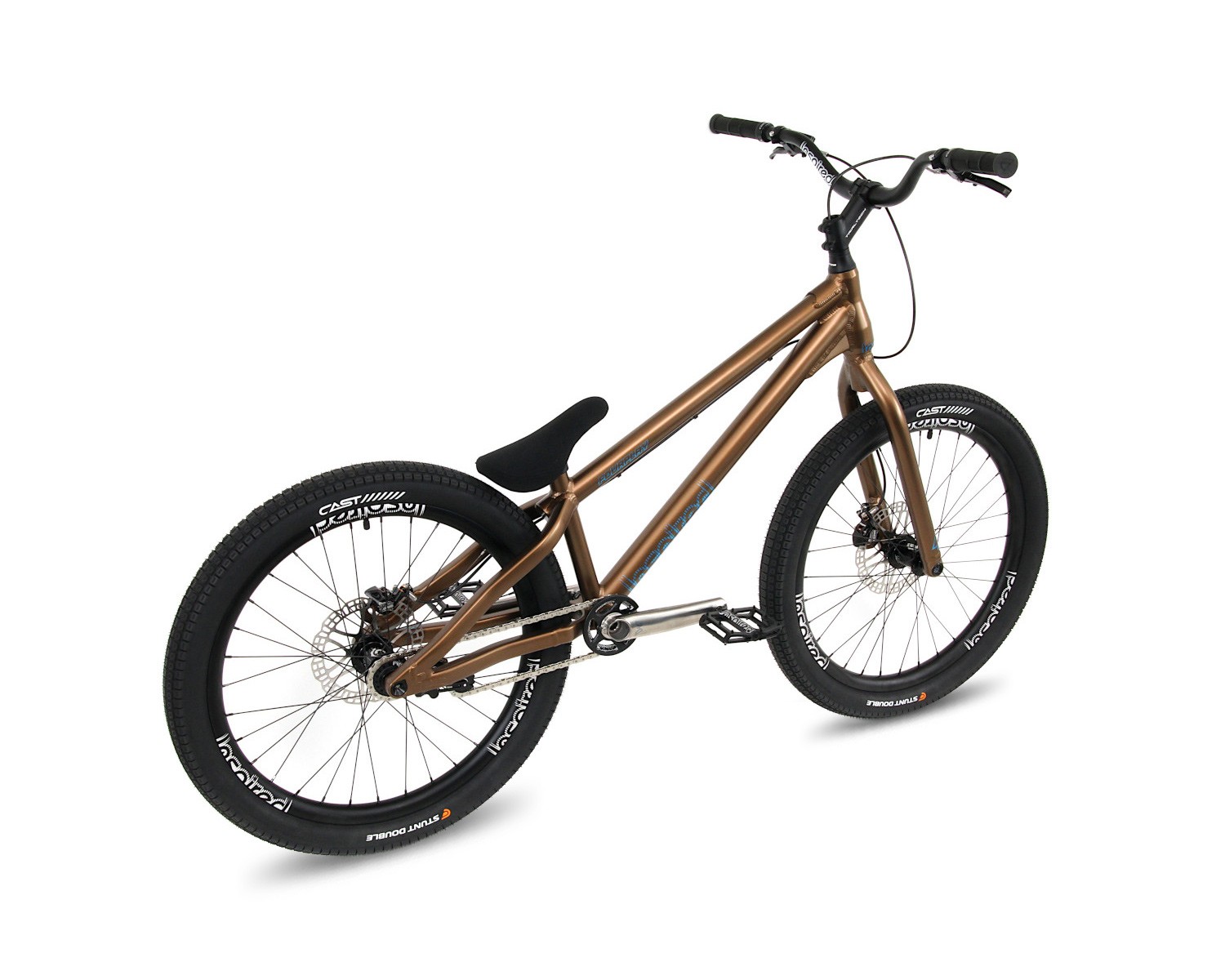

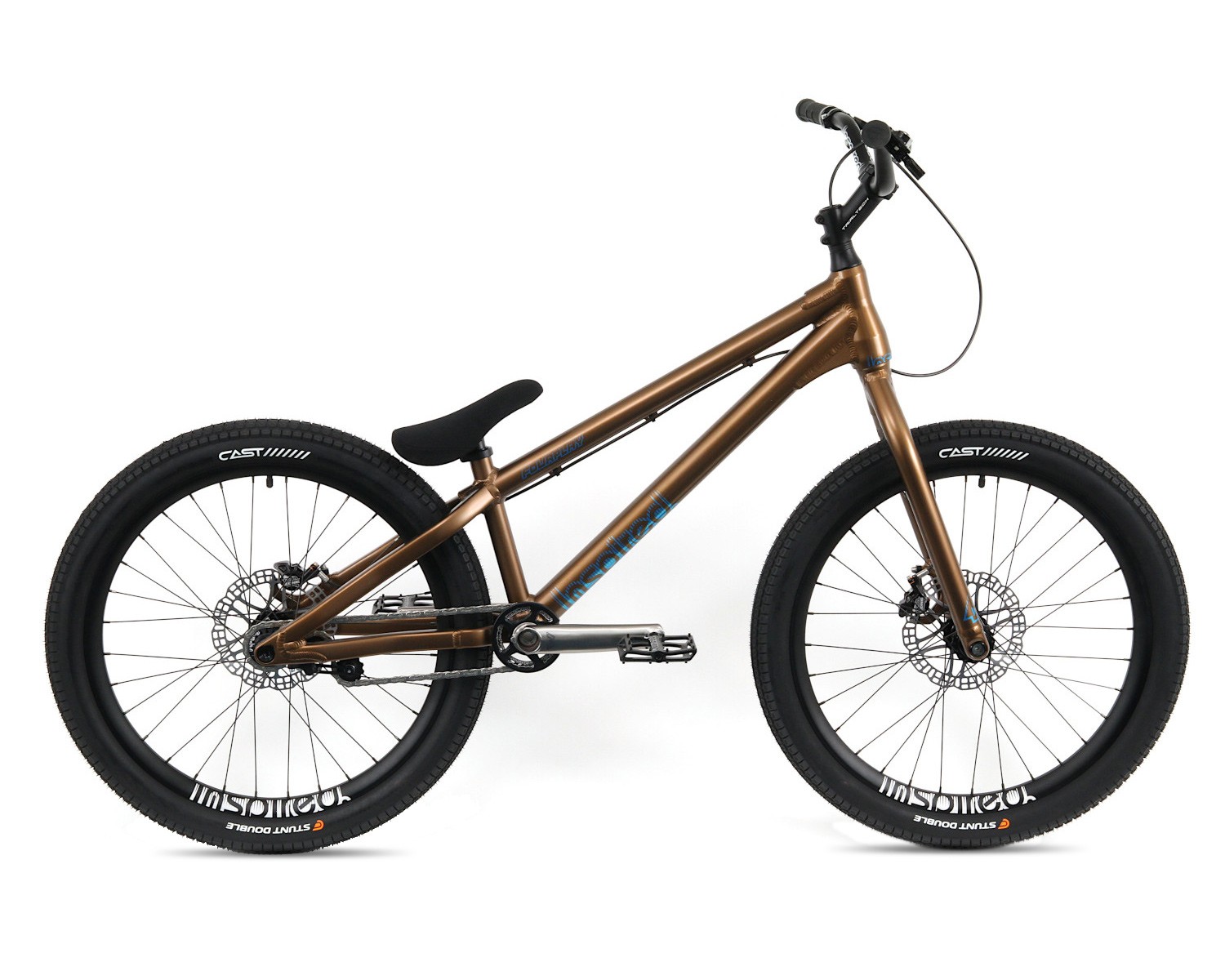

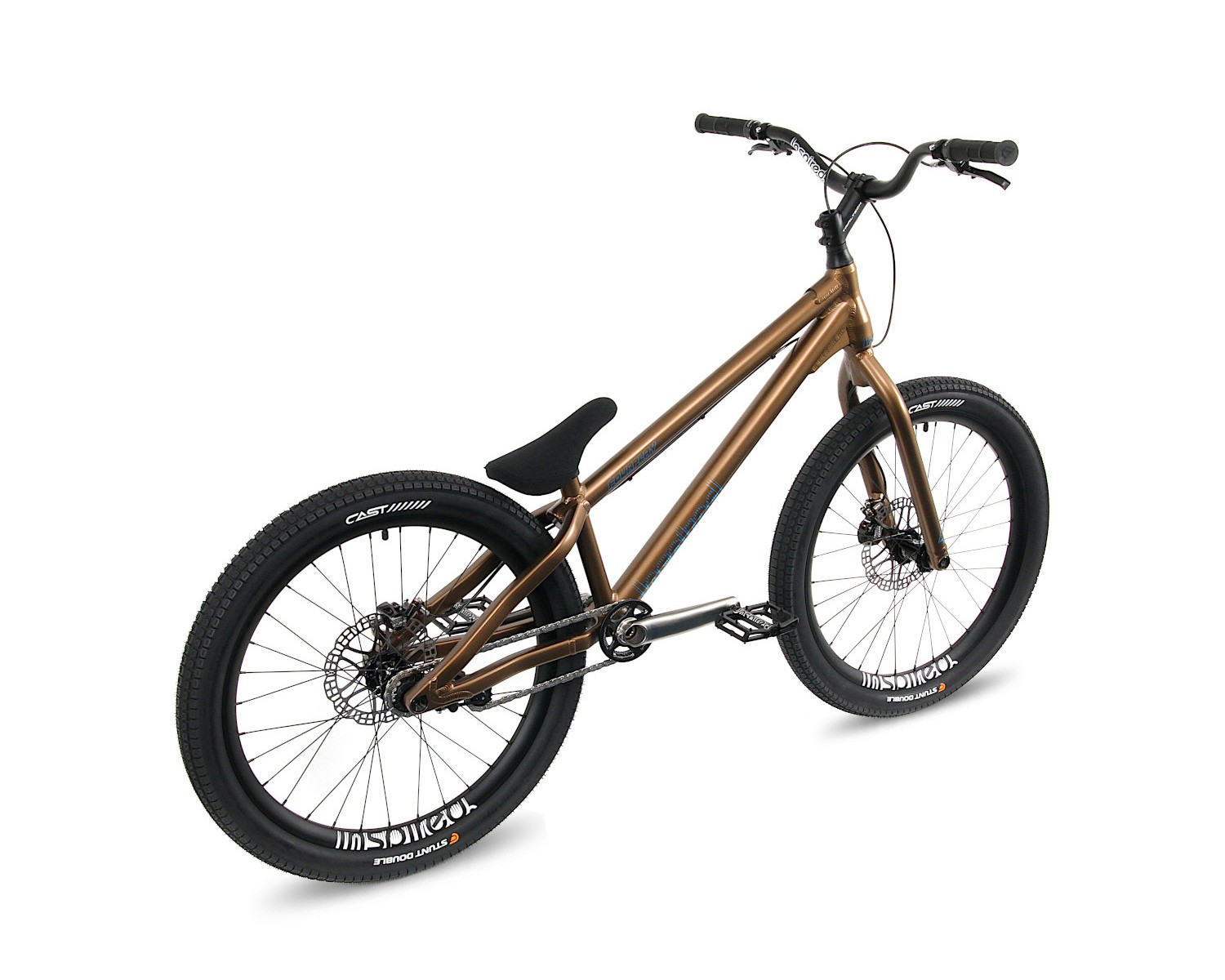

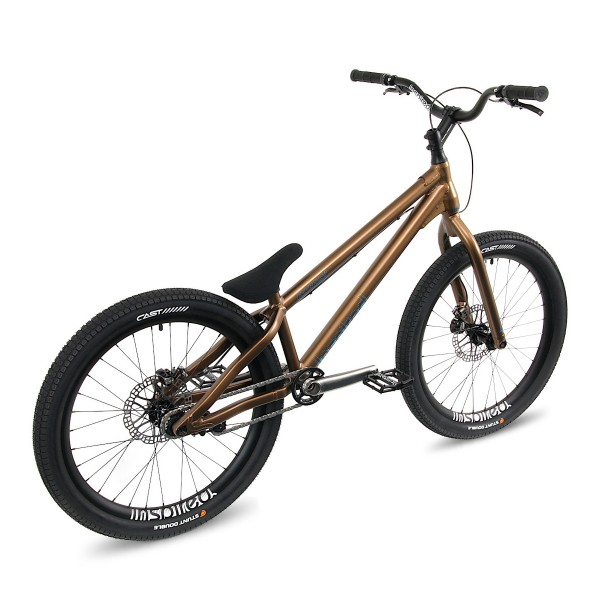

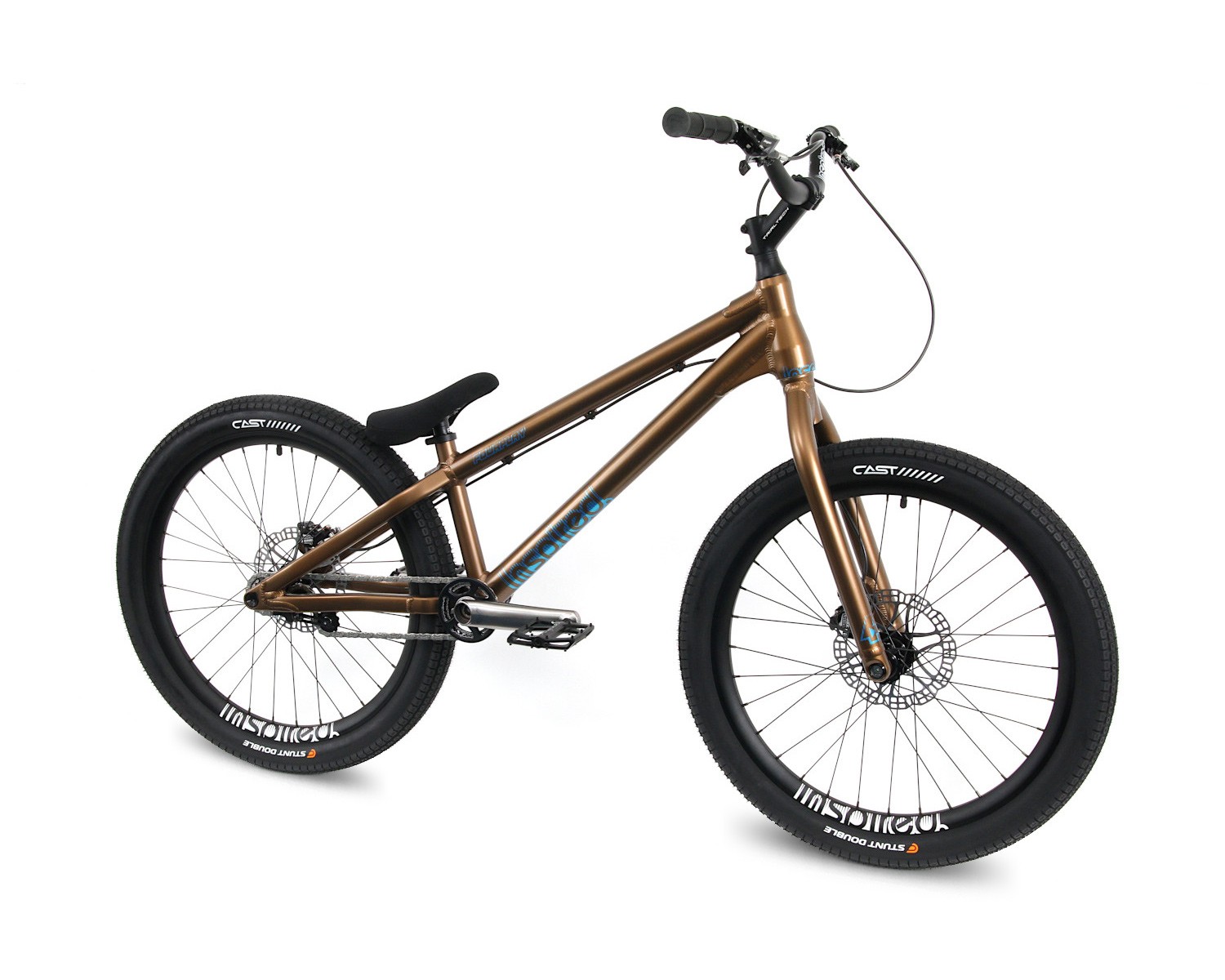

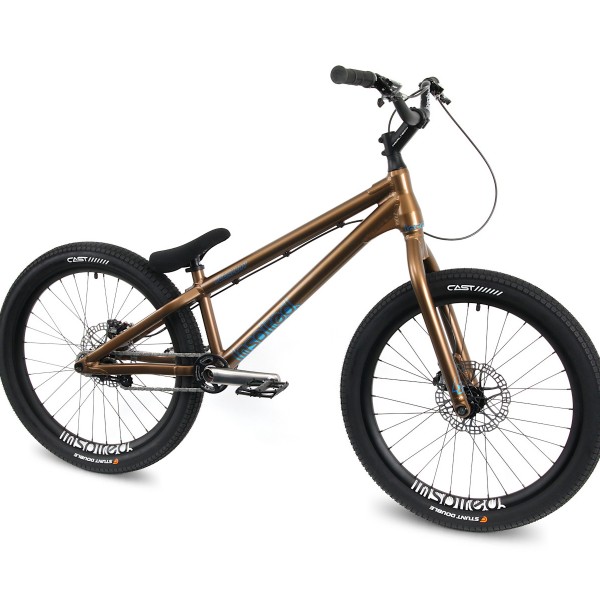

The Inspired Fourplay SE is the ultimate version of our 24" street bike.

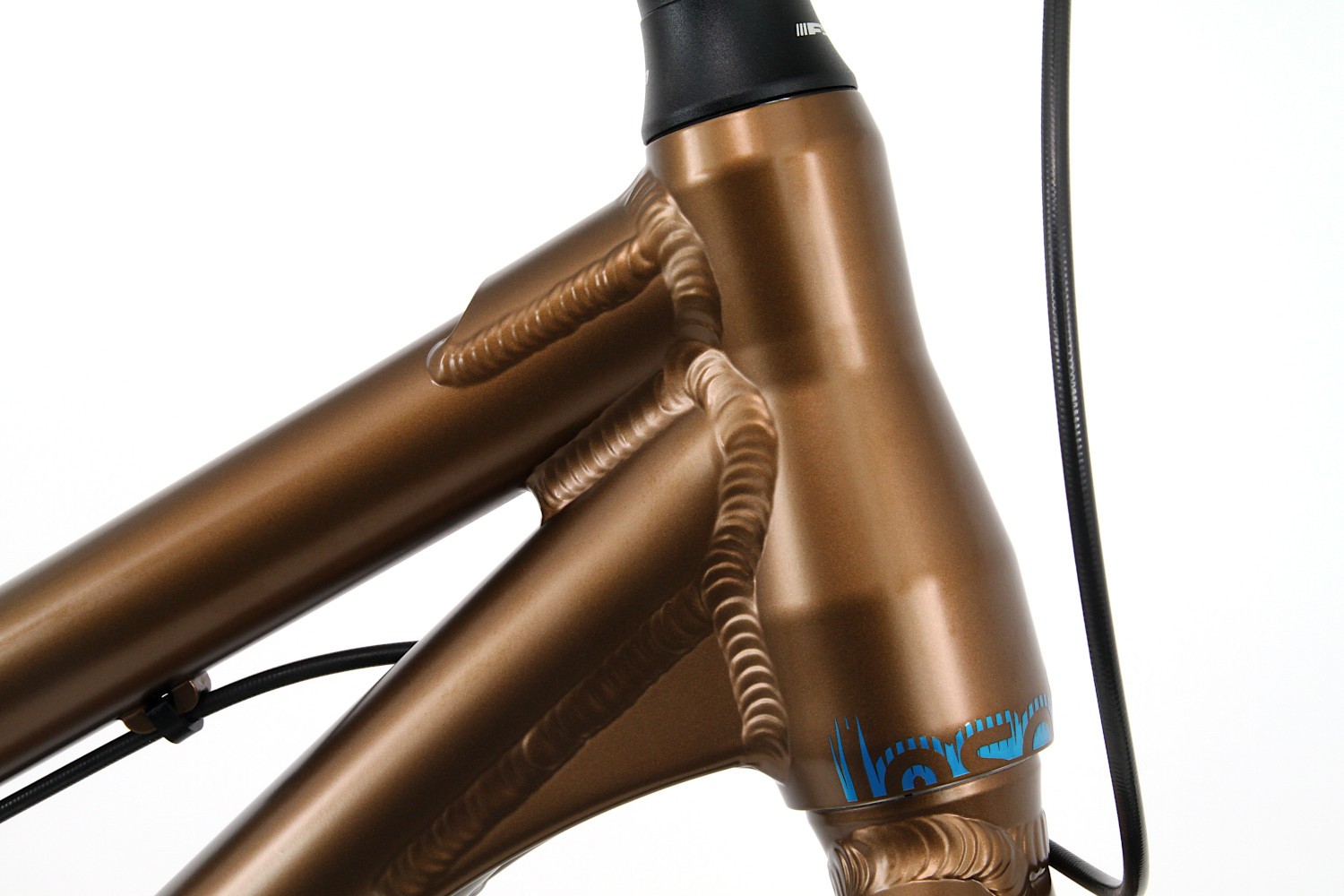

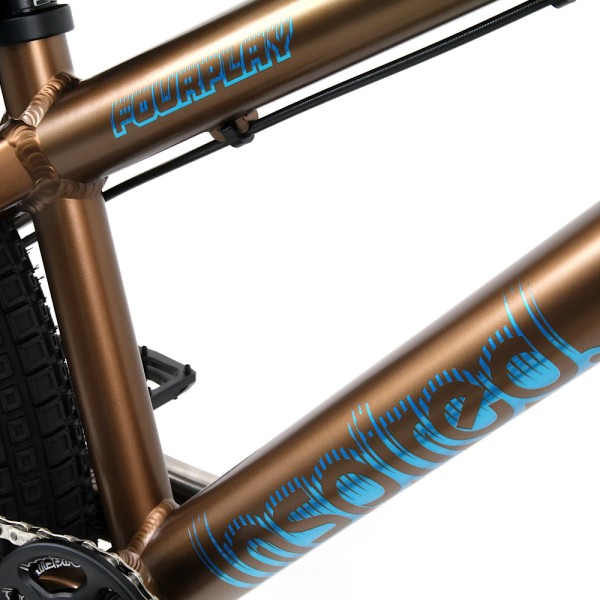

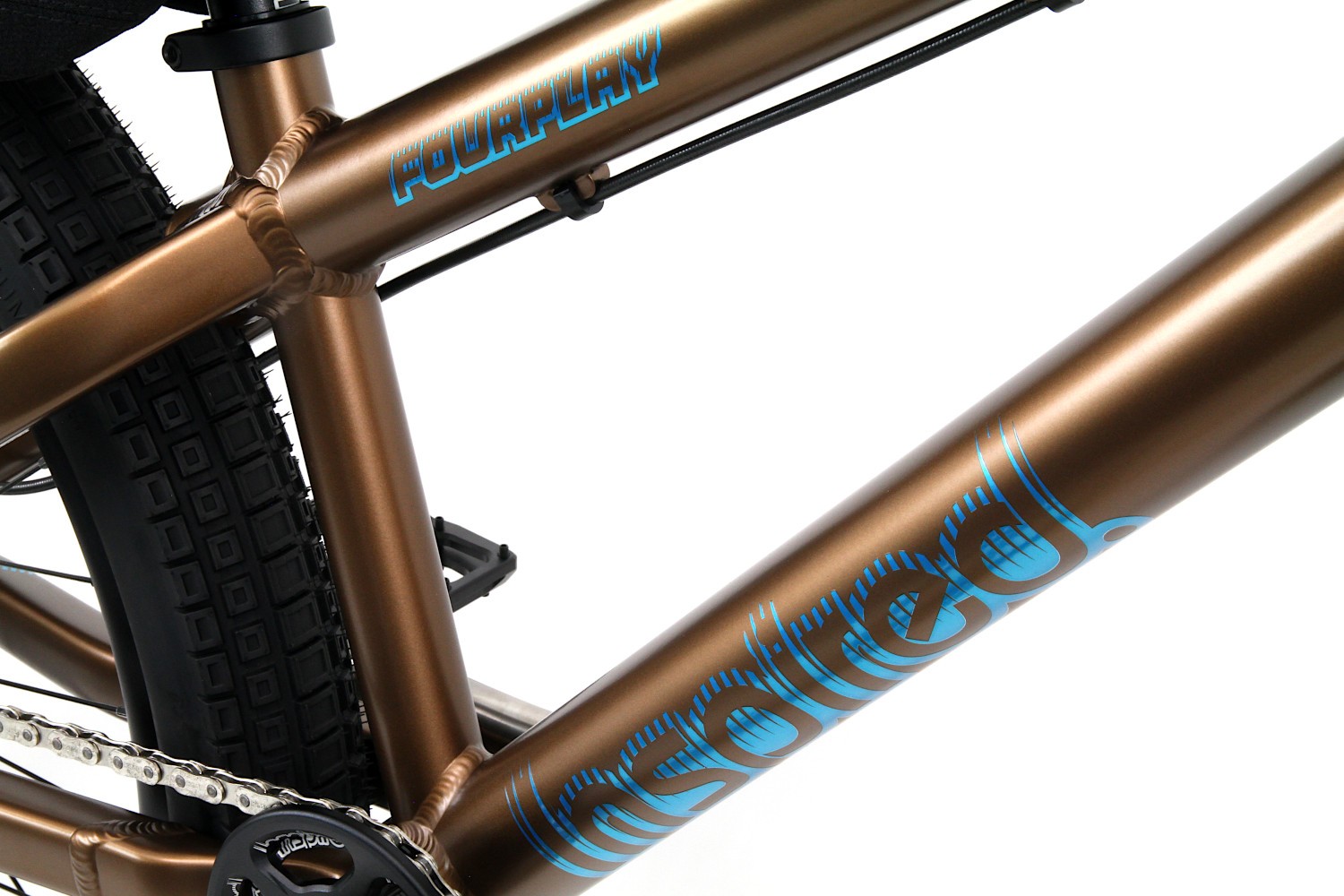

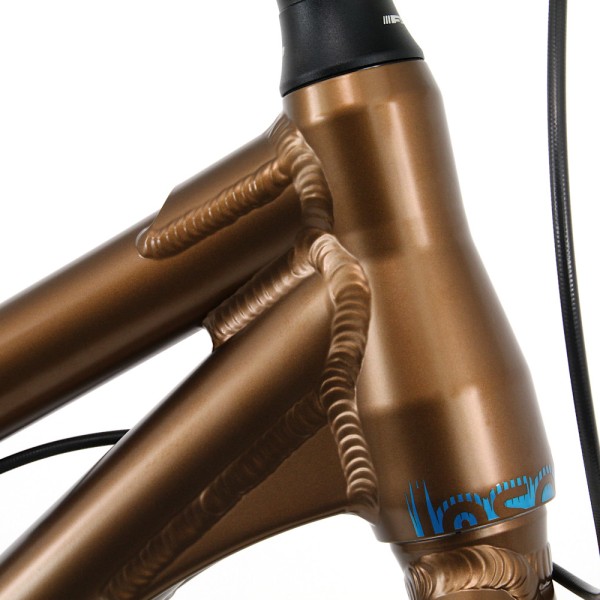

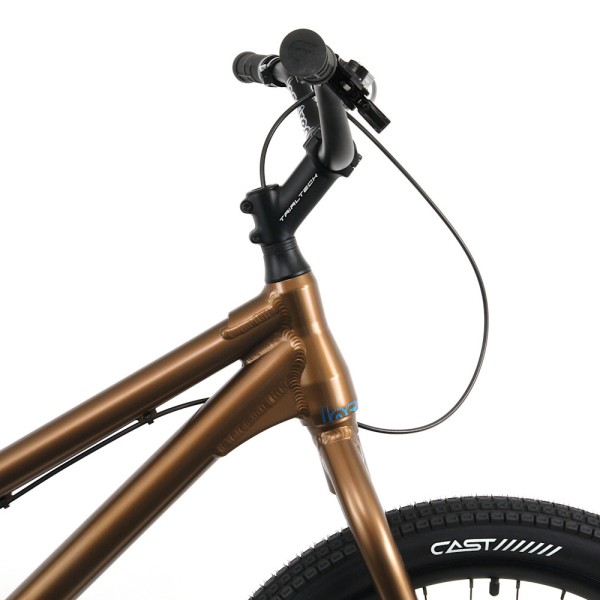

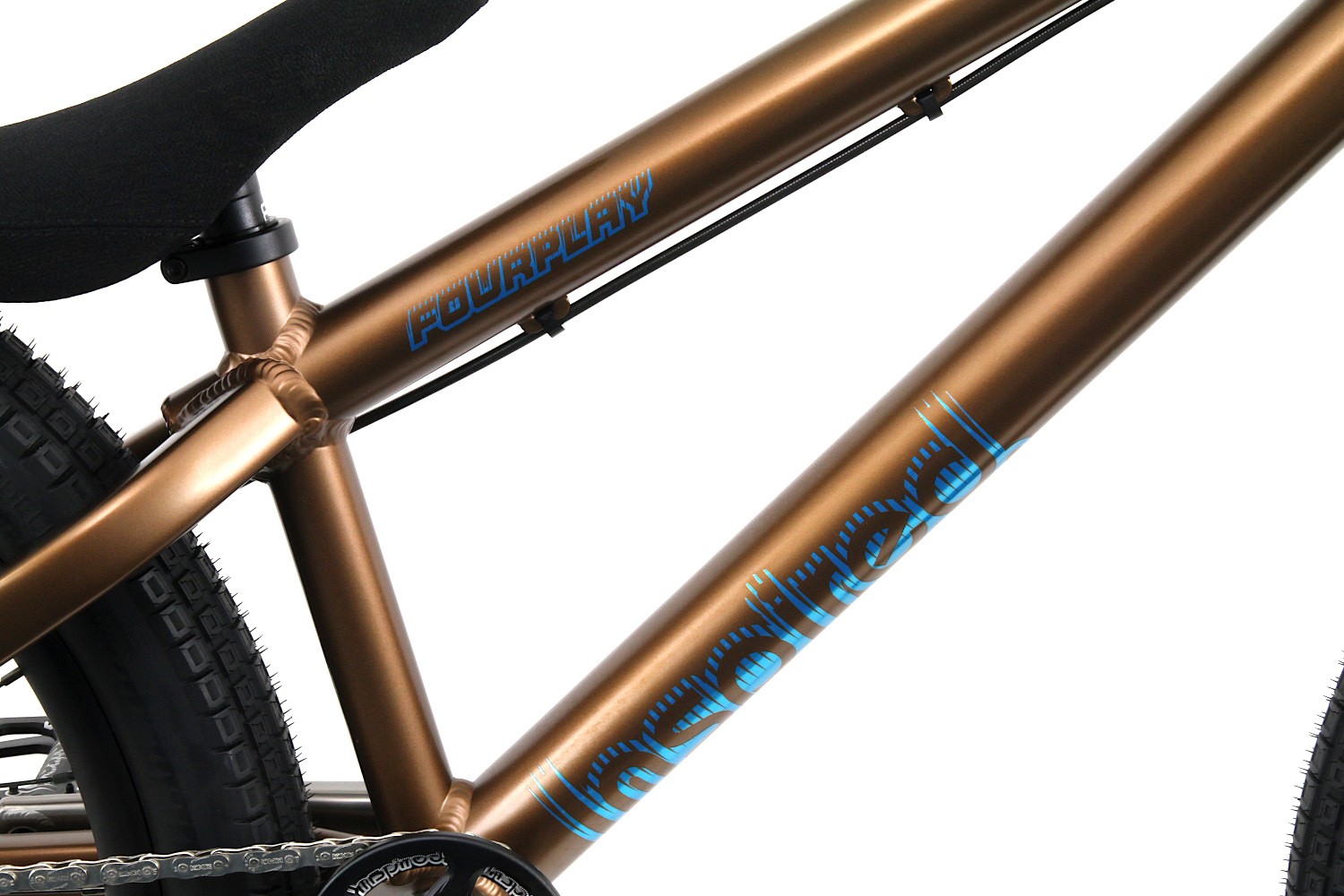

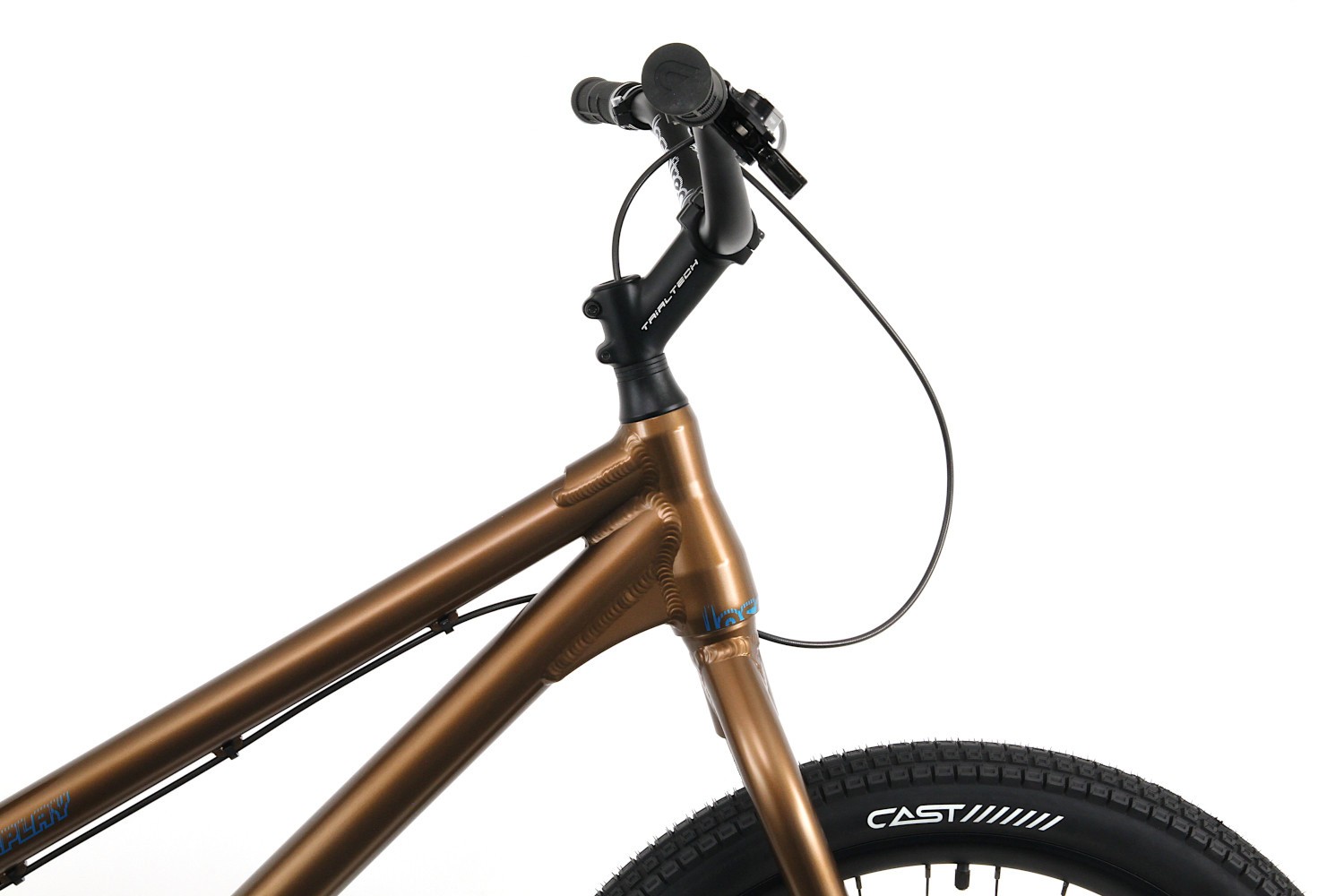

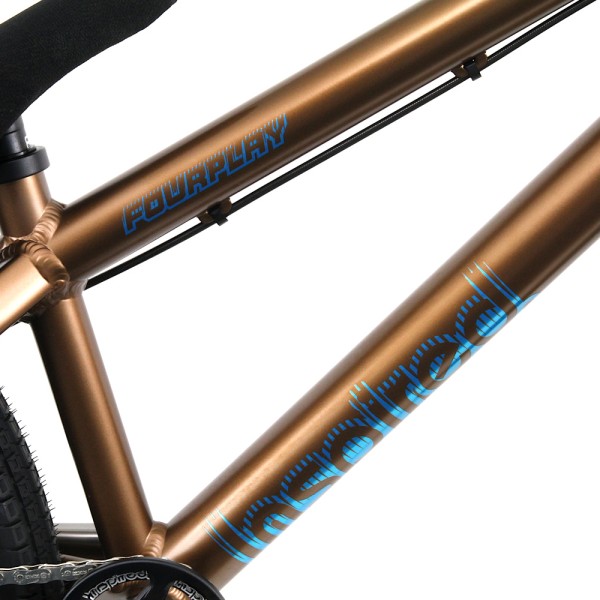

Short chainstays and low bottom bracket height help to improve the maneuverability and responsive handling of the Fourplay making it a capable street riding machine. The front of the frame features an upgraded butted tubeset to help increase strength even further and is complemented by using external top and down tube gussets. An all-new integrated tapered head tube allows for increased weld contact area with the down tube to increase durability further.

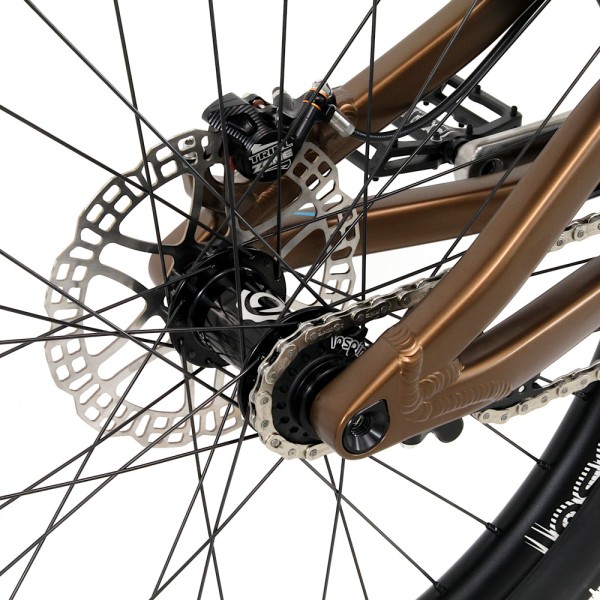

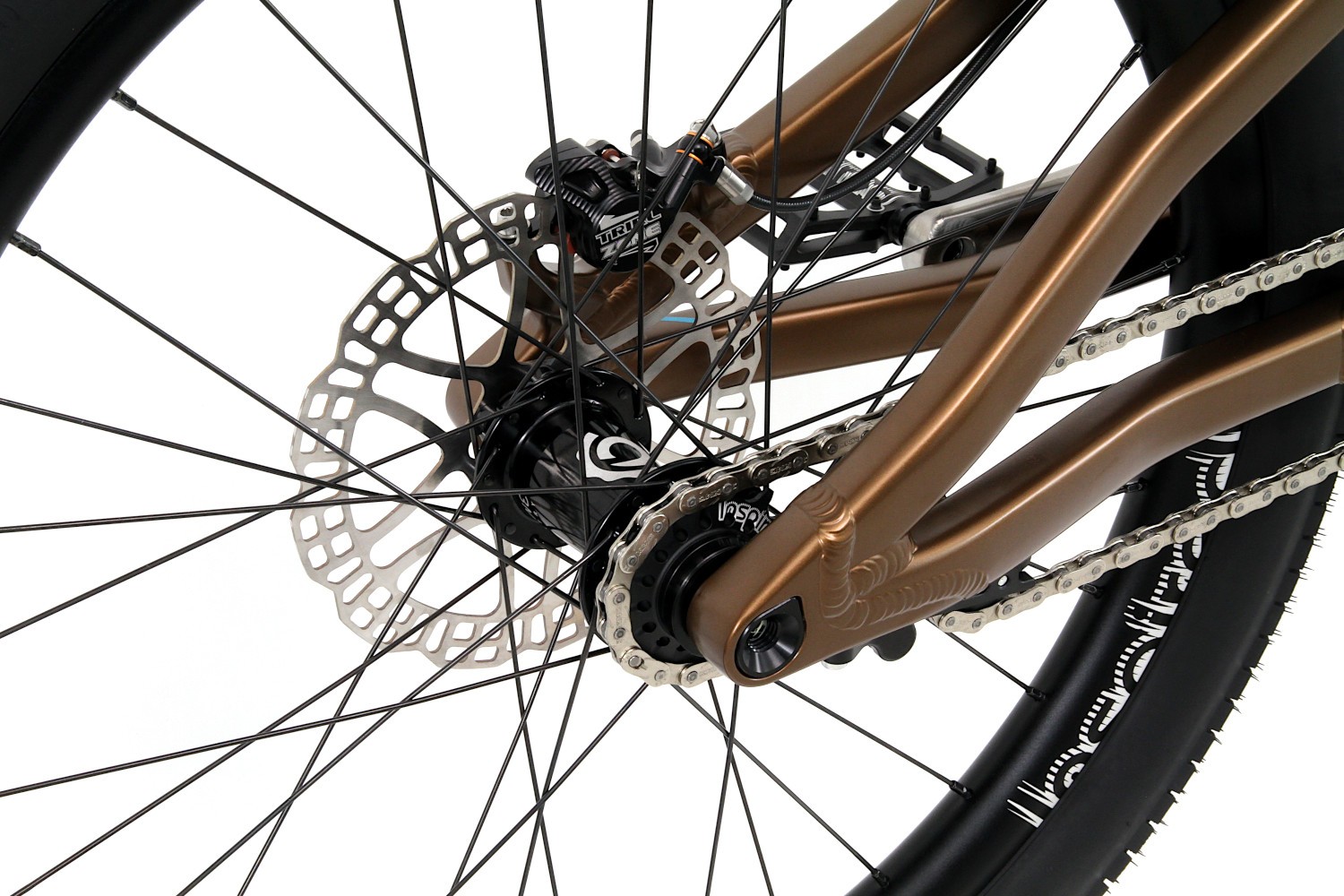

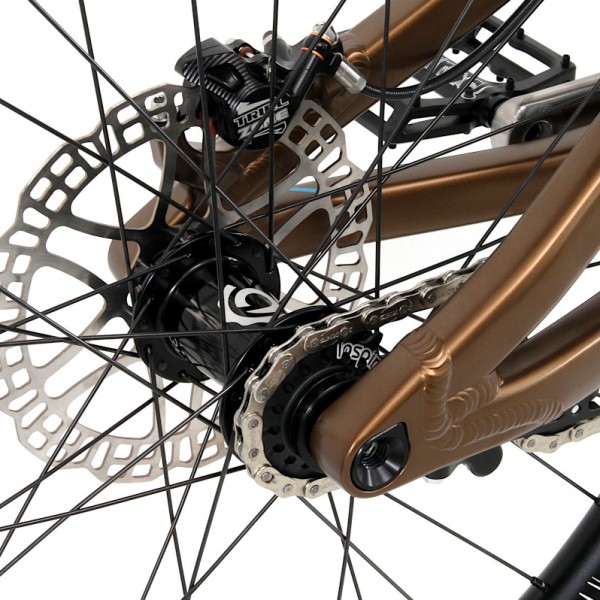

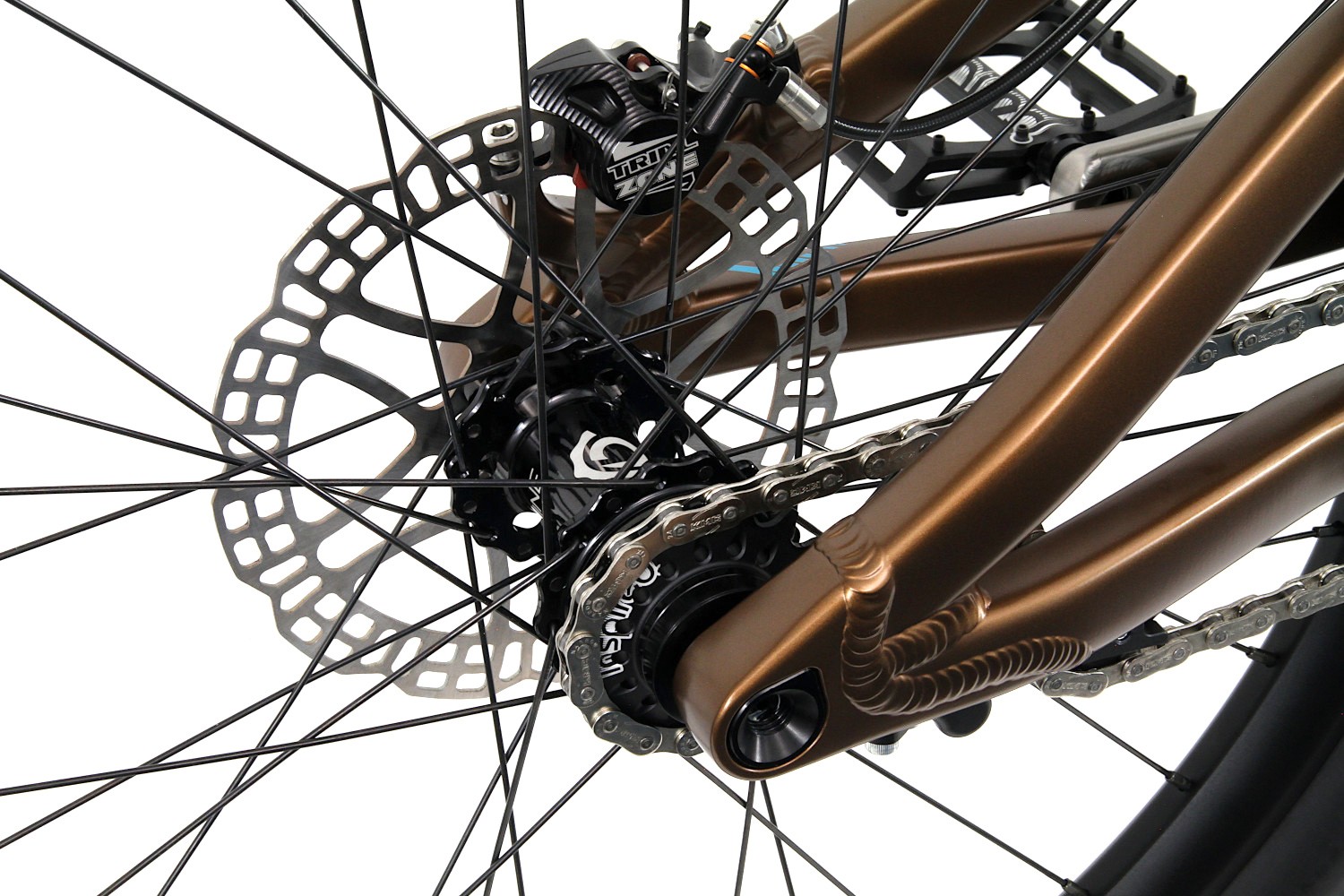

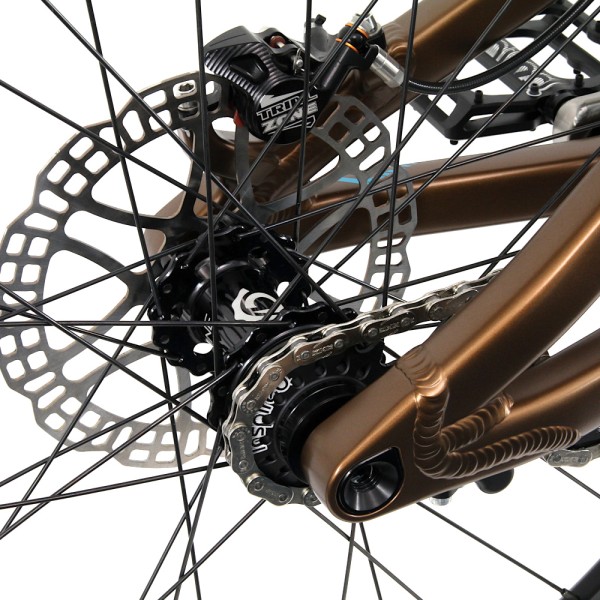

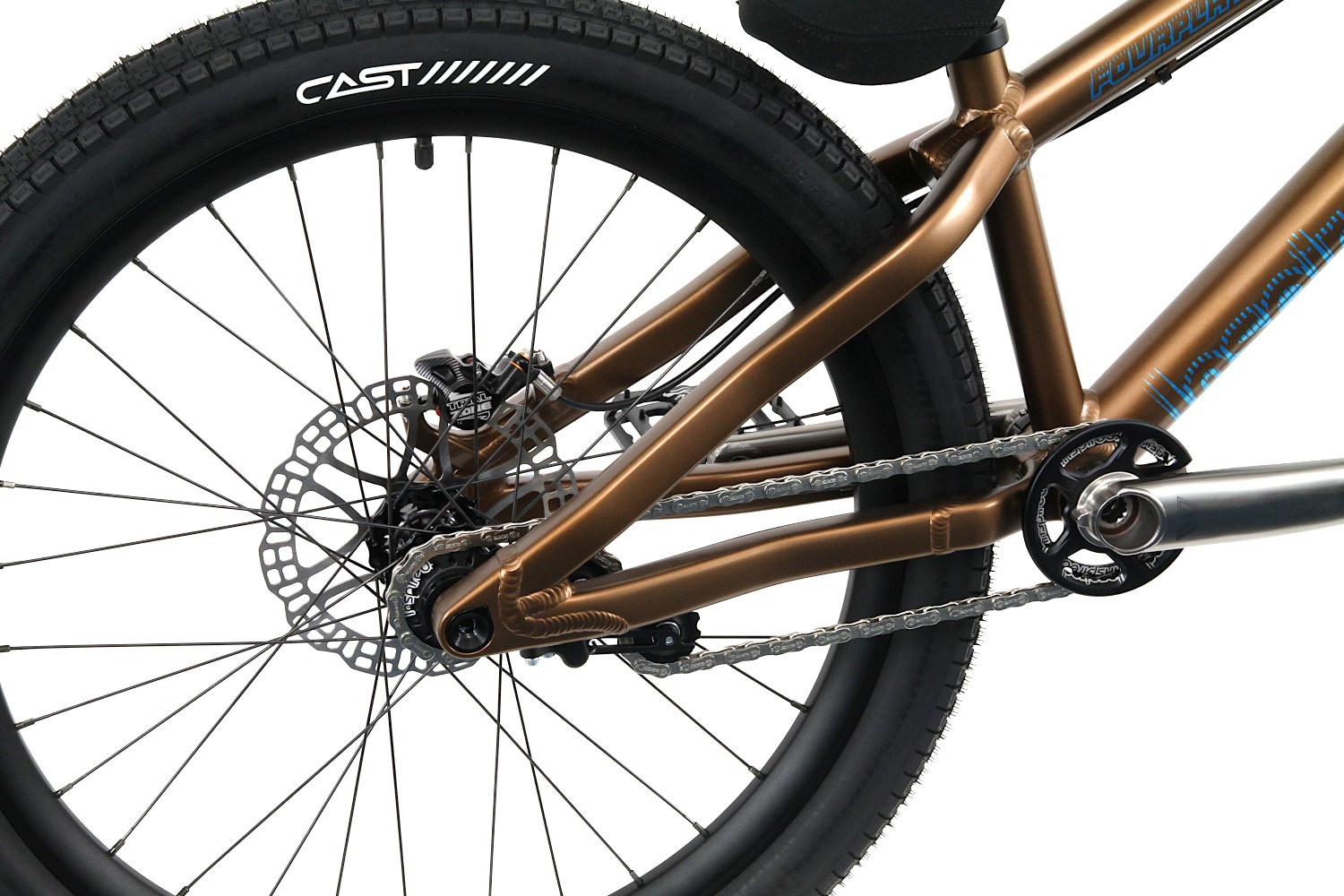

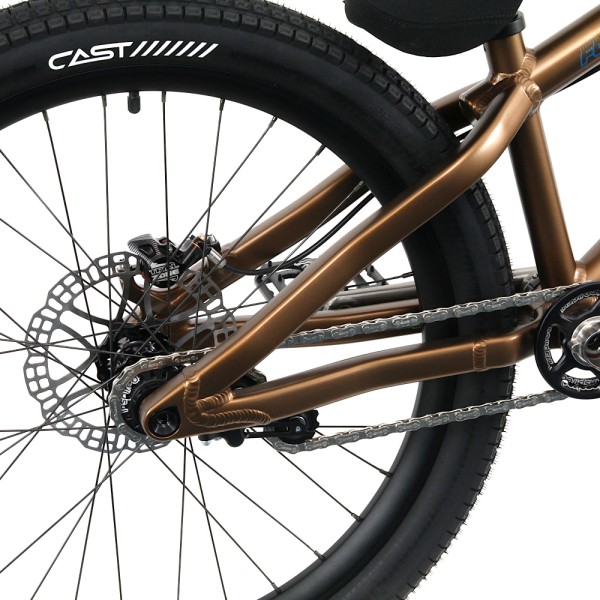

To increase strength, stiffness and tyre clearance the Fourplay uses a custom hollow chainstay and bottom bracket yoke. Excess material has been carefully removed from this area to help reduce the weight while shortening the chainstays and maintaining the associated performance benefits. The frame also features a 12mm bolt through rear axle that screws into a custom tapered insert within the dropout for a secure and reliable fit.

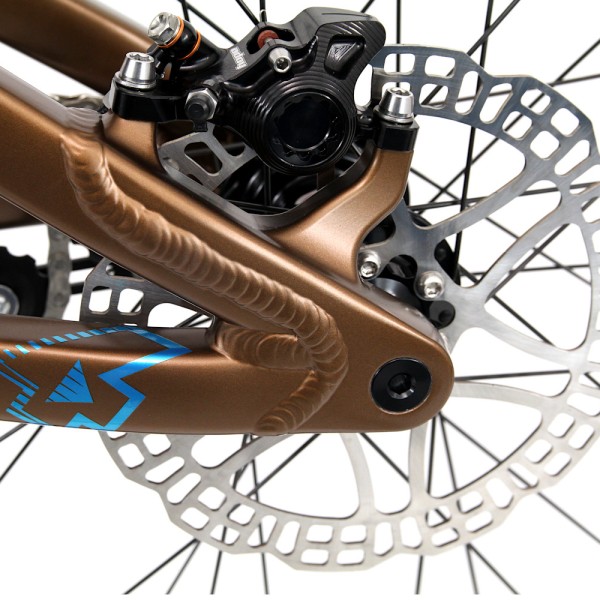

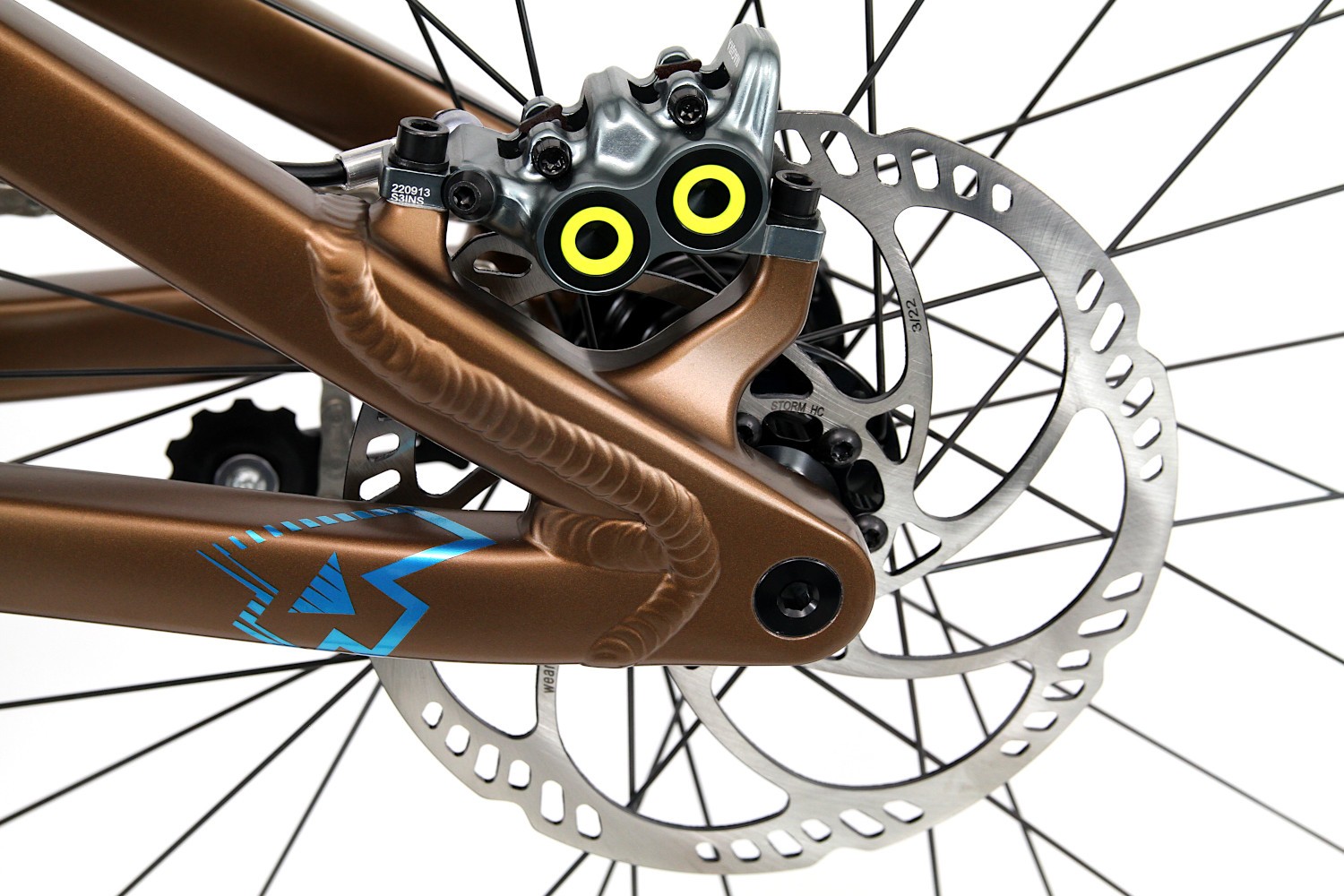

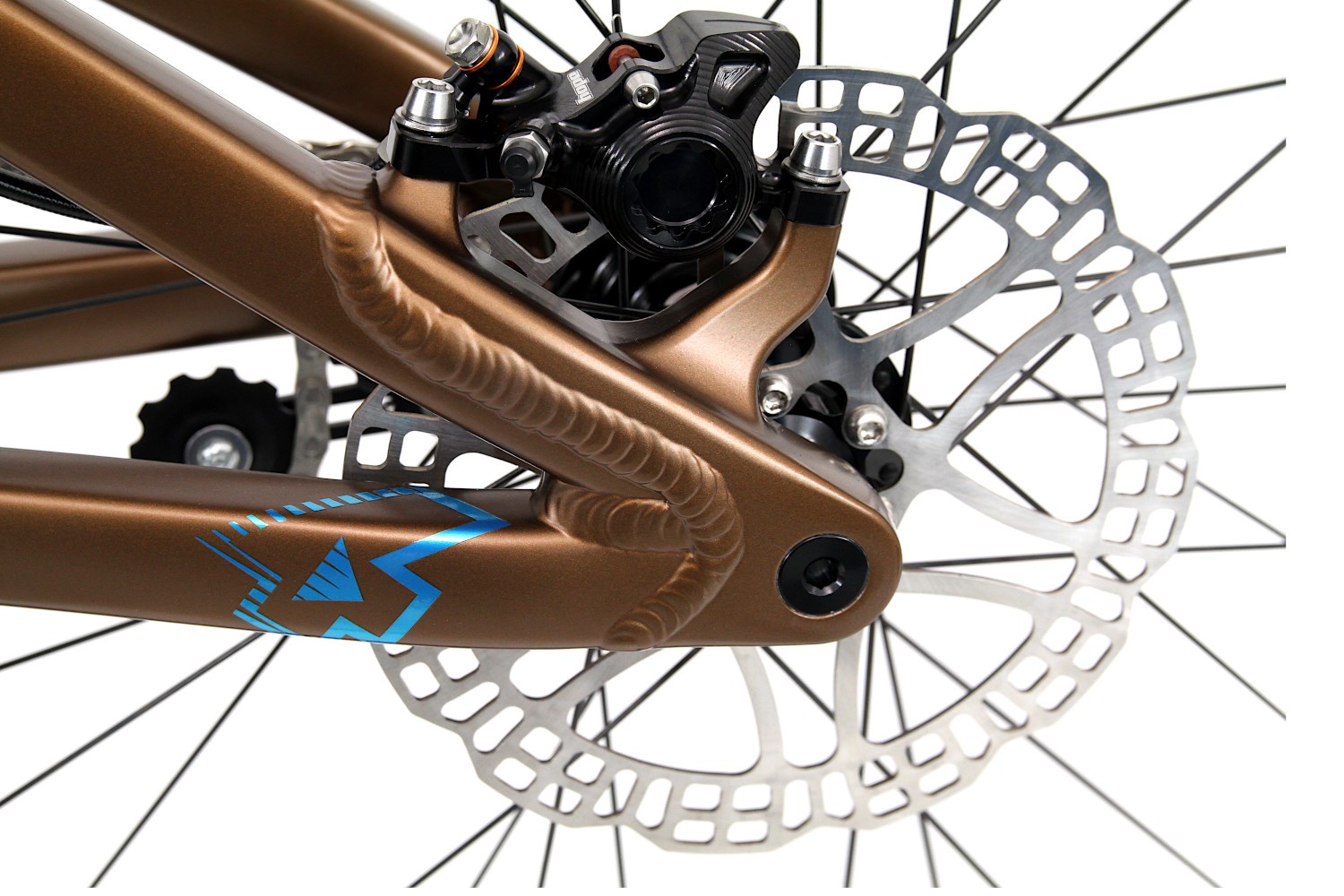

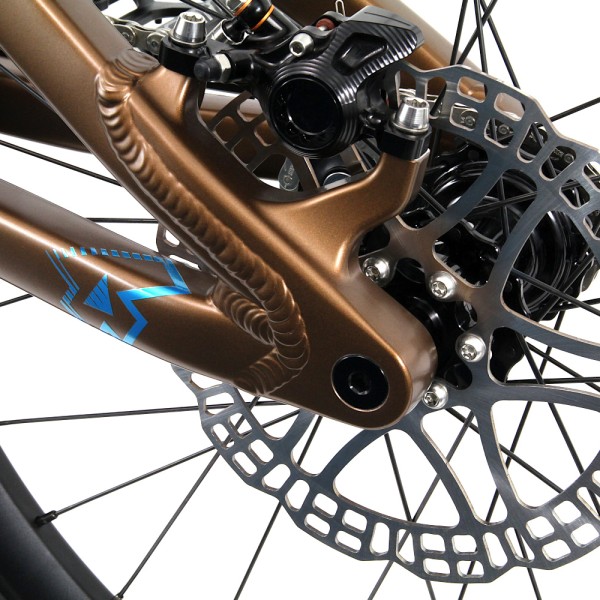

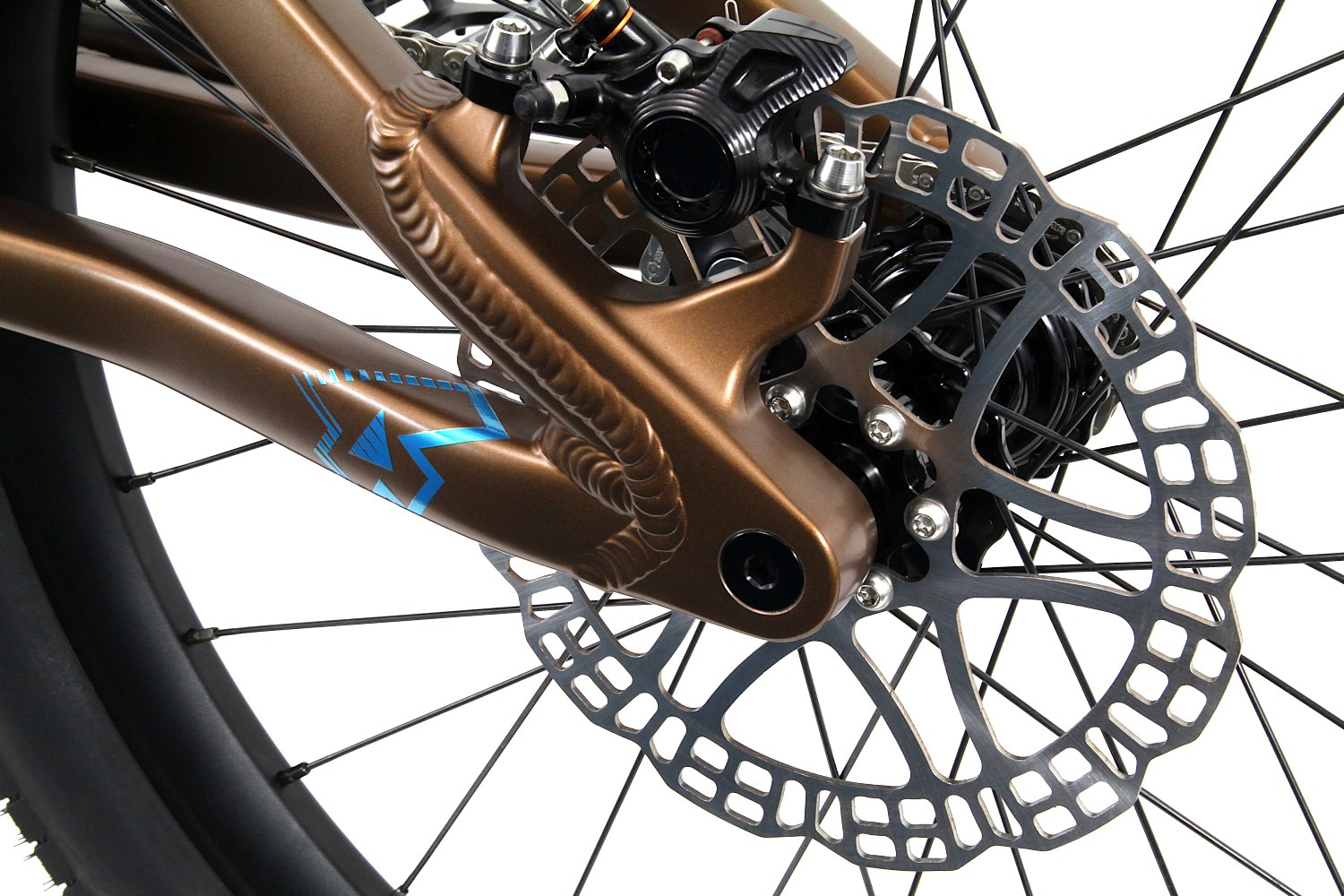

The frame and fork feature reinforced Post Mount disc brake mounts (maximum rotor size 185mm) thereby removing the need for additional brake caliper adaptors. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength. Exclusive-design seat and chainstay tubing improves both crank and heel clearance while the custom shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.

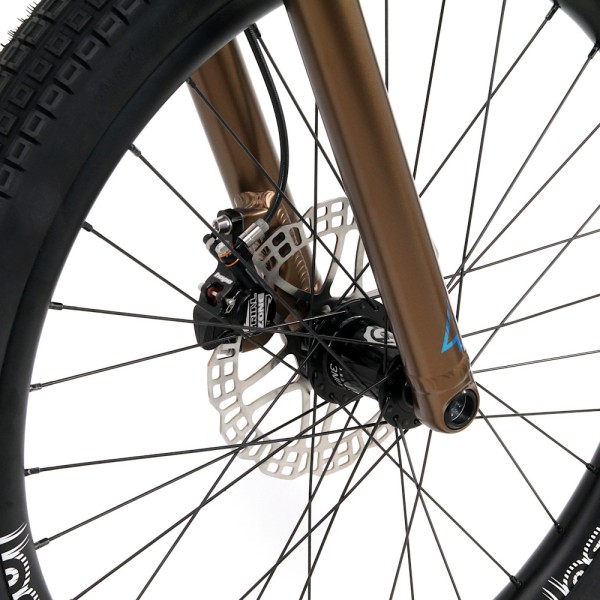

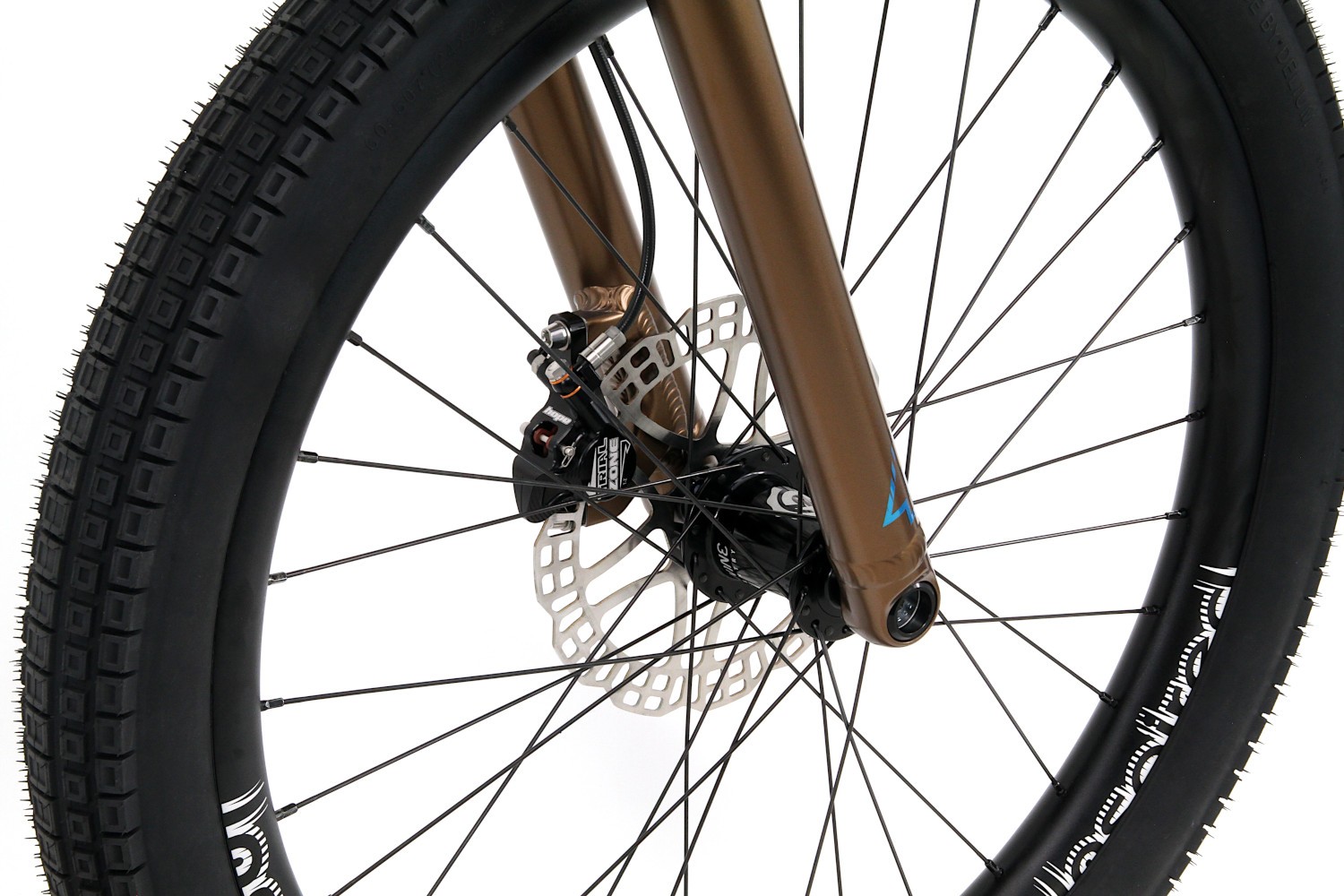

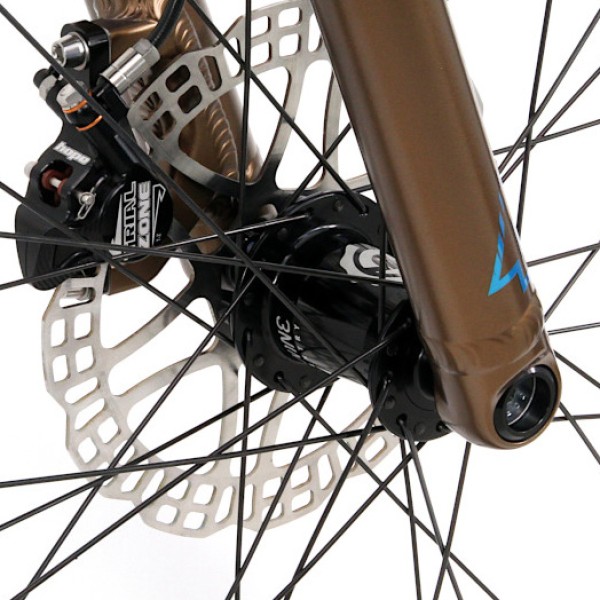

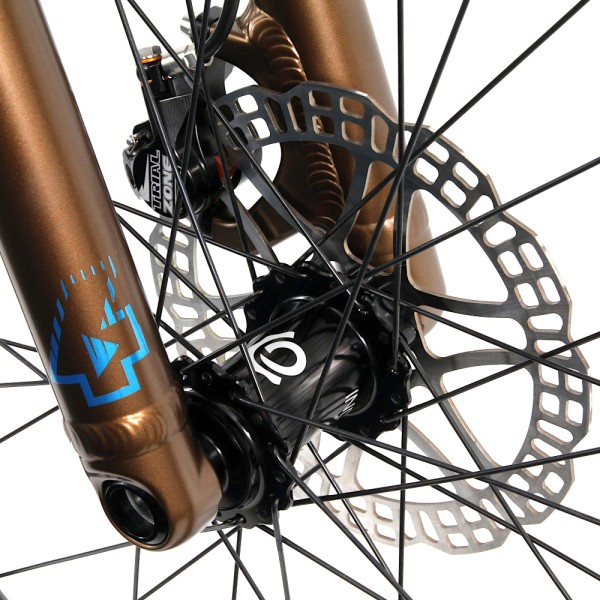

The Fourplay Team fork features a tapered steerer and innovative crown construction for improved durability and reduced weight. The 20mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. A unique and innovative captive bolt and cover system on the fork allows the axle to be removed whilst those parts remain in place in the dropout ready for refitting. Furthermore, increased tyre clearance at the fork crown area gives better clearance when routing the front brake hose through the steerer tube (via the custom screw-in top cap).

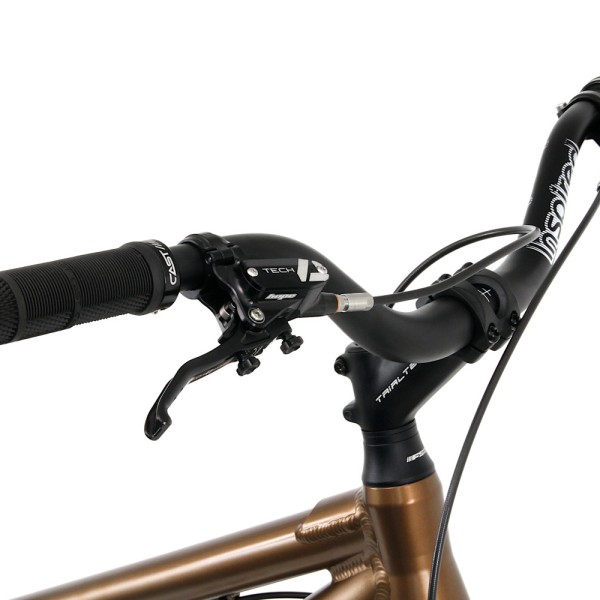

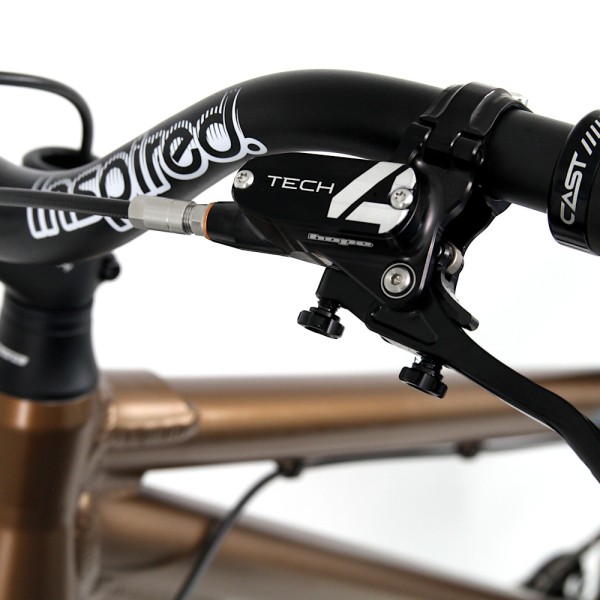

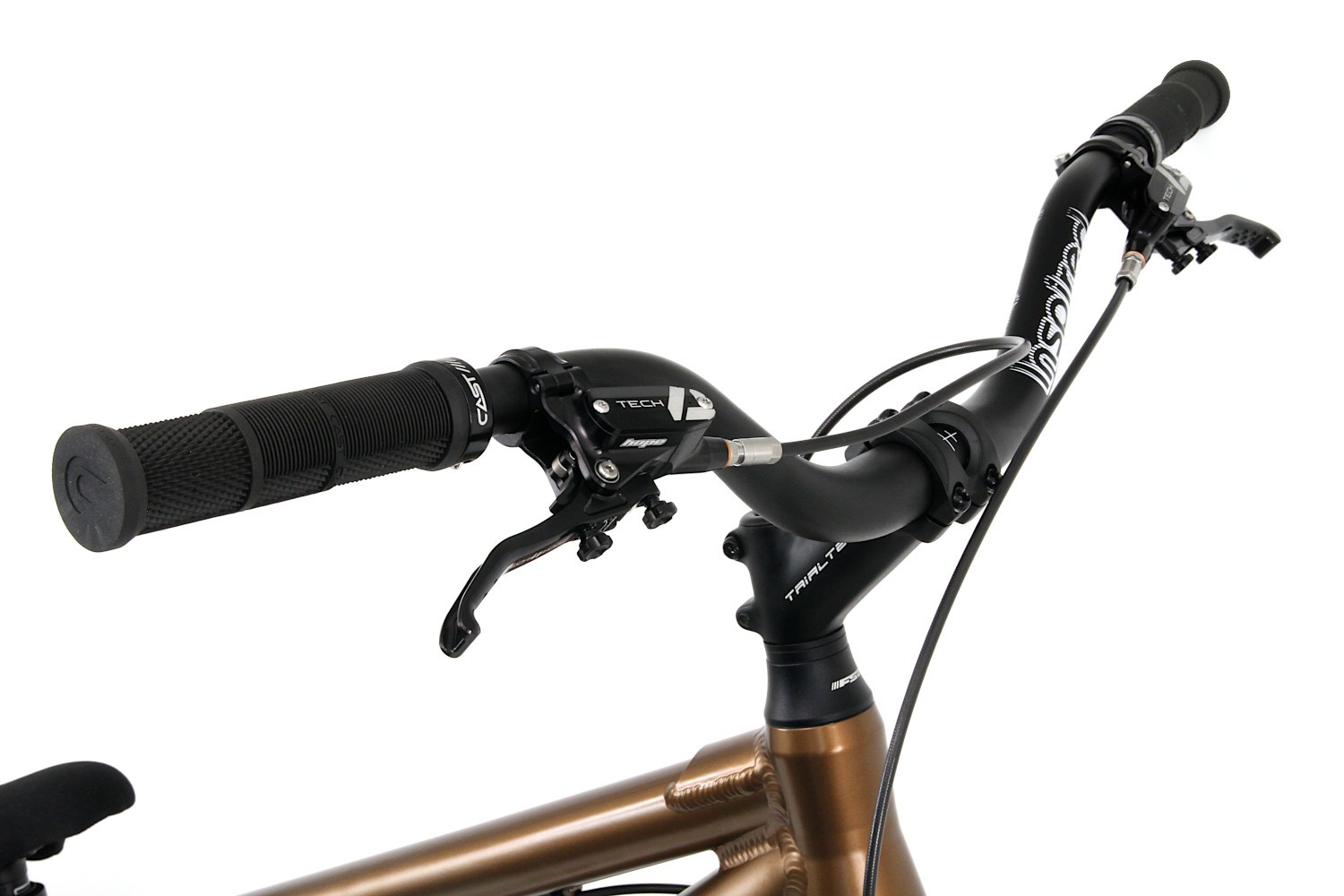

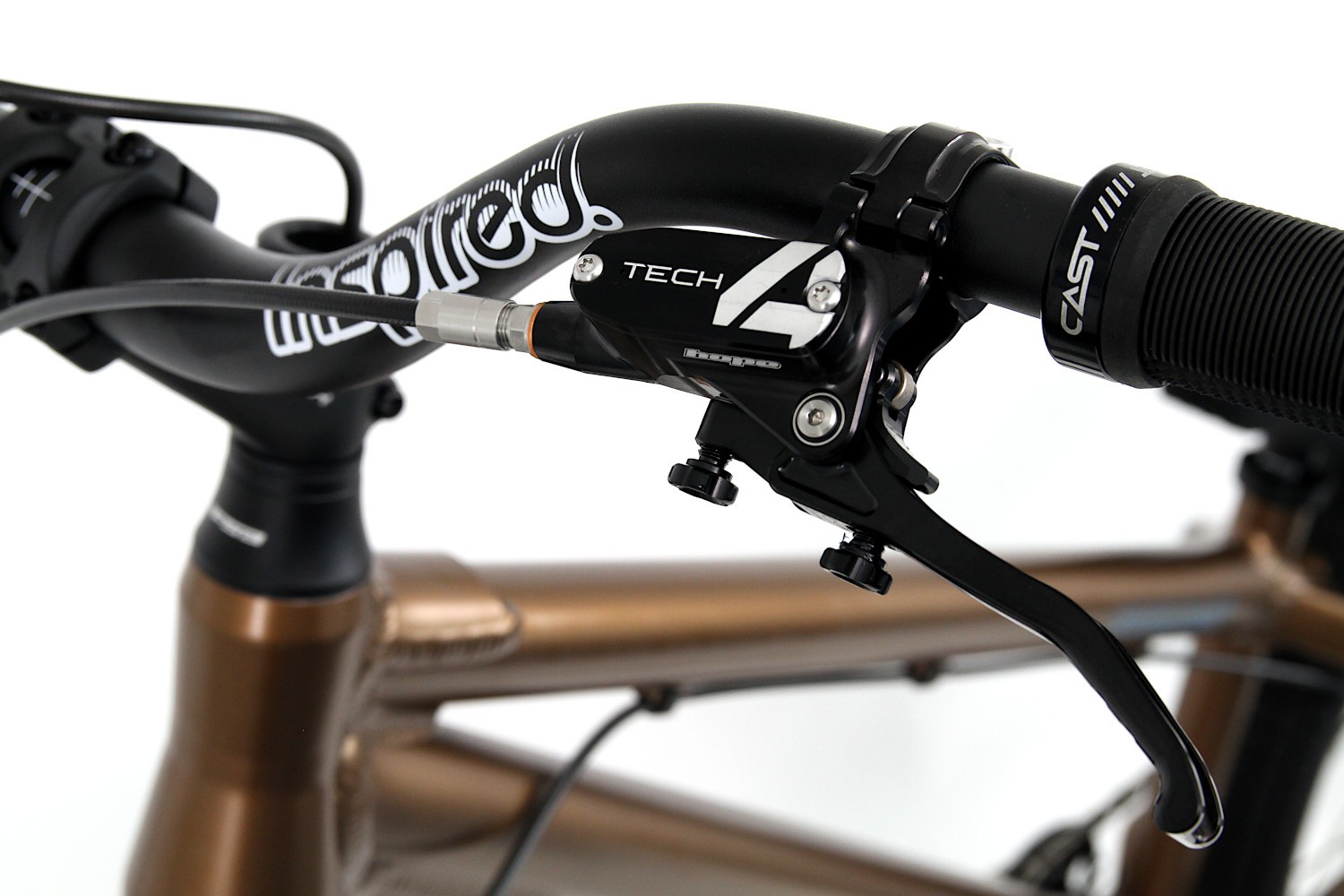

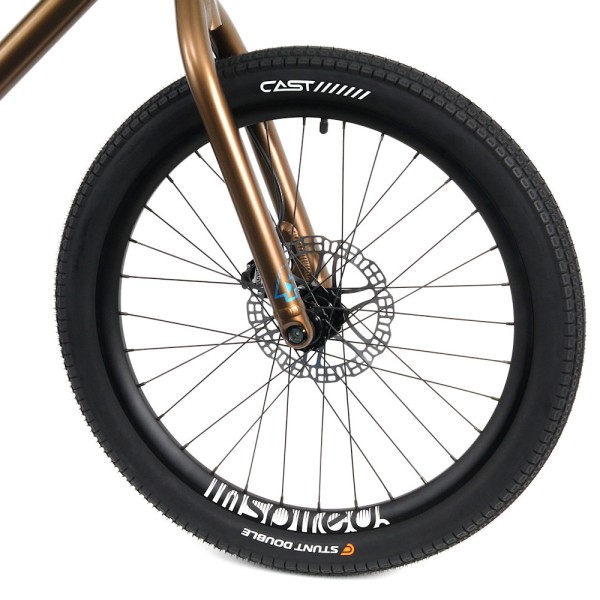

Using components from some of the world’s leading manufacturer’s results in a bike that is capable of performing at the very highest level of street riding. Steering is handled by a Trialtech Sport forged stem, Inspired Team riser handlebars and Cast Bamba lock-on grips. Drivetrain components are Cane Creek eeWings titanium crankset with custom direct mount sprocket/bashring, super grippy Inspired Team V3 platform pedals, KMC chain and Inspired Team sprung chain tensioner. Hope Tech 4 - Trial Zone disc brakes front and rear offer excellent braking power in all weather conditions and improved control, helping riders to develop a smoother and more accurate style. The wheels are hand built using Industry Nine Hydra hubs, Sapim Race double butted spokes and Inspired Team V2 (tubeless-ready) rims fitted with Cast Stunt Double 24" street tyres.

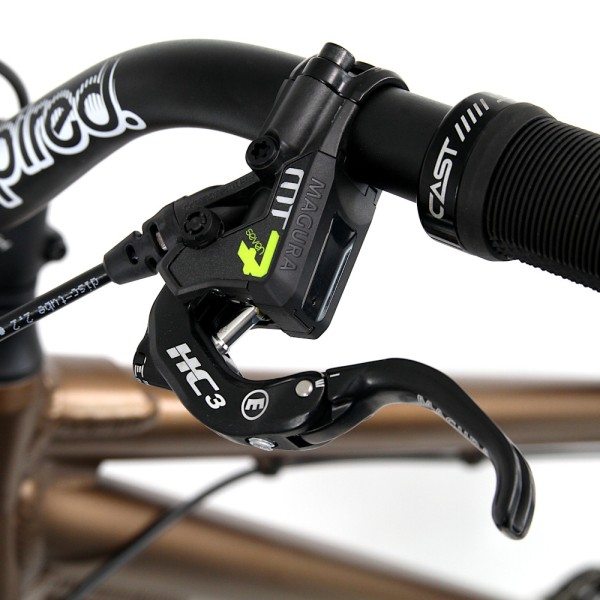

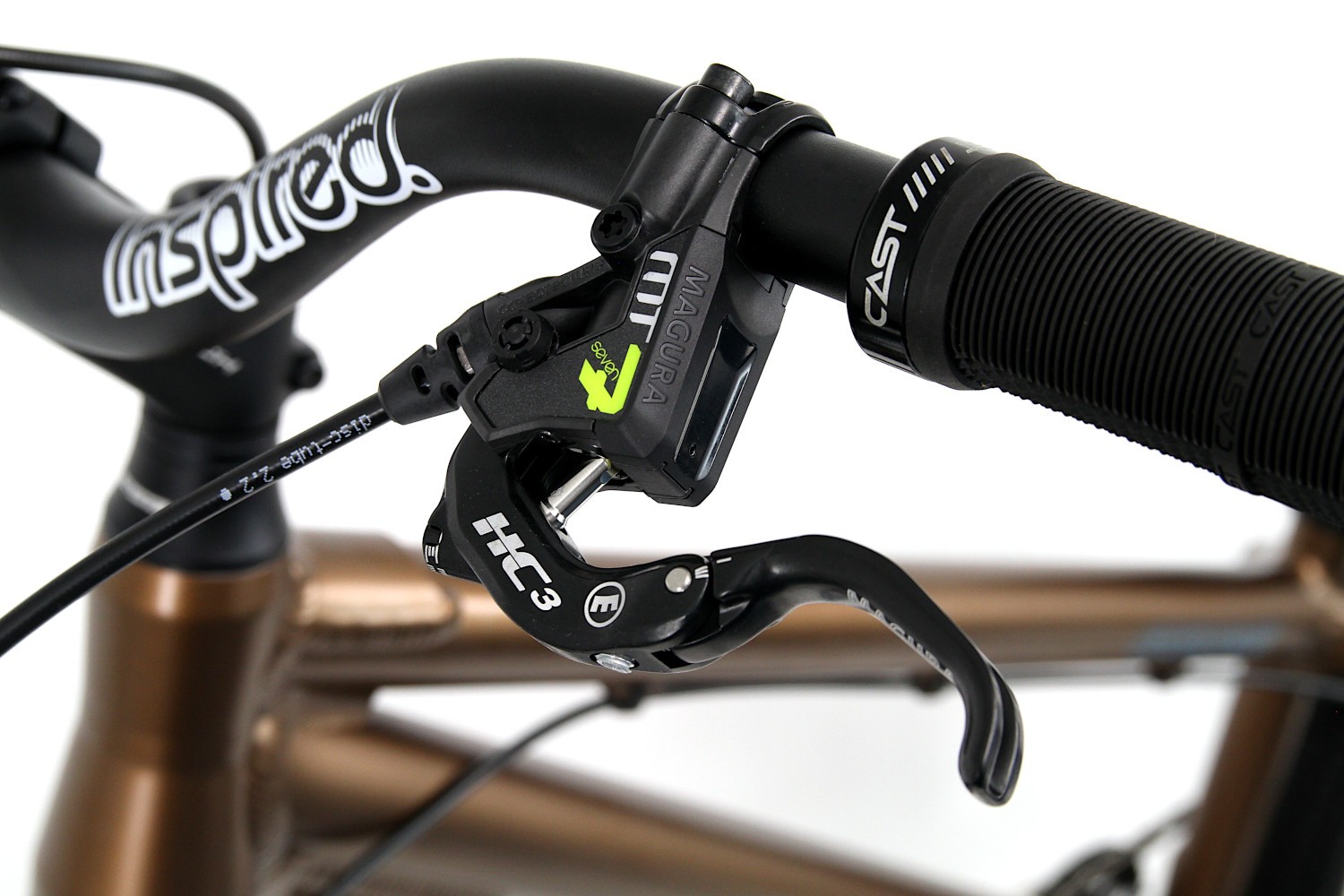

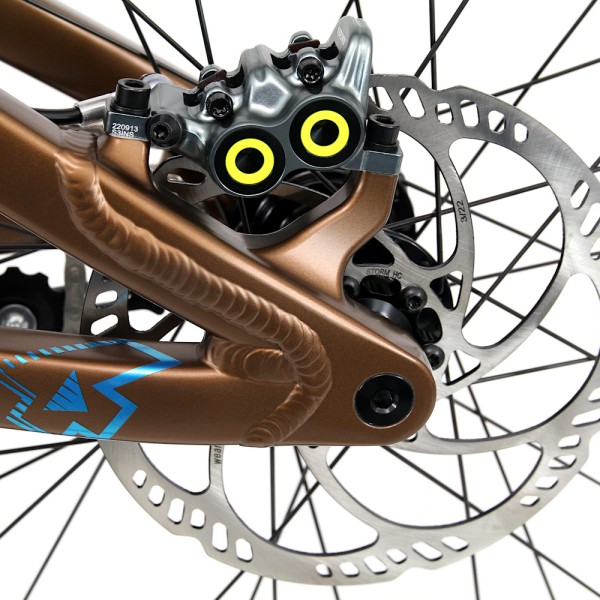

Also available with Magura MT7 HC3 brakes option*.

Available in Satin Bronze (Gloss Chrome Blue Graphics) only.

Suggested height: 1.55m/5ft 1in - 1.95m/6ft 4in

THROUGH AXLES
20mm front and 12mm rear through axles for maximum stiffness

TOP-OF-THE-RANGE HUBS
Industry Nine Classic Hydra hubs front and rear

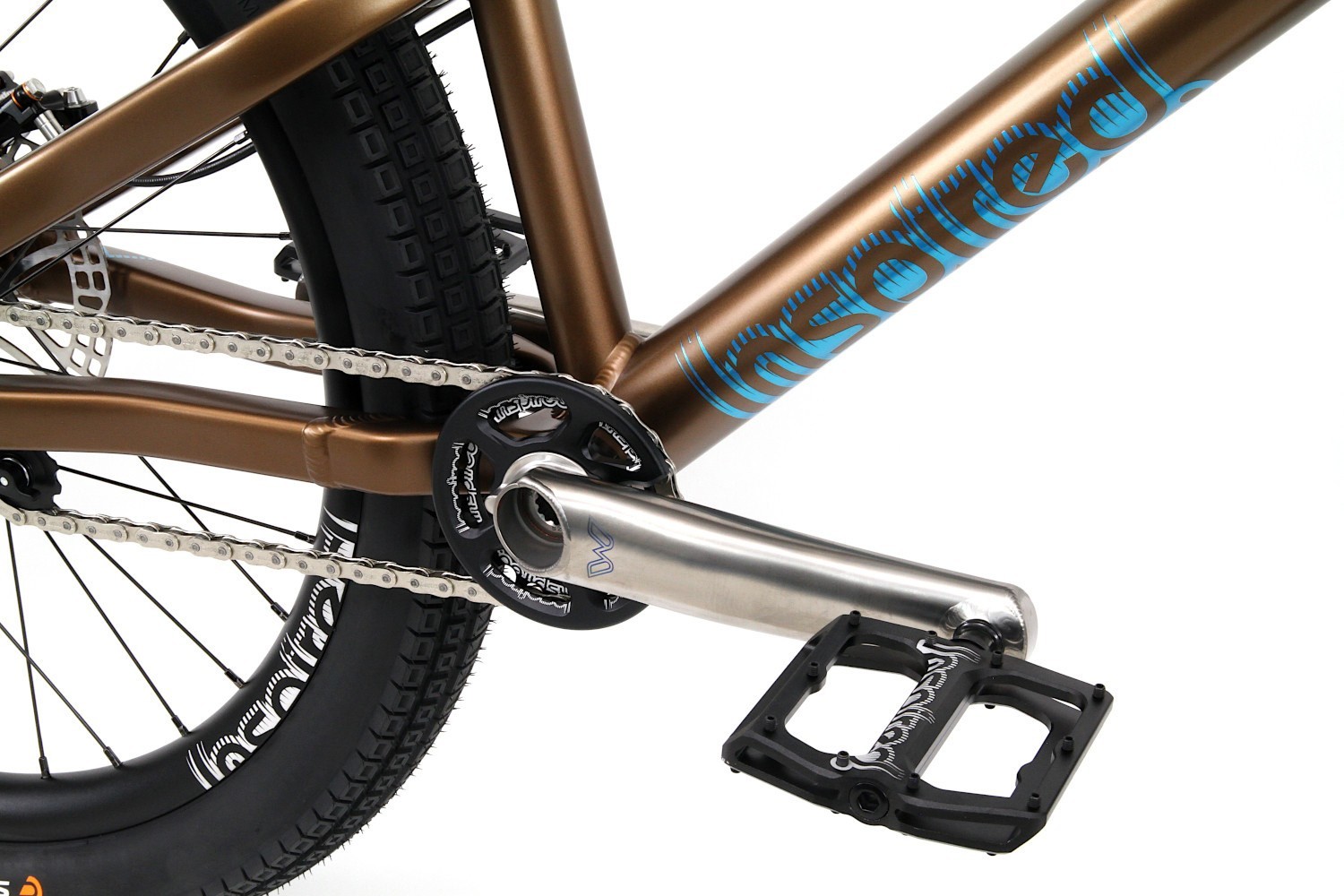

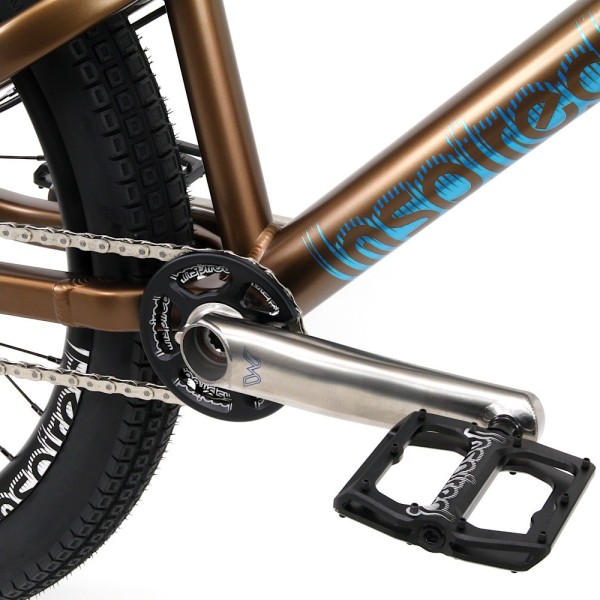

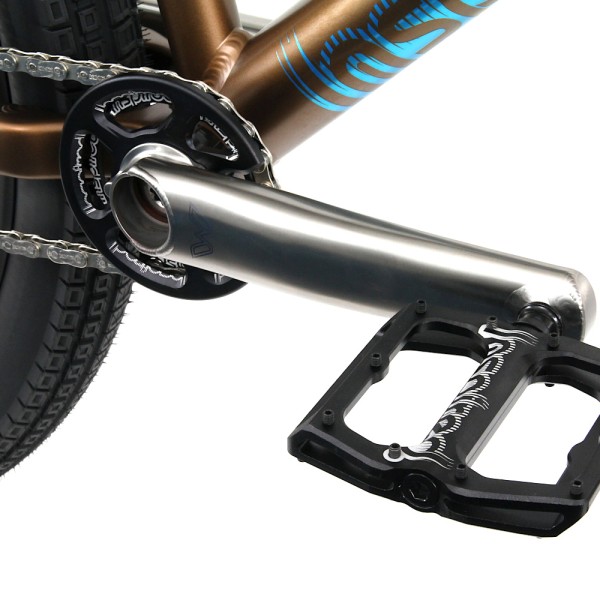

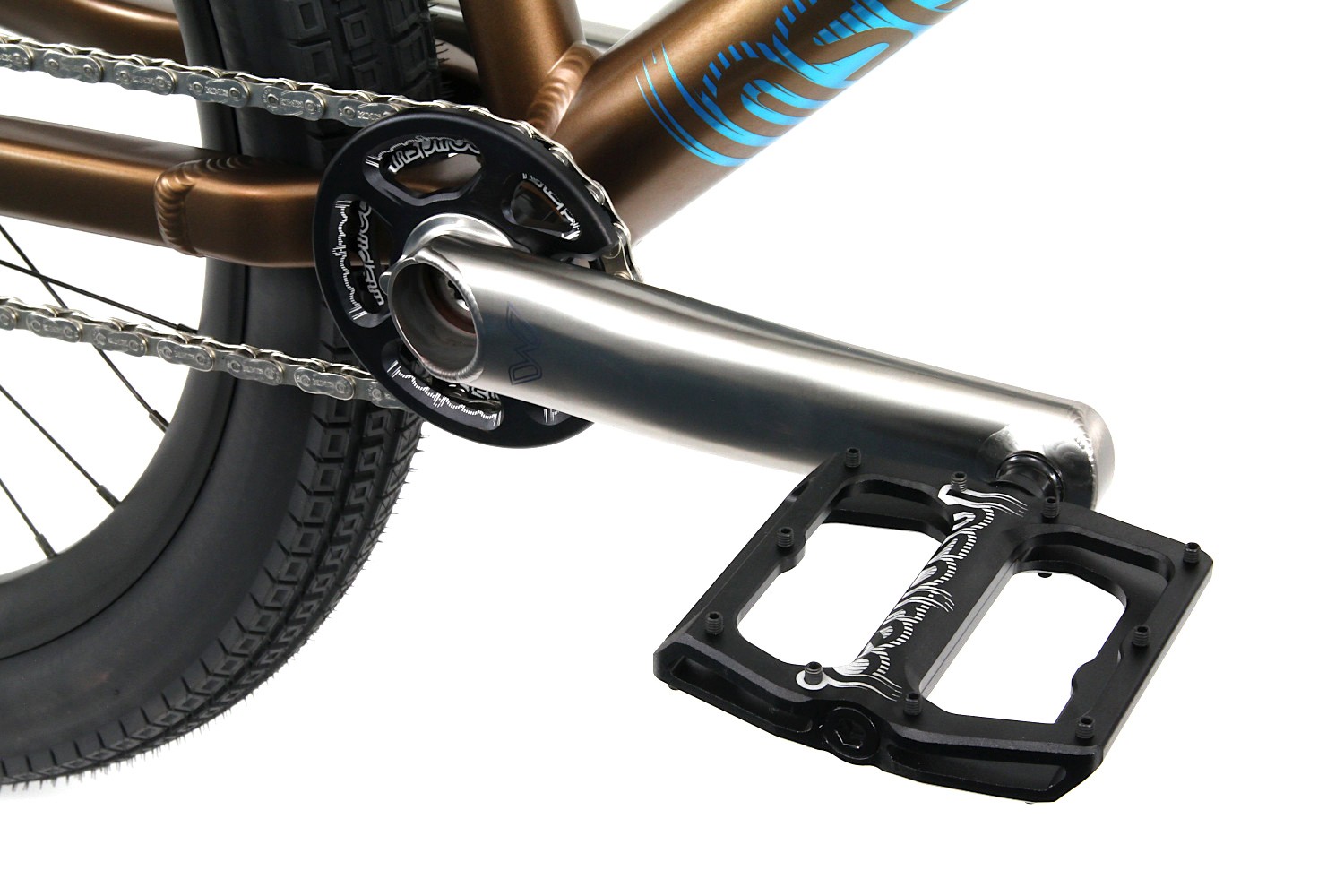

TITANIUM CRANKSET
Cane Creek eeWings Crankset with custom Inspired Bashring!

CAST PARTS KIT

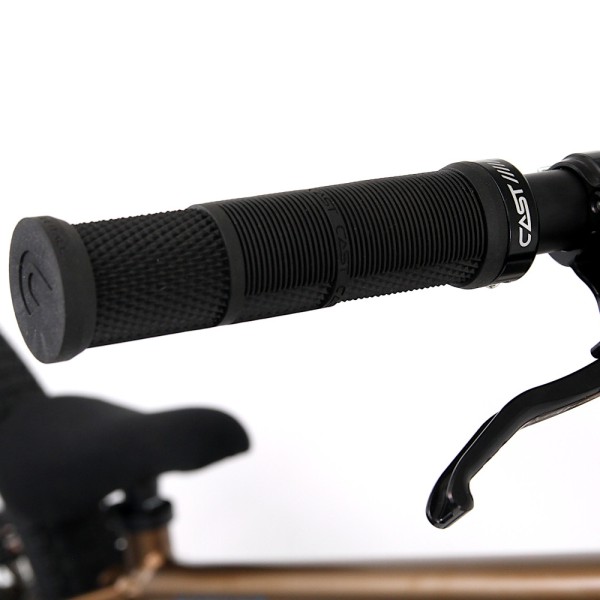

Cast Bamba Lock-On grips and Stunt Double Tyres

BRAKE OPTIONS
Magura MT7 HC3 or Hope Tech 4 Trial Zone brakes

Technical Data

Frame

- Inspired Fourplay 24", 6066-T6 aluminium alloy, Satin Bronze (Gloss Chrome Blue Graphics)

Compatibility
- Through axle: 135 x 12mm
- Bottom bracket: 73mm BSA
- Headset type: Tapered Integrated, 1 1/8" Upper, 1.5" Lower
- Seat tube diameter: 27.2mm
- Brake mount: 180 Post Mount

Fork

- Inspired Fourplay Team, Tapered Steerer Tube, 20mm Bolt Through Axle, Colour Matched to Frame

Compatibility
- Steerer tube: 1 1/8" to 1.5" tapered
- Through axle: 110 x 20mm Non-Boost
- Brake mount: 180 Post Mount

Brakes

- Brakes: Hope Tech 4 Trial Zone, 180mm Trial Zone V2 Rotors

Optional Upgrade*

- Magura MT7 HC3, 180mm Storm HC Rotors

Drivetrain

- Cranks: Cane Creek eeWings Titanium Crankset, 175mm
- Chainring: Inspired eeWings Integrated Bashring/Chainring, 22T, built-in axle spacer, individually custom numbered
- Bottom Bracket: Cane Creek Hellbender 70, Black

- Chain: KMC Z1eHX-N
- Rear Sprocket: Trialtech Team Alloy Splined, 16T, Black
- Pedals: Inspired Team V3 Platform, Satin Black
- Chain Tensioner: Inspired Team, Sprung, Black

Wheels

- Front Hub: Industry Nine Hydra Classic 6B Front, 20mm bolt through axle, 32h, 110mm Non-Boost, Black
- Rear Hub: Industry Nine Hydra Classic SS 6B Rear, 12mm bolt through axle, 32h, 135mm, Black

- Rims: Inspired Team V2 (tubeless-ready), Satin Black

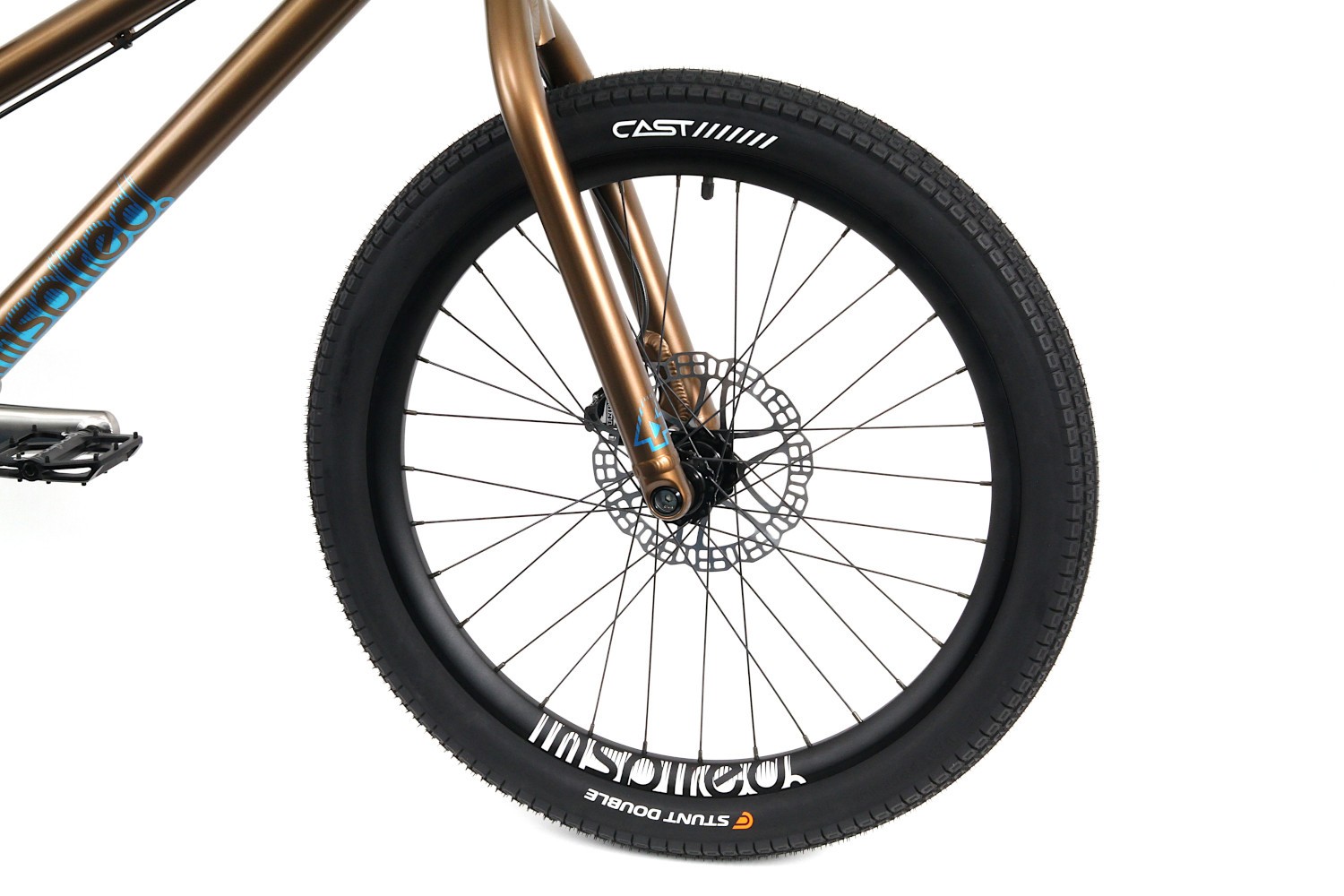

- Tyres: Cast Stunt Double 24 x 2.4"

Steering

- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black
- Stem: Trialtech Sport, 90mm x 35˚, Satin Black
- Grips: Cast Bamba Lock-On
- Handlebars: Inspired Team 7075 Riser, Satin Black

Seating

- Saddle: Inspired Tripod Kevlar, Medium, Black
- Seatpost: Inspired Tripod
- Seat Clamp: Inspired, 31.8mm, Black

Geometry

- Wheelbase: 988mm
- Chainstay: 362mm
- BB Height: +15mm
- Head Angle: 74˚

Weight

- 10.45kg (Hope Tech 4 - Trial Zone Brakes)

* Please note: Additional costs apply.
