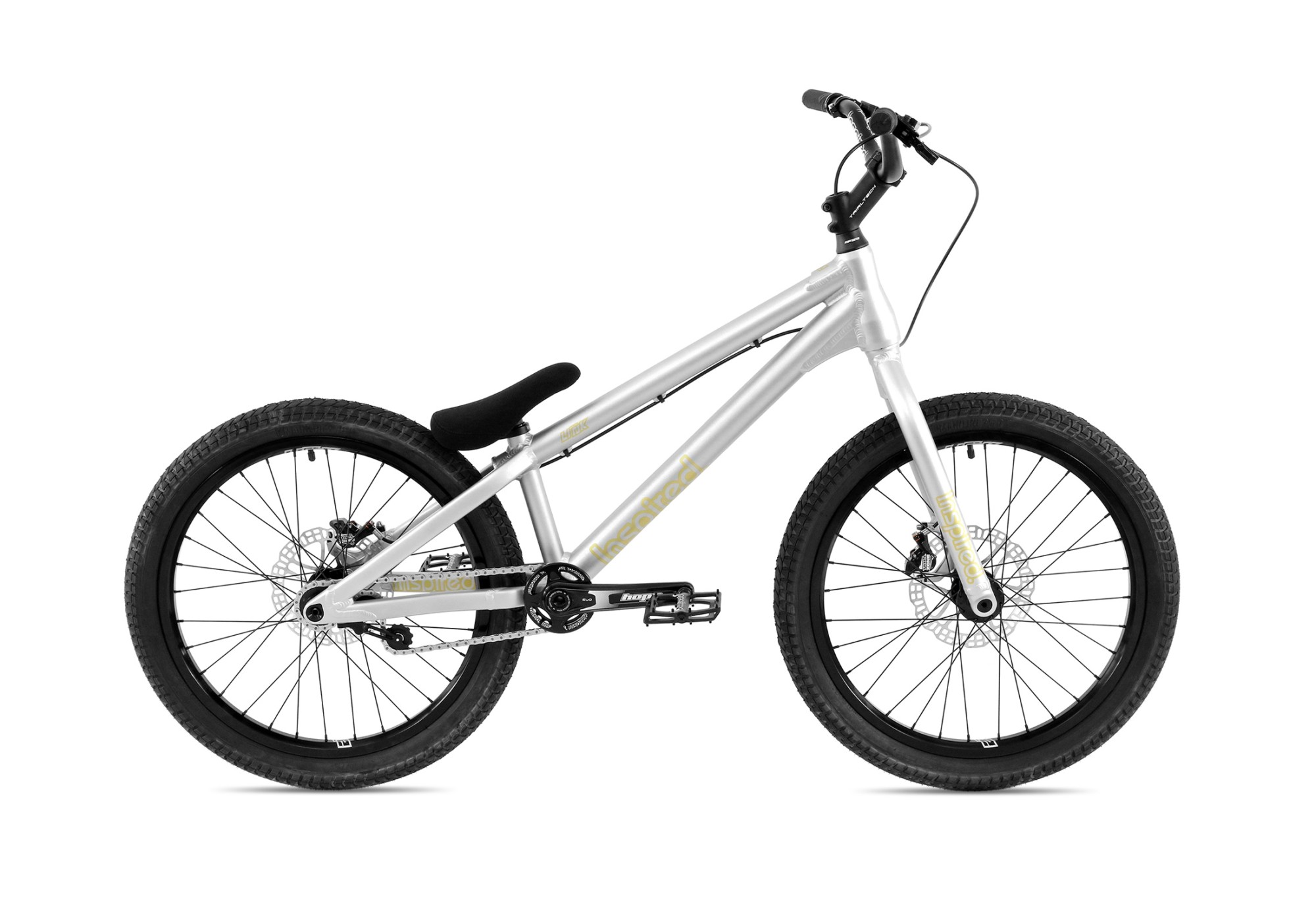

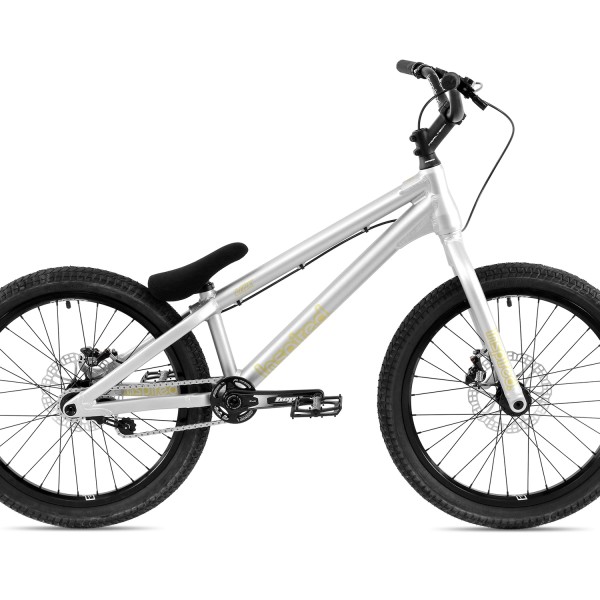

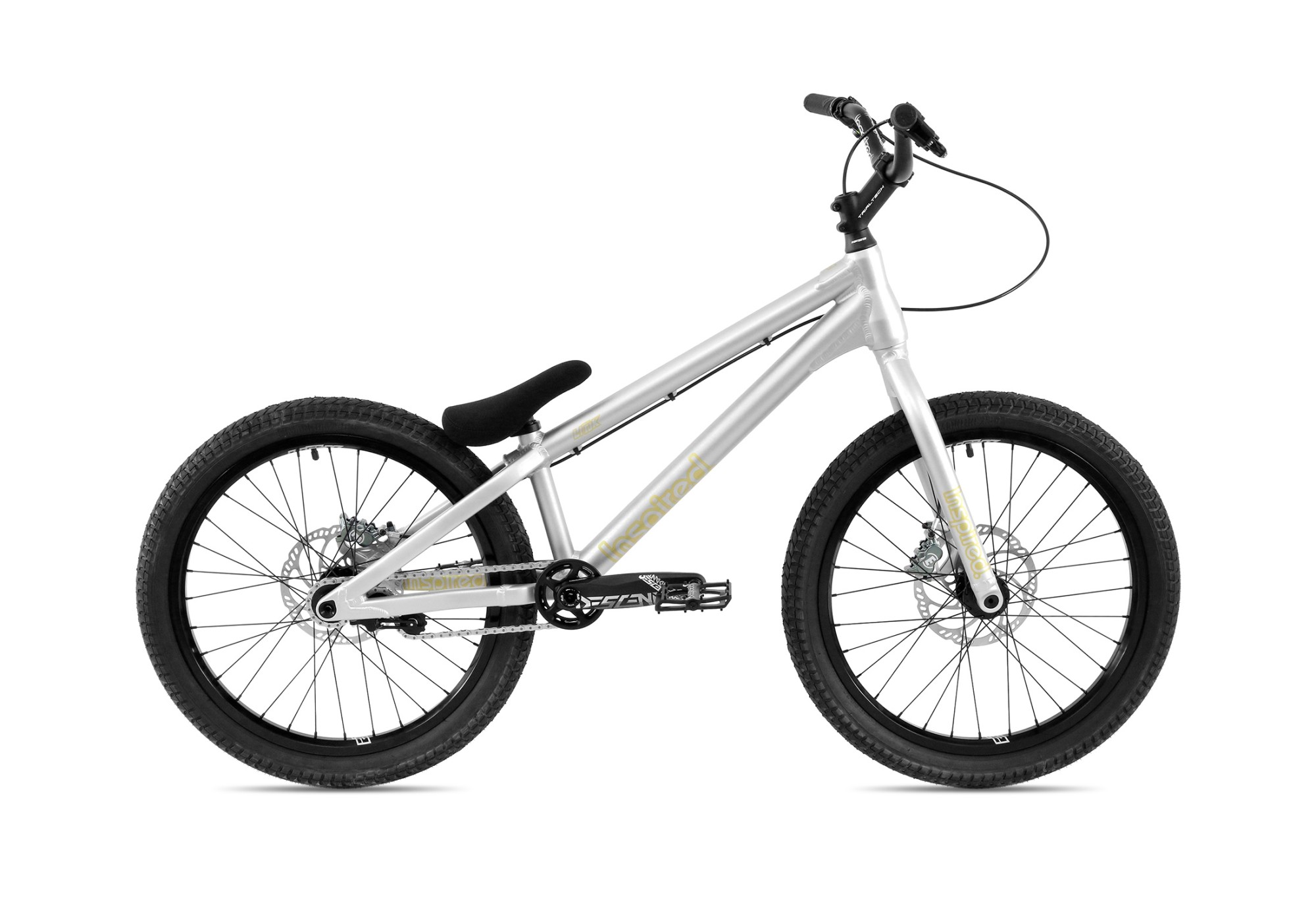

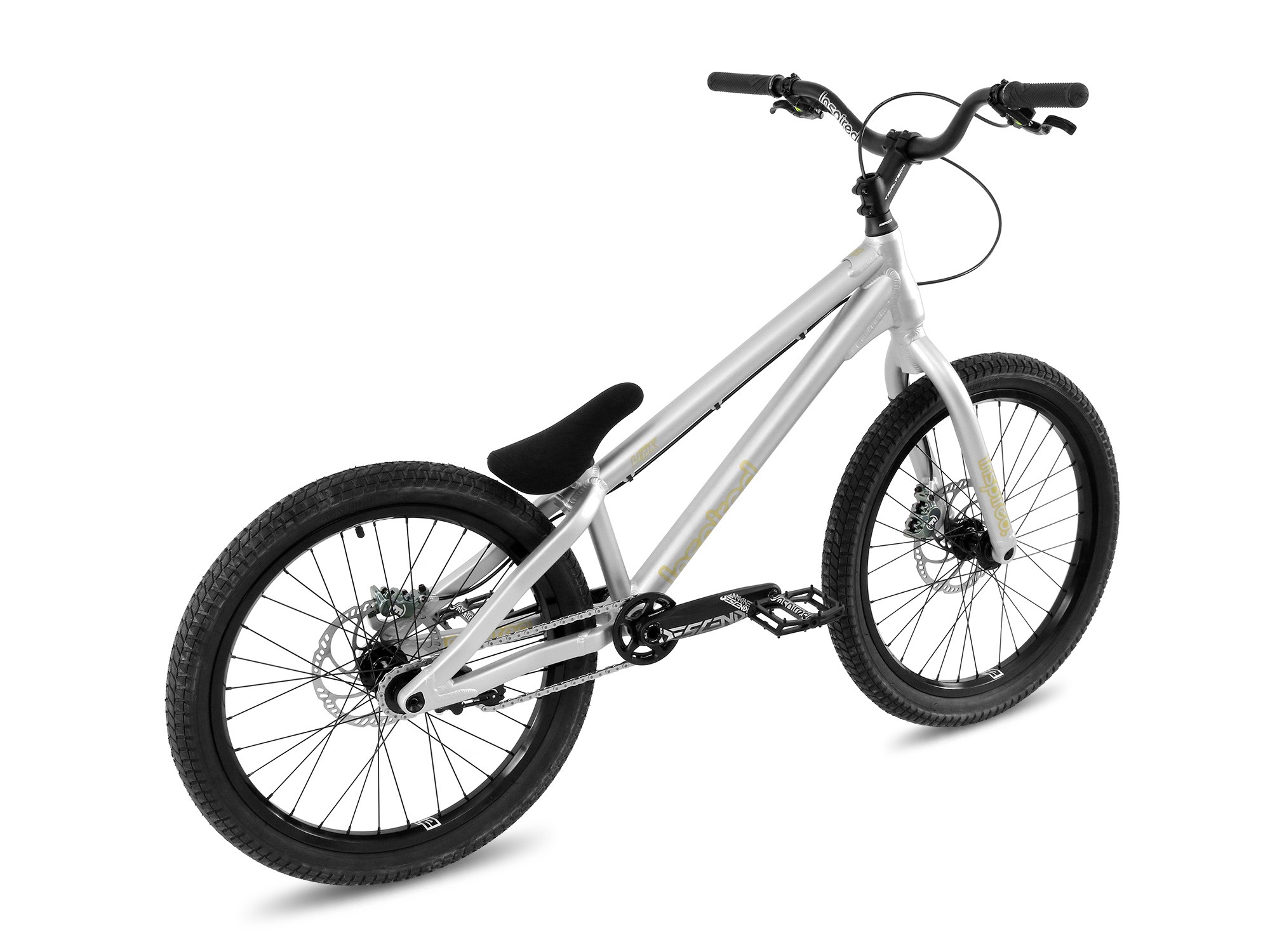

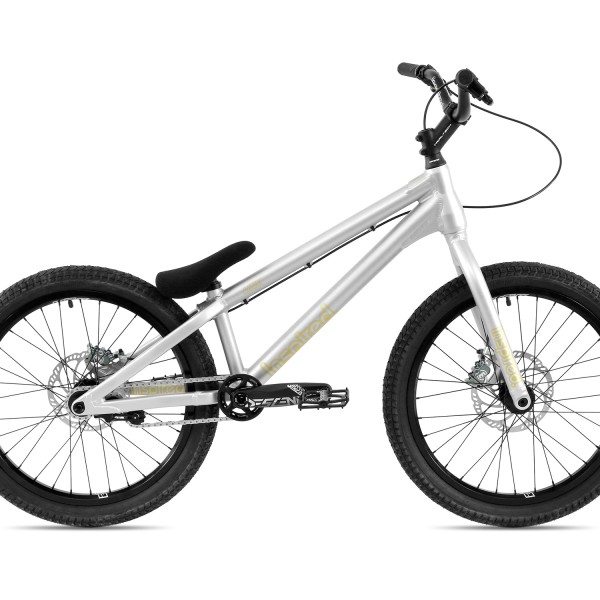

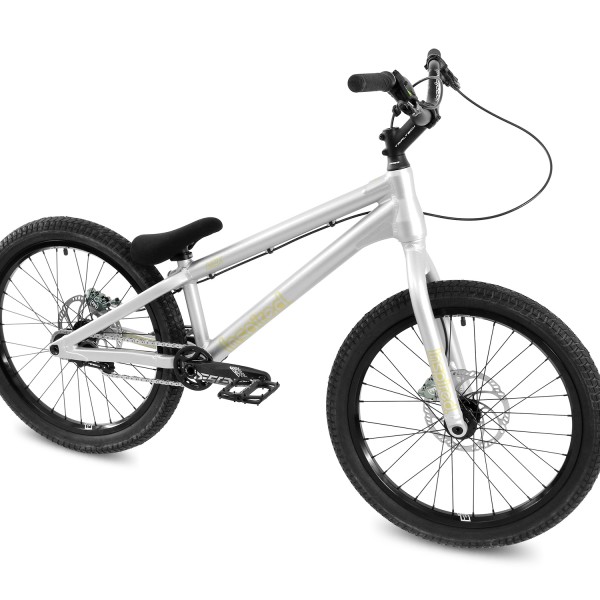

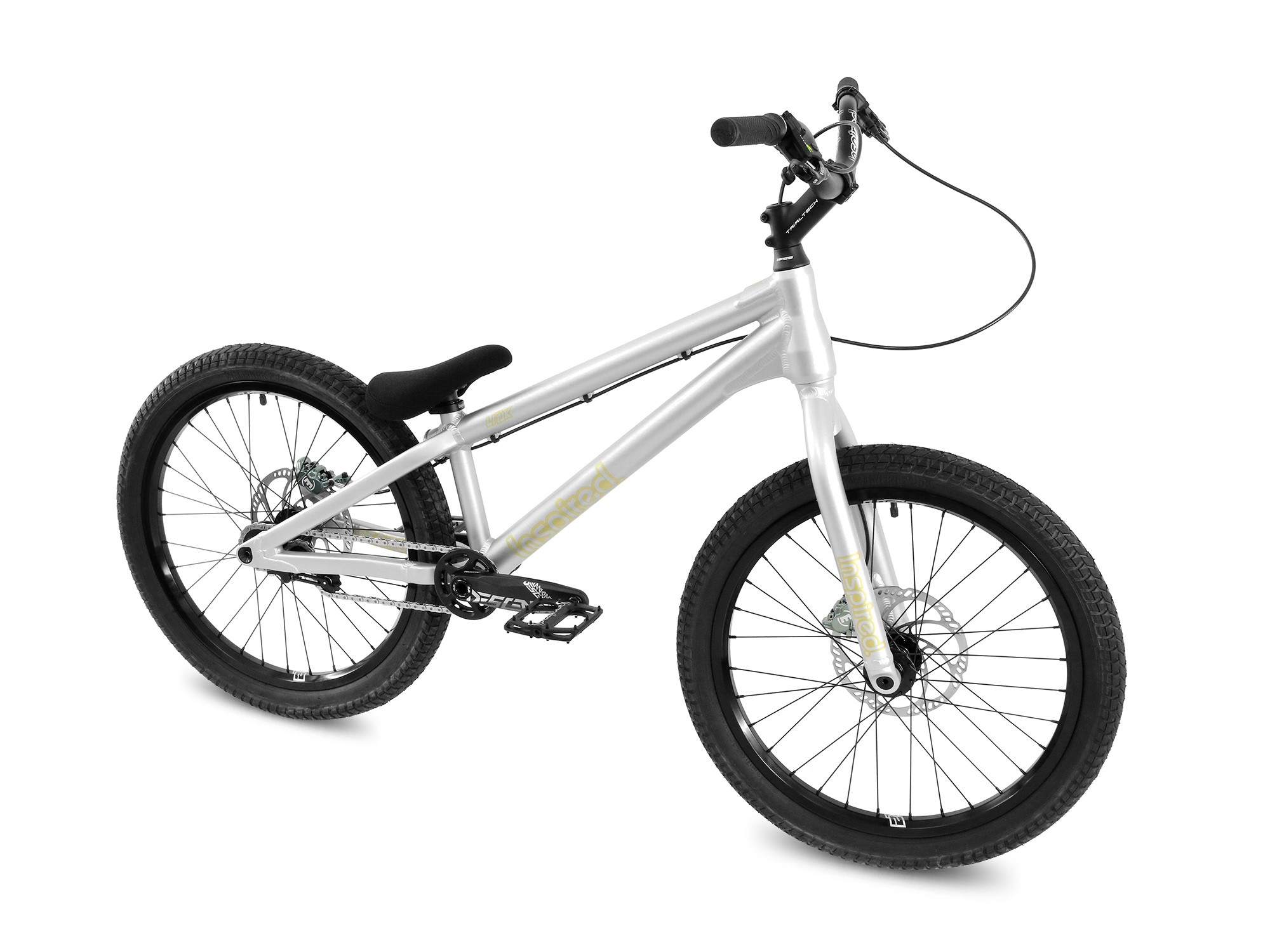

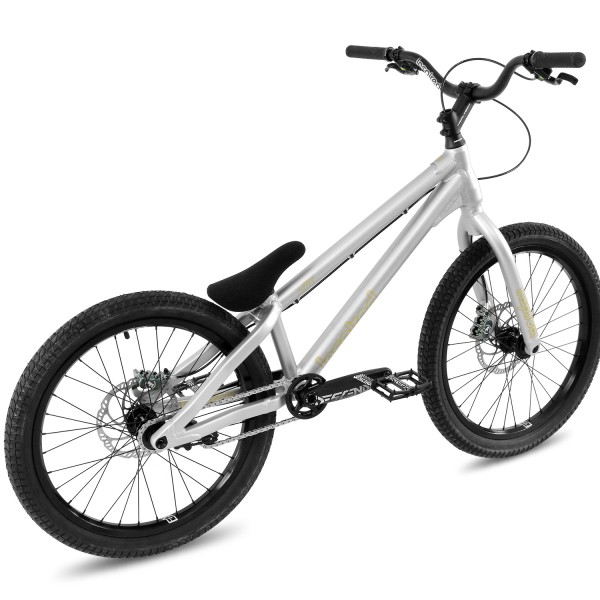

The top-of-the-range Inspired Link Team allows riders to push their limits every time they get on their bike. Key component upgrades over the Link Pro make it the highest performance 22" bike on the market.

Compact geometry - developed with team rider Yuki Kishi - improves the maneuverability and responsiveness of the Link, making it a highly capable machine for shorter riders or those who prefer smaller wheels. To ensure that the bike can handle that level of riding, the Link features key components from the Fourplay frame kit. This includes the tapered integrated head tube, integrated tensioner mount and through axles found on the 2023 Fourplay Team.

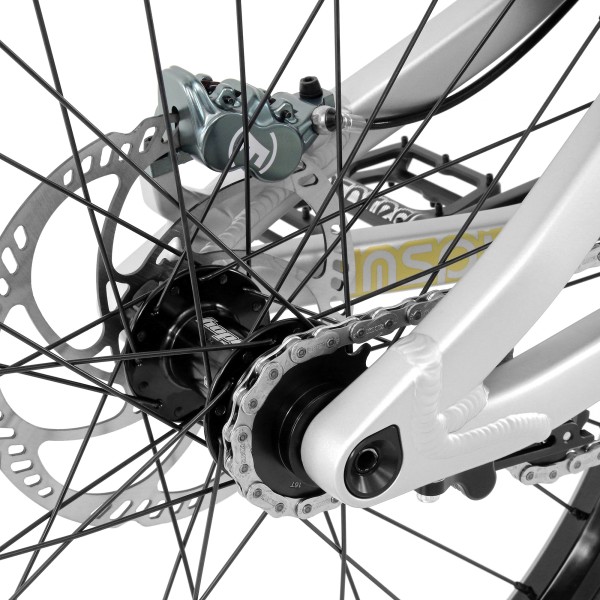

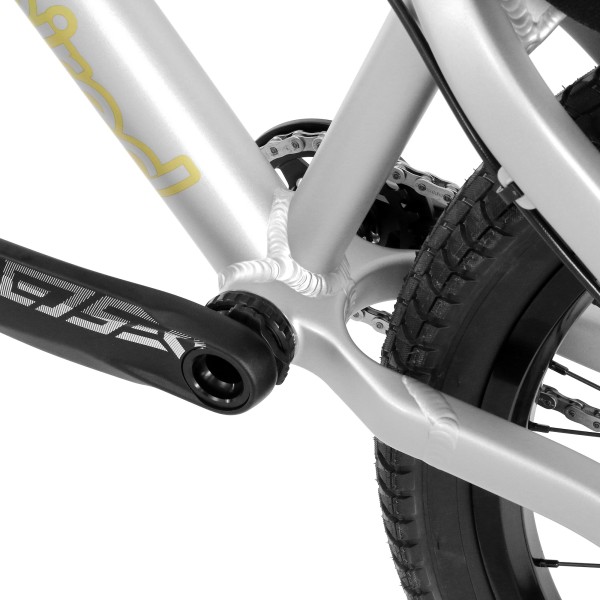

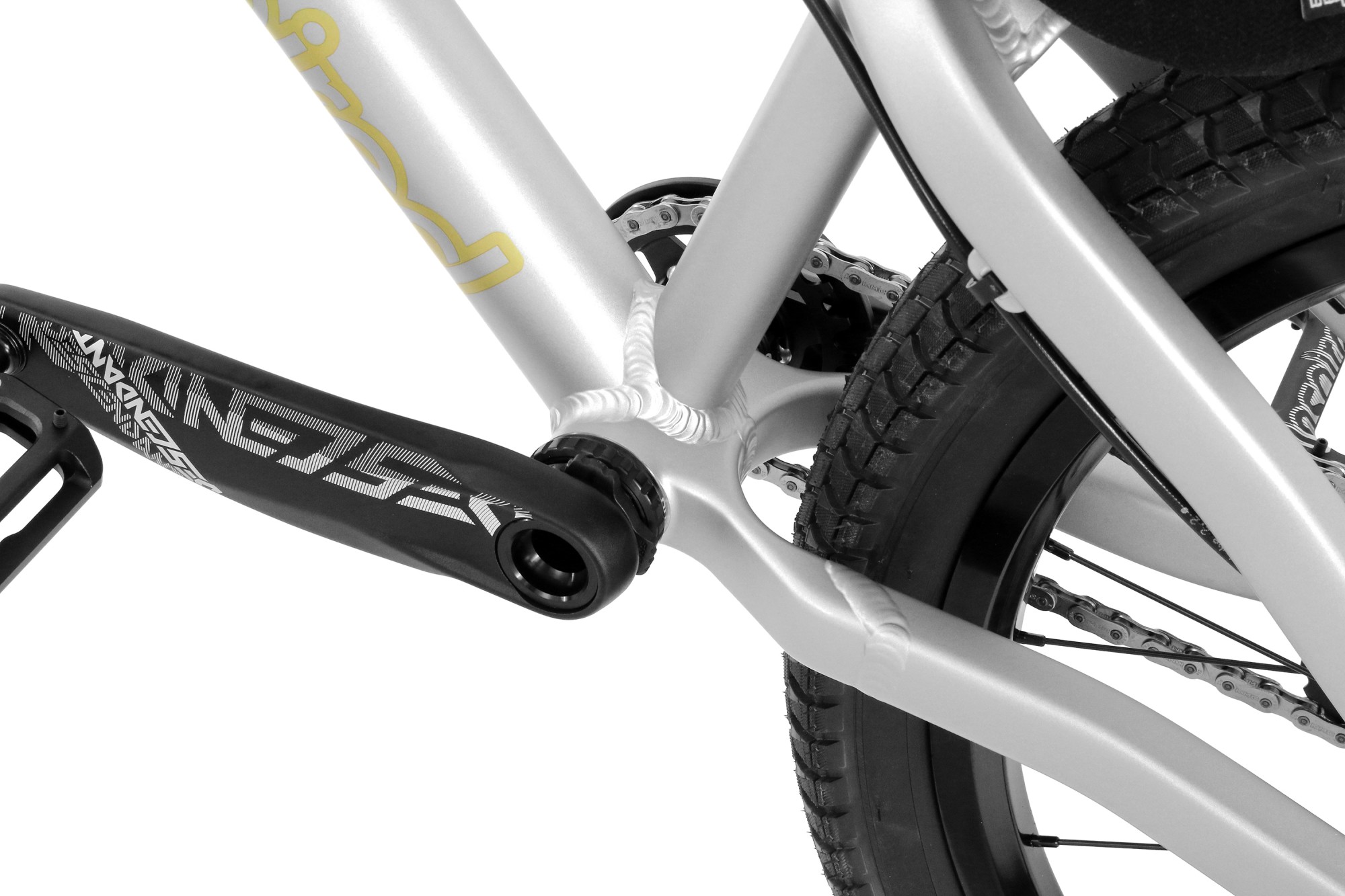

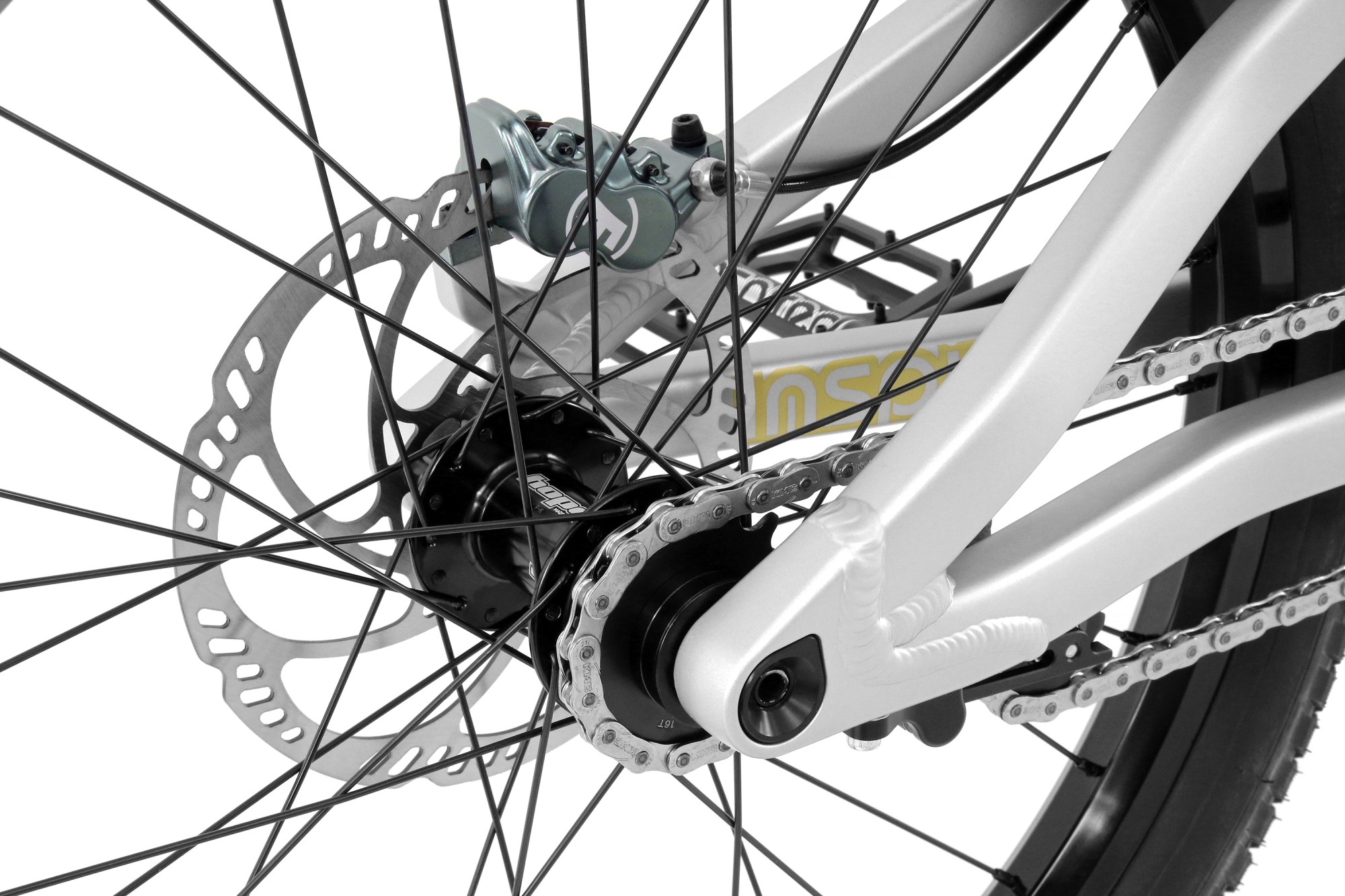

Another technology carried over from the Fourplay frame is the hollow chainstay and bottom bracket yoke. Excess material has been carefully removed from this area to help reduce the weight while shortening the chainstays and maintaining the associated performance benefits. The frame also features a 12mm bolt through rear axle with an expanding wedge design that eliminates the chance of loosening during riding. This axle screws into a custom tapered insert within the dropout for a secure and reliable fit.

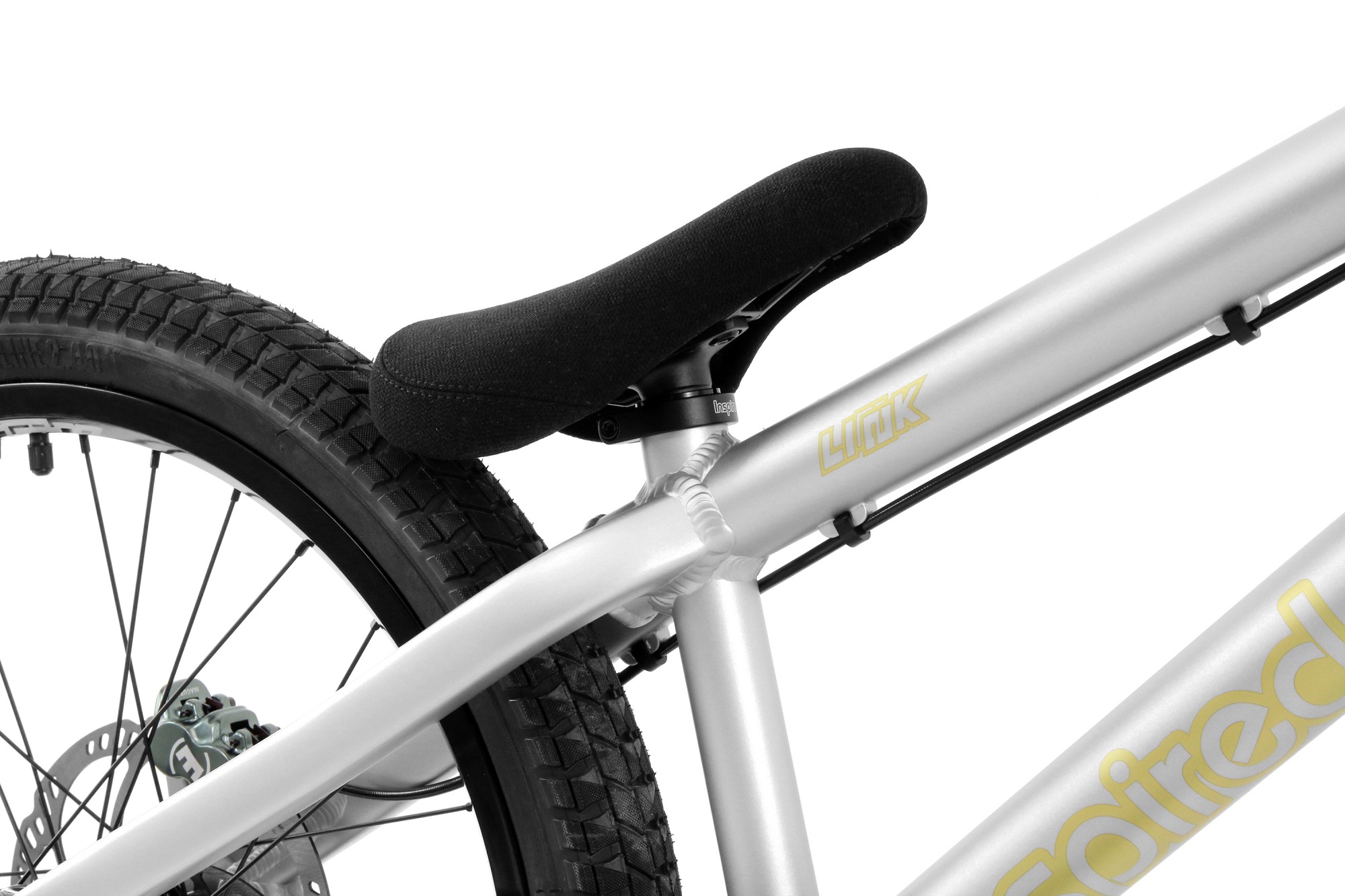

To maintain the clean look of the dropouts, the rear of the Link Team uses a low-profile integrated tensioner mount (along with the latest Inspired Team sprung chain tensioner), and custom profile seat and chain stay tubing to give the best possible clearance while maintaining strength.

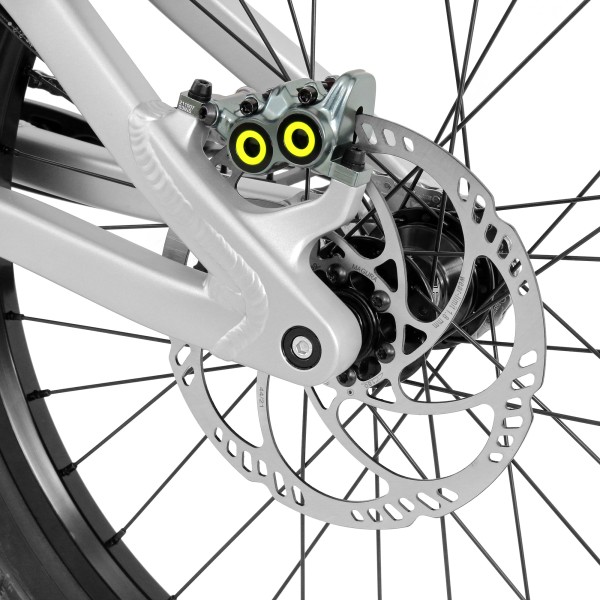

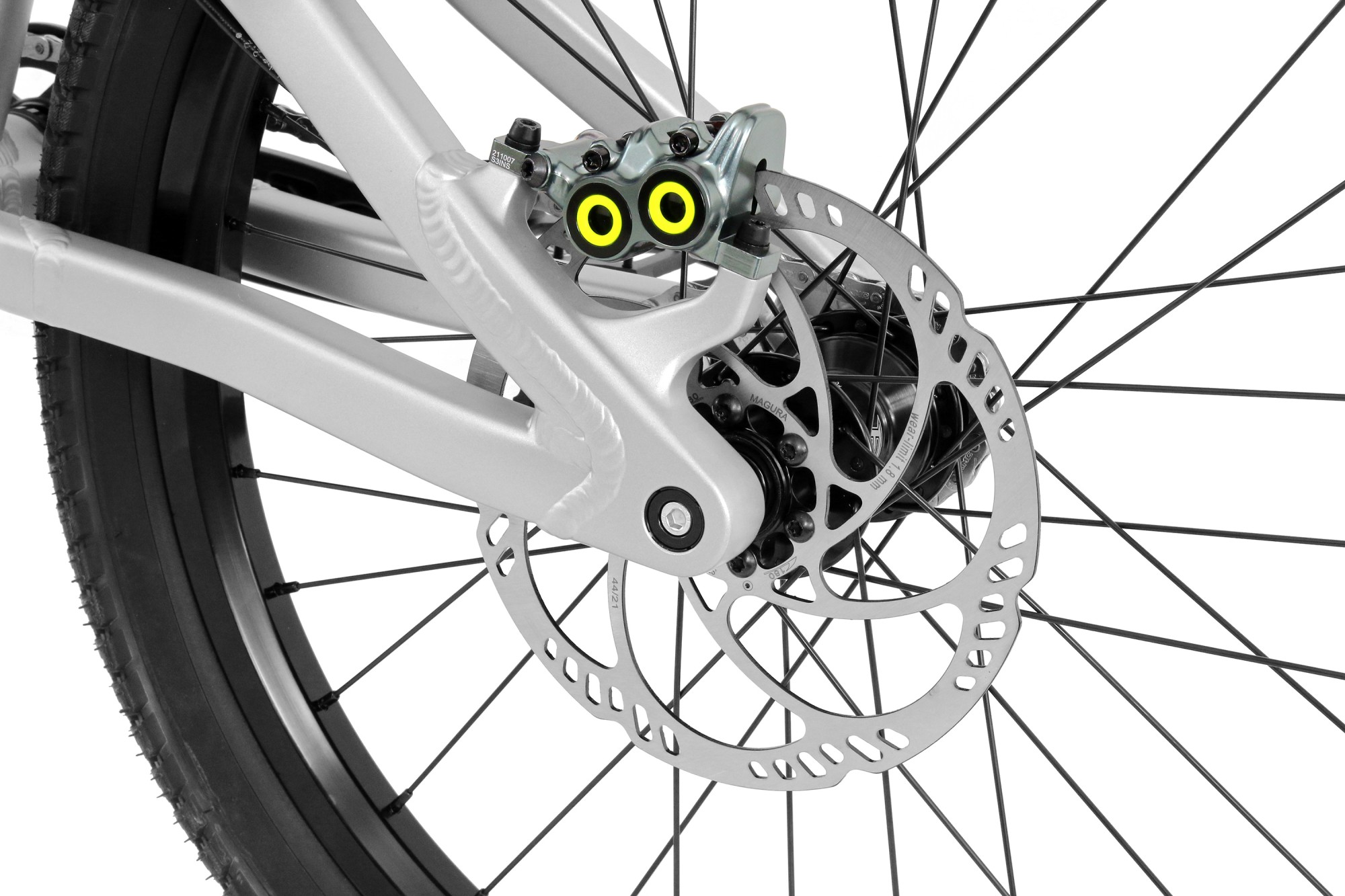

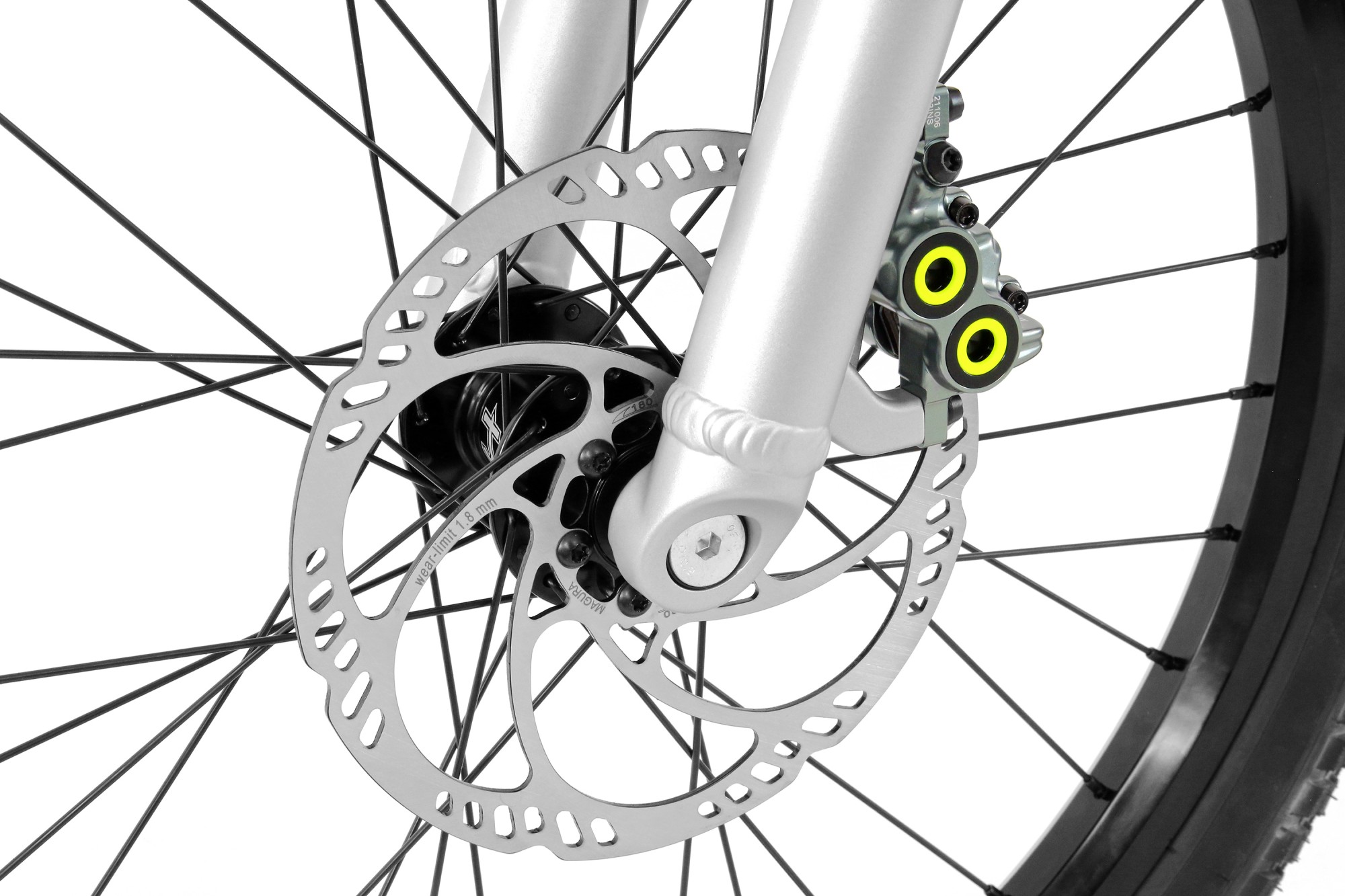

The frame and fork feature reinforced Post Mount disc brake mounts (maximum rotor size 185mm) thereby removing the need for additional brake caliper adaptors. The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength.

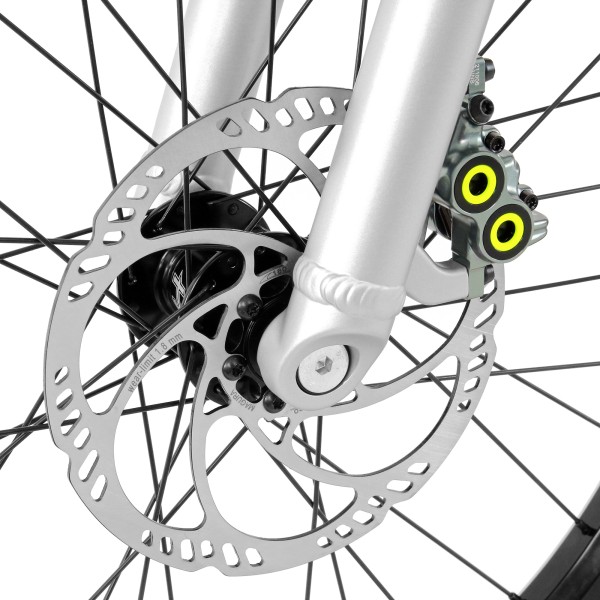

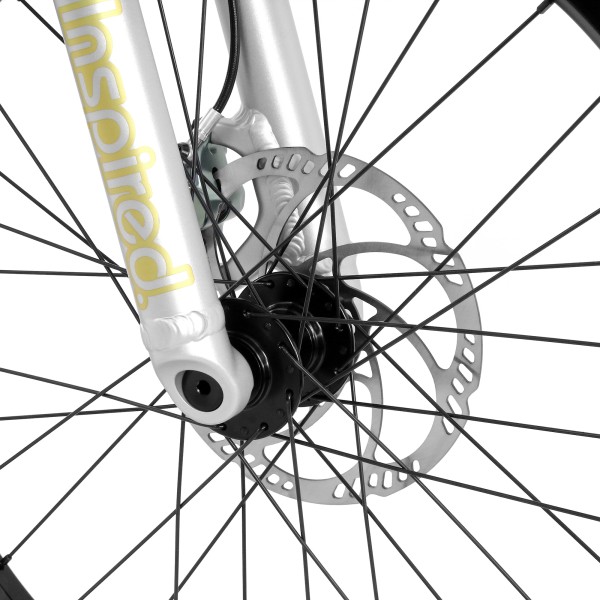

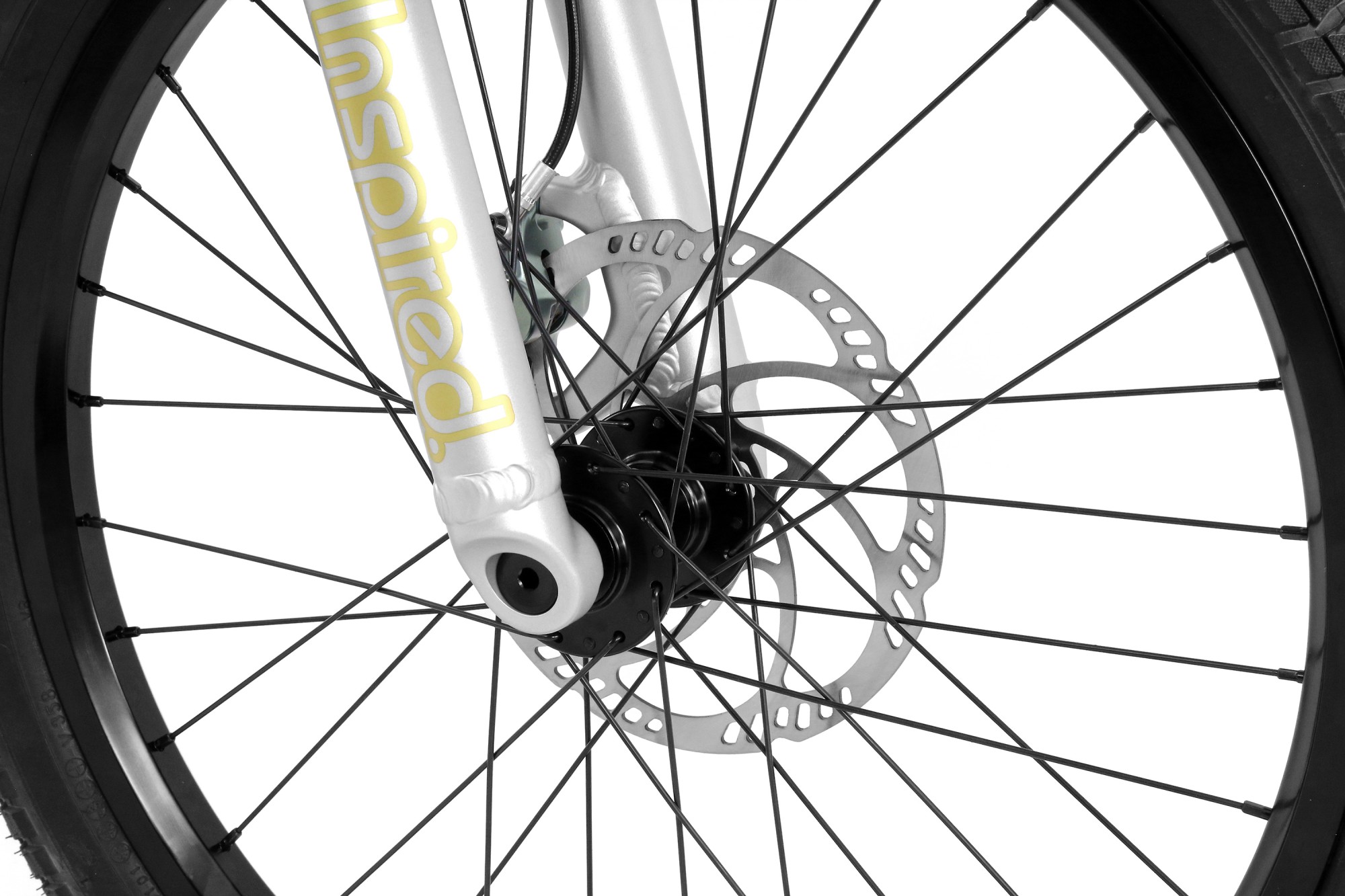

The Link fork features the same tapered steerer and innovative crown construction found on the Fourplay fork. The 15mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way. The custom screw-in top cap allows for easy steerer tube routing for the front brake hose.

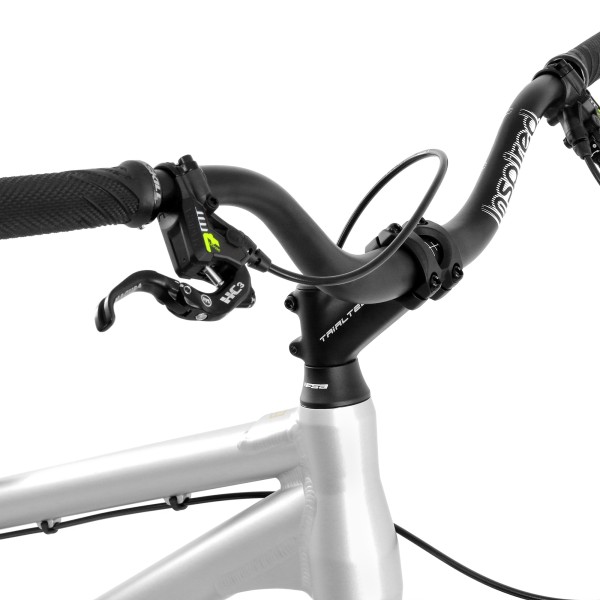

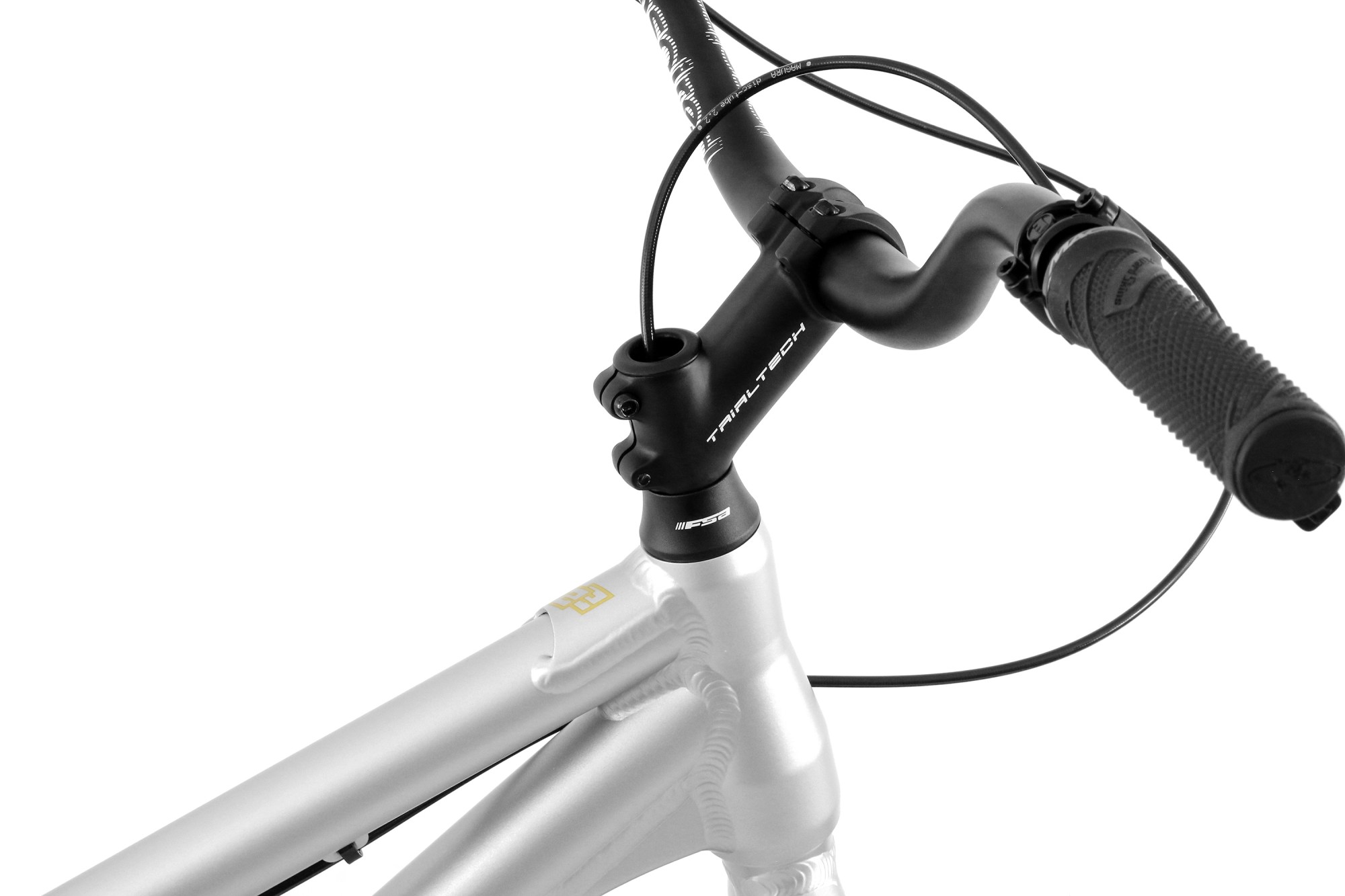

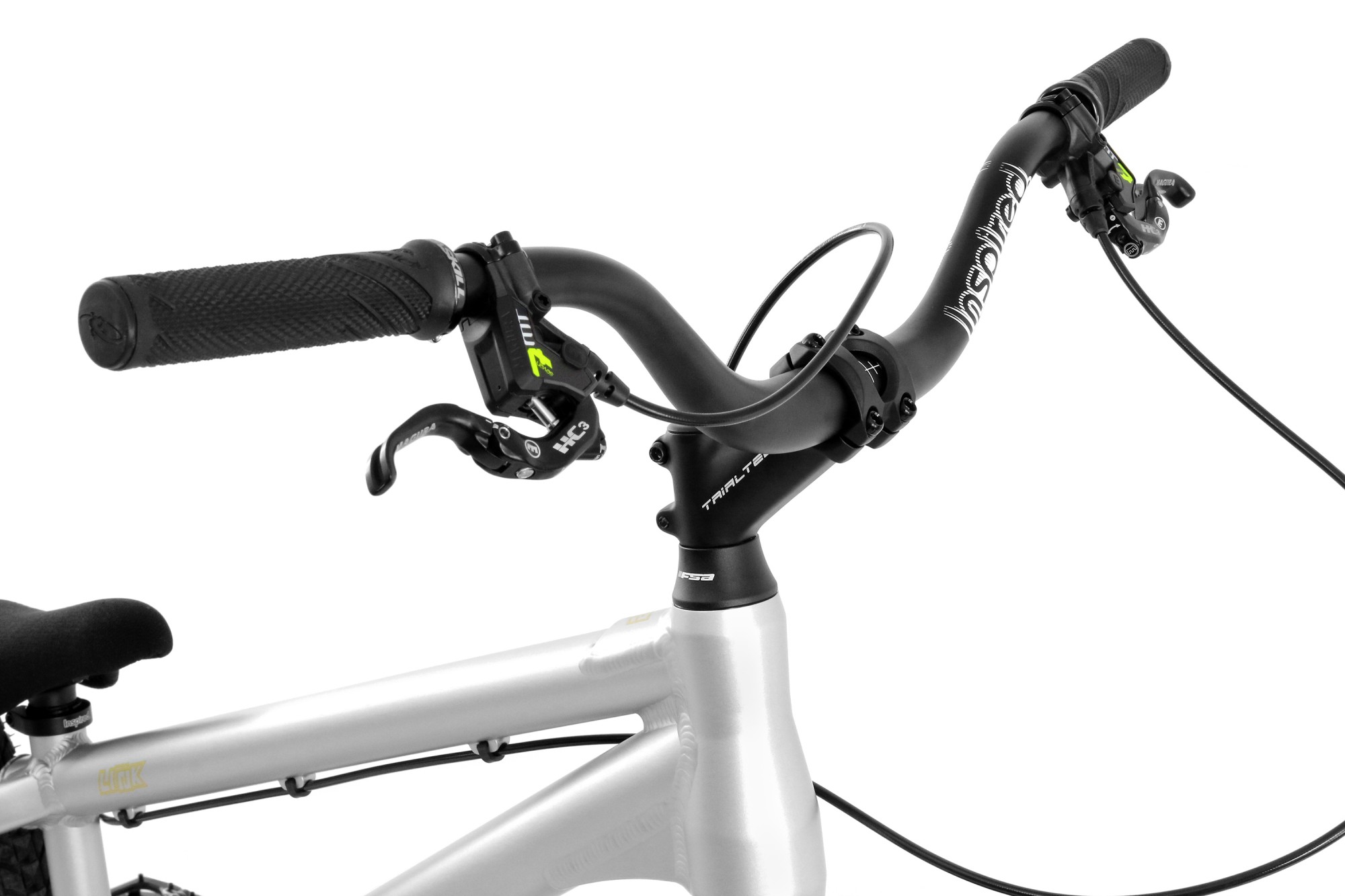

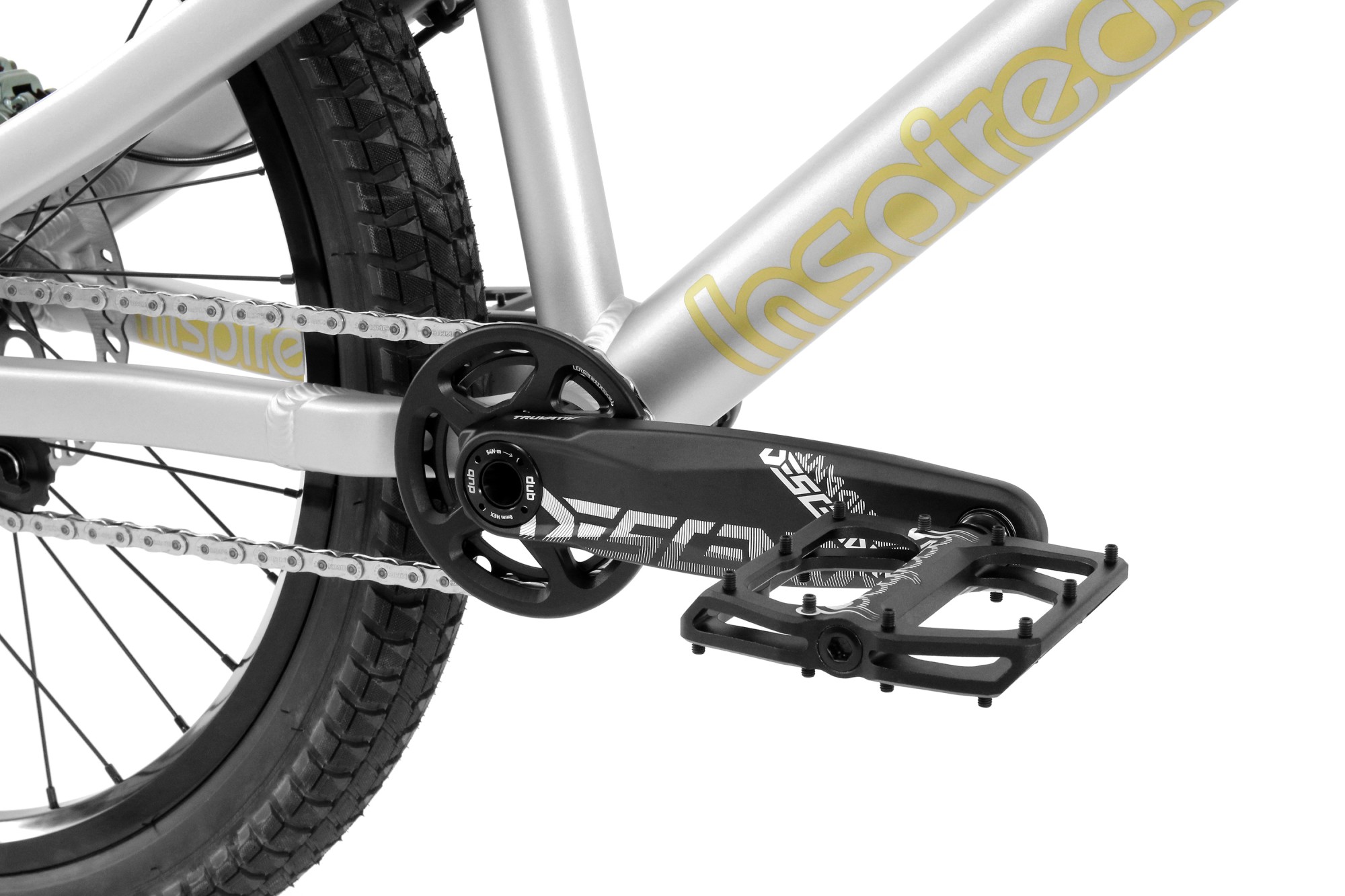

Using components from some of the world’s leading manufacturer’s results in a bike that is capable of performing at the very highest level of street riding. Steering is handled by a Trialtech Sport forged stem, Inspired Team riser handlebars and Lizard Skins MacAskill lock-on grips. Drivetrain components are Truvativ Descendant crankset with custom direct mount sprocket/bashring, super grippy Inspired Team V3 platform pedals, KMC chain and a new Inspired Team sprung chain tensioner. Magura MT7 HC3 disc brakes front and rear offer excellent braking power in all weather conditions and improved control, helping riders to develop a smoother and more accurate style. The wheels are built using top quality Hope Pro 4 hubs and Inspired Link 22" rims, fitted with grippy S&M Mainline 2.4" tyres.

Also available with Hope Tech 4 - Trial Zone brakes, Hope Evo crankset or Cane Creek eeWings Titanium Crankset*.

Available in Satin Silver with Gold graphics.

Suggested height: 1.35m/4ft 6in - 1.73m/5ft 8in

THROUGH AXLES
15mm front and 12mm rear through axles for maximum stiffness

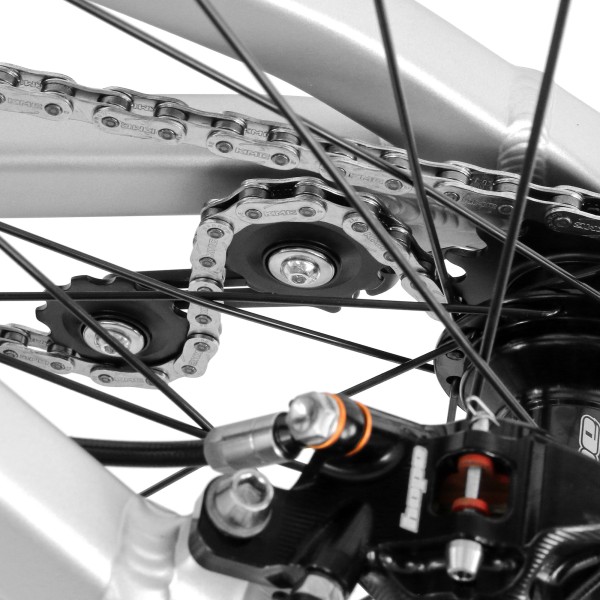

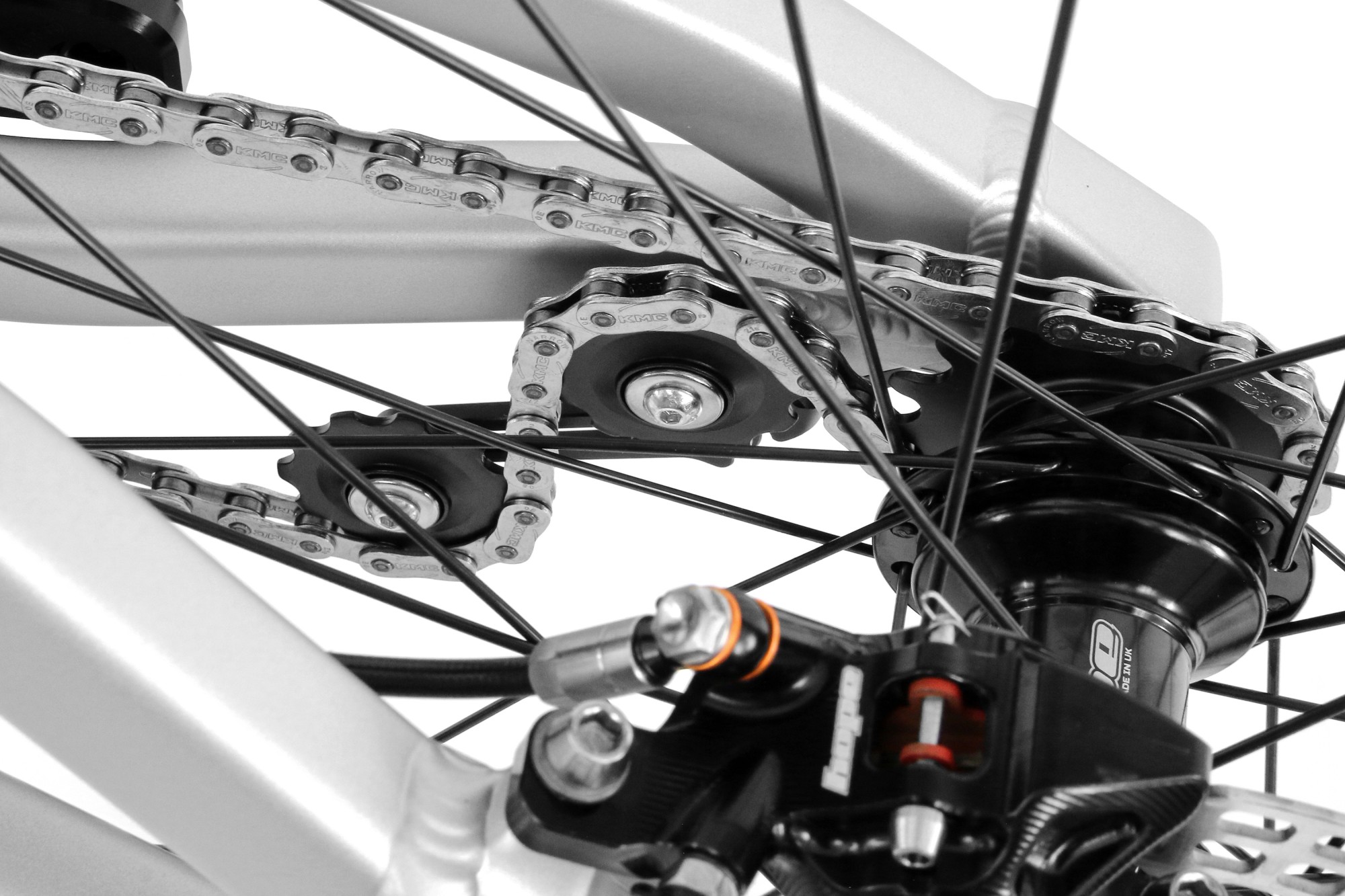

UPDATED TENSIONER
Uses the latest Inspired Team tensioner for a responsive feel

TOP CRANKSETS
Truvativ Descendent 7K, Hope Evo or Cane Creek eeWings Crankset options

TEAM PARTS KIT
Inspired Team parts kit including Team Risers and Team V3 pedals

BRAKE OPTIONS
Magura MT7 HC3 or Hope Tech 4 Trial Zone brakes

Technical Data

Frame

- Frame: Inspired Link 22", 6066-T6 aluminium alloy, Satin Silver

Compatibility
- Through axle: 135 x 12mm
- Bottom bracket: 73mm BSA
- Headset type: Tapered Integrated, 1 1/8" Upper, 1.5" Lower
- Seat tube diameter: 27.2mm
- Brake mount: 180 Post Mount

Fork

- Inspired Link, Tapered Steerer Tube, 15mm Bolt Through Axle, Satin Silver

Compatibility
- Steerer tube: 1 1/8" to 1.5" tapered
- Through axle: 100 x 15mm
- Brake mount: 180 Post Mount

Brakes

- Brakes: Magura MT7 HC3, 180mm Storm HC Rotors

Optional Upgrade*

- NEW Hope Tech 4 Trial Zone, 180mm Trial Zone V2 Rotors

Drivetrain

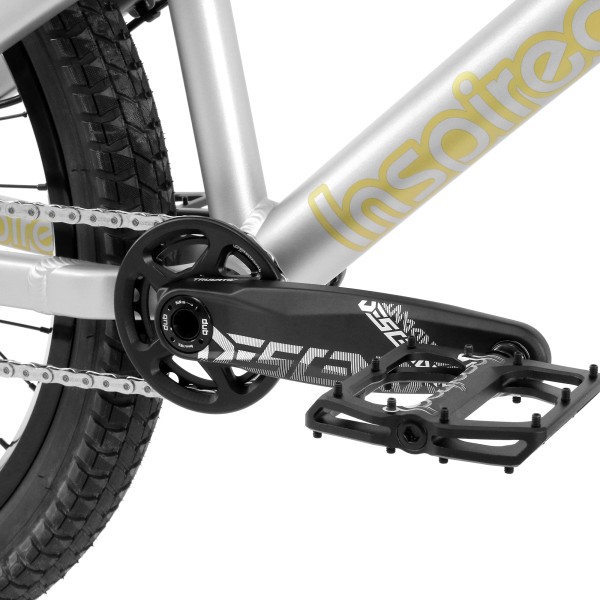

- Cranks: Truvativ Descendant 7K DUB, 175mm, Satin Black
- Chainring: Inspired Truvativ Integrated V2 Bashring/Chainring, 22T
- Bottom Bracket: SRAM DUB

Optional Upgrade*

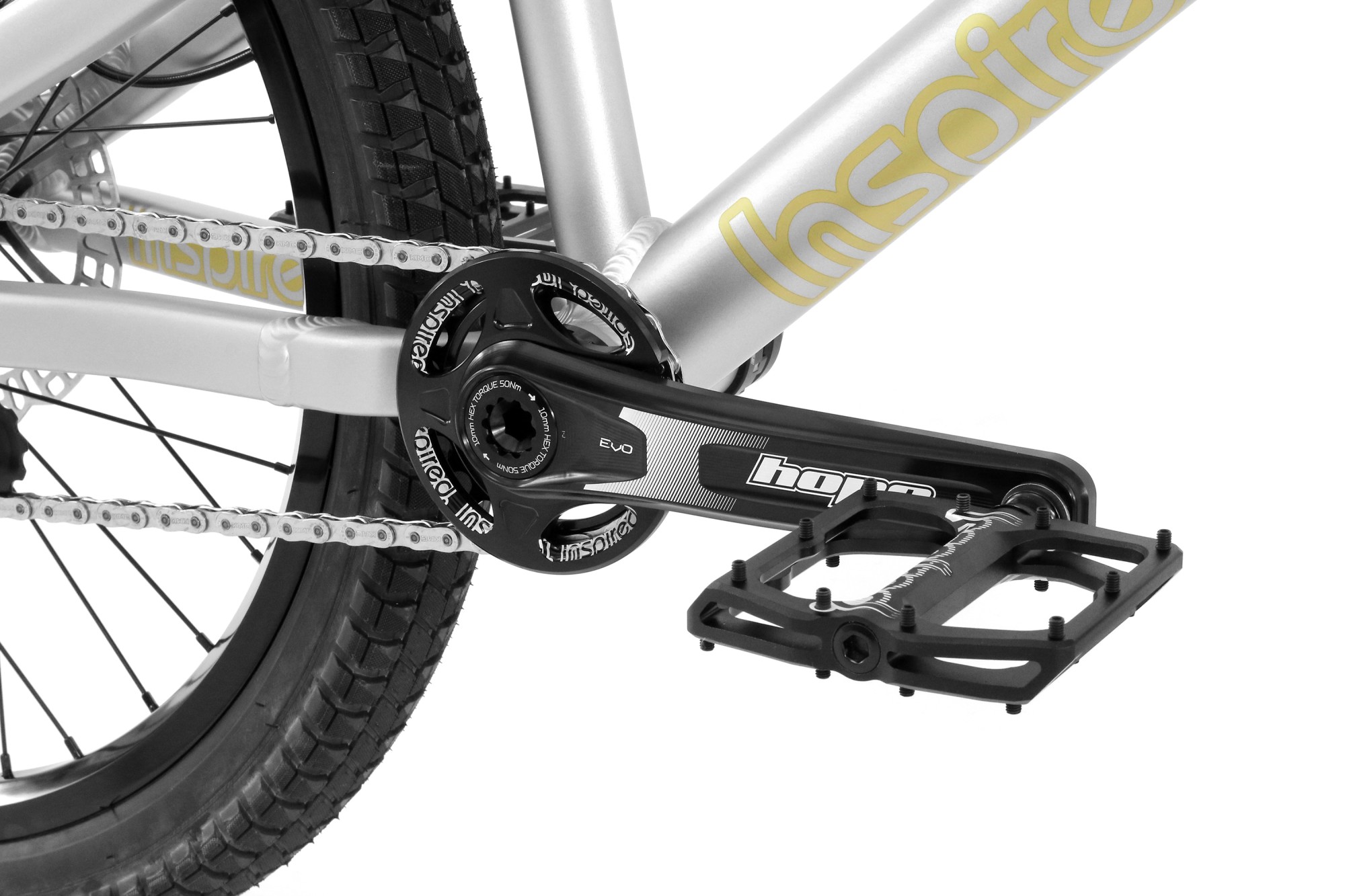

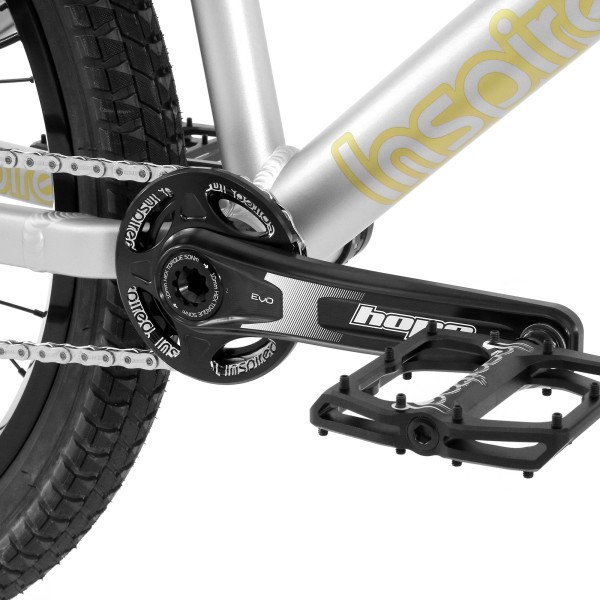

- Cranks: Hope Evo Crankset, 175mm, Black
- Chainring: Inspired Hope Integrated Bashring/Chainring, 22T
- Bottom Bracket: Hope Stainless Steel

Optional Upgrade*
- Cranks: Cane Creek eeWings Titanium Crankset, 175mm
- Chainring: Inspired eeWings Integrated Bashring/Chainring, 22T, built-in axle spacer, individually custom numbered
- Bottom Bracket: Cane Creek Hellbender 70, Black

- Chain: KMC Z1eHX-N
- Rear Sprocket: Trialtech Sport Splined, 16T, Black
- Pedals: Inspired Team V3 Platform, Satin Black

Wheels

- Front Hub: Hope Pro 4, 20mm bolt through axle, 32h, 110mm Non-Boost, Black
- Rear Hub: Hope Pro 4 Trials, 12mm bolt through axle, 32h, 135mm, Black
- Chain Tensioner: Inspired Team, Sprung, Black
- Rims: Inspired Link, 22", Black
- Tyres: S&M Mainline 22" x 2.4"

Steering

- Headset: FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black

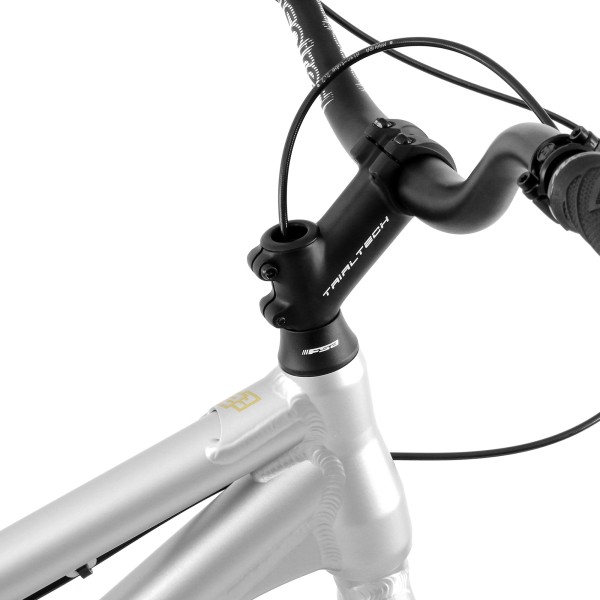

- Stem: Trialtech Sport, 90mm x 35˚, Satin Black
- Grips: Lizard Skins 'MacAskill' Lock-On, Black
- Handlebars: Inspired Team 7075 Riser, Satin Black

Geometry

- Wheelbase: 920mm
- Chainstay: 337mm
- BB Height: +15mm
- Head Angle: 74˚

Weight
- 10.54kg (including pedals and Magura MT4 brakes)

* Please note: Additional costs apply.
